Pramet SNMX 19-R110:T9335 6801238 Scarfing Insert
MODEL 6801238
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$30.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
With chipbreaker -no designation
Coating
T9335
Coating property (CTP)
1
Cooling effect
Positive effect on tool life - cooling is recommended

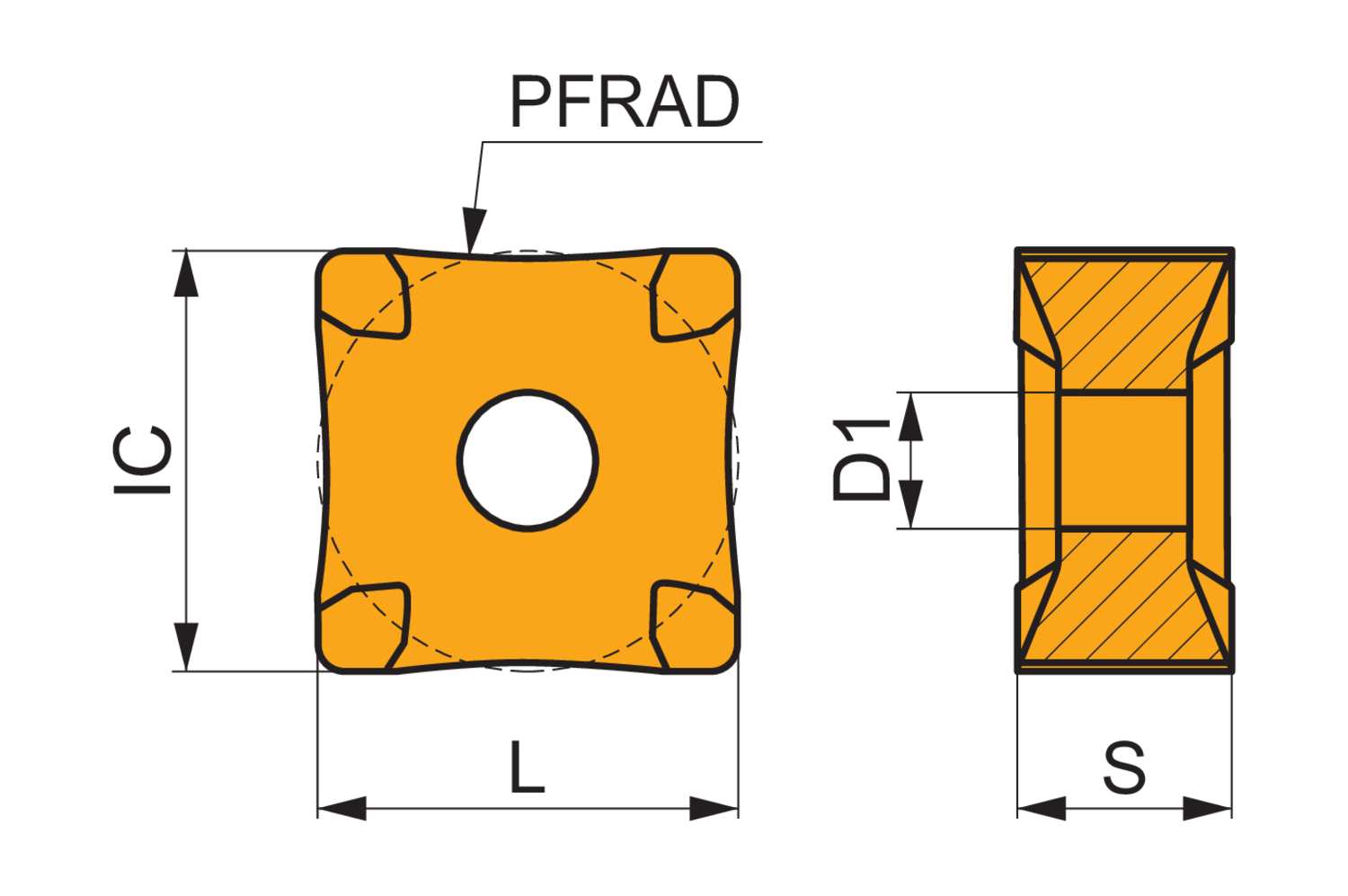

Cutting edge length - inch (L)
0.75
Cutting edge length - millimeter (L)
19.05
Fixing hole diameter - inch (D1)
7.95
Fixing hole diameter - millimeter (D1)
7.95
Inscribed circle diameter - inch (IC)
0.75
Inscribed circle diameter - millimeter (IC)
19.05
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.321
Insert thickness - millimeter (S)
8.15
OutsideDiameterWorkpiece_MAX_MET_NUM
206
OutsideDiameterWorkpiece_MIN_MET_NUM
163
Profile radius - millimeter (PRFRAD)
110
Double-sided scarfing insert, square with a main cutting edge length of 19.05mm, 8.15mm thick and a working radius of 110mm for tube diameters from 127 to 160mm, T9335 MT-CVD coated functionally graded WC-Co carbide within ISO-grade ranges P20-P45/M15-M40 and S15-S25 for deburring the outside of steel, stainless-steel and super-alloy tubes and pipes
