Pramet SPUB-63-F:6640 7817027 Scarfing Insert
MODEL 7817027
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$17.41 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
6640
Coating property (CTP)
1

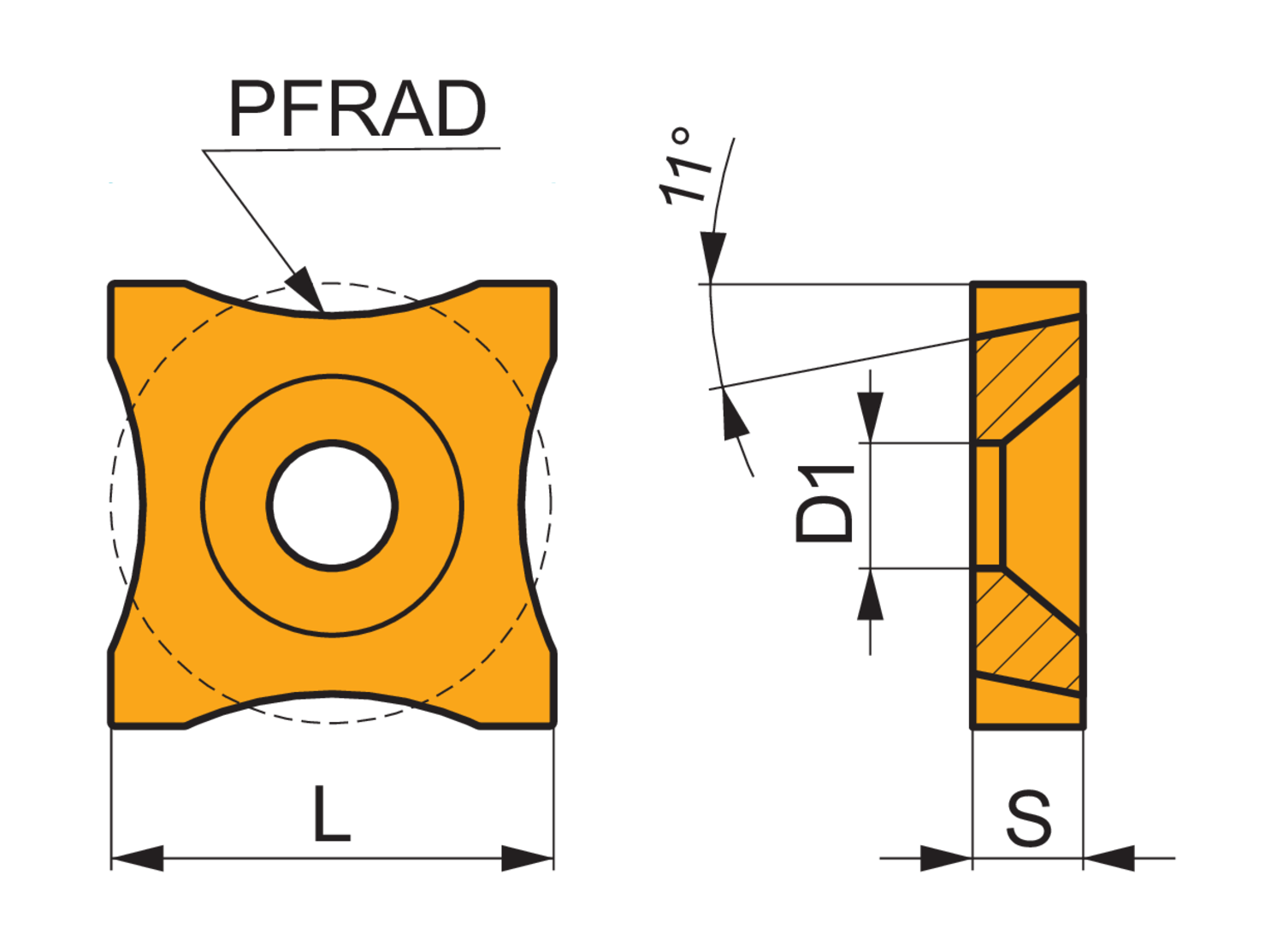

Cutting edge length - inch (L)
0.75
Cutting edge length - millimeter (L)
19.05
Fixing hole diameter - inch (D1)
5.15
Inscribed circle diameter - inch (IC)
0.75
Inscribed circle diameter - millimeter (IC)
19.05
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.75
OutsideDiameterWorkpiece_MAX_MET_NUM
57
OutsideDiameterWorkpiece_MIN_MET_NUM
45
Profile radius - inch (PRFRAD)
1.181
Profile radius - millimeter (PRFRAD)
30
Single-sided scarfing insert, square with a main cutting edge length of 19.05mm, 4.75mm thick and a working radius of 30mm for tube diameters from 45 to 57mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes
