Image for Illustration purposes only. Actual product may vary
Dormer A012N73 5966735 118° Jobber Drill ANSI N73
MODEL 5966735
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$2.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Coating process
PVD
Coating property (CTP)
1
Connection (shank) description
Cylindrical shank
Cutting diameter (wire gauge size) (DC)
N73
Cutting diameter - inch (DC)
0.024
Cutting diameter - millimeter (DC)
0.61
Drill Length
Jobber
EDP number
574188
Hand (Cutting direction)
Right

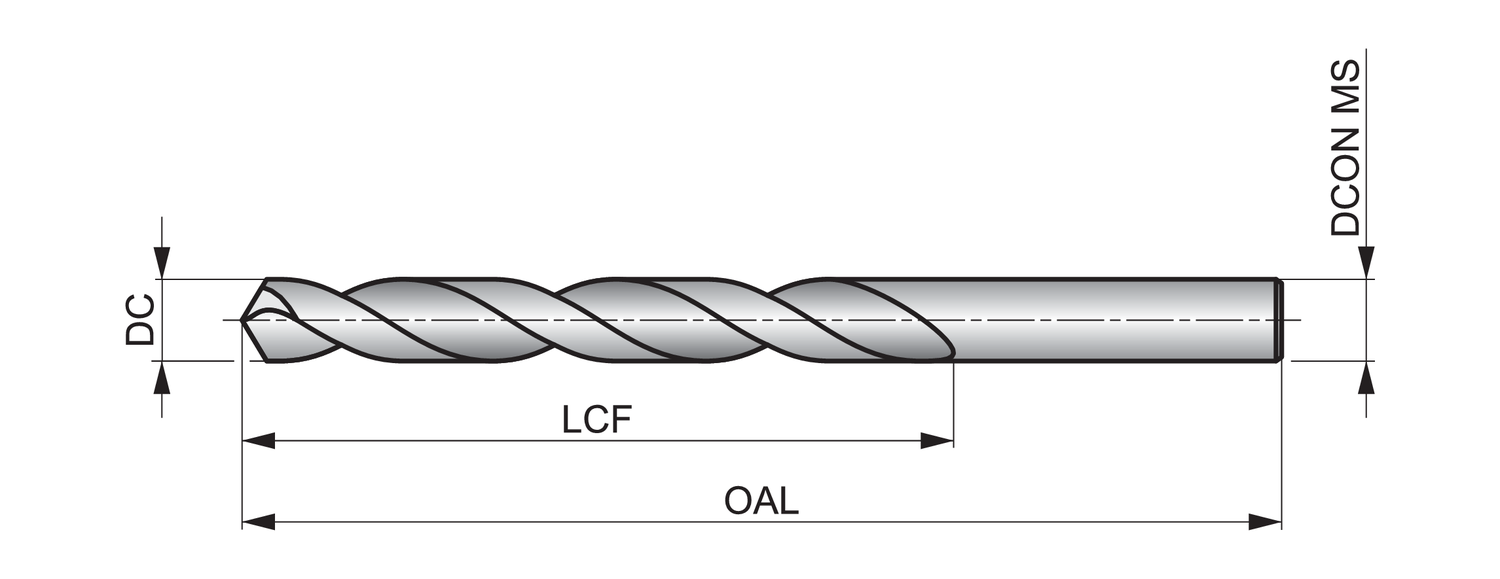

Length chip flute - fractional inch (LCF)
5/16
Length chip flute - inch (LCF)
0.3125
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5966735
Ordering code ANSI
A012N73
Overall length - fractional inch (OAL)
1.1/8
Overall length - millimeter (OAL)
28.58
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
4
The A012 Jobber drill bits are part of the range of drills from Dormer.
They are suitable for both hand held and machine drilling and have a specially designed 118 degree split point which helps to self-center the drill when drilling by hand.
This stops the drill point from wandering over the surface of the workpiece, and you also get a more accurate sized hole with a better finish.
The tip is coated with titanium nitride, which increases the life of the drill and gives better performance when drilling harder materials.
Suitable for both machine and hand held use, A012 drills are manufactured from premium High Speed steel and can be used to drill many materials including steels, aluminium and stainless steels, with a great result every time.
*Note: 118 degree split point and TiN coated tip not available below 2mm
