Dormer Pramet A12212.0X90 (MID 5968644) is a stub length spotting drill per DIN 1897. It features a 12.00mm cutting diameter with h8 tolerance, 90° point angle, and is made from High Speed Steel (HSS). Suitable for steel and non-ferrous materials.
MODEL 5968644
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$47.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 90°/120°
Basic Standard
DIN 1897
Coating
Bright

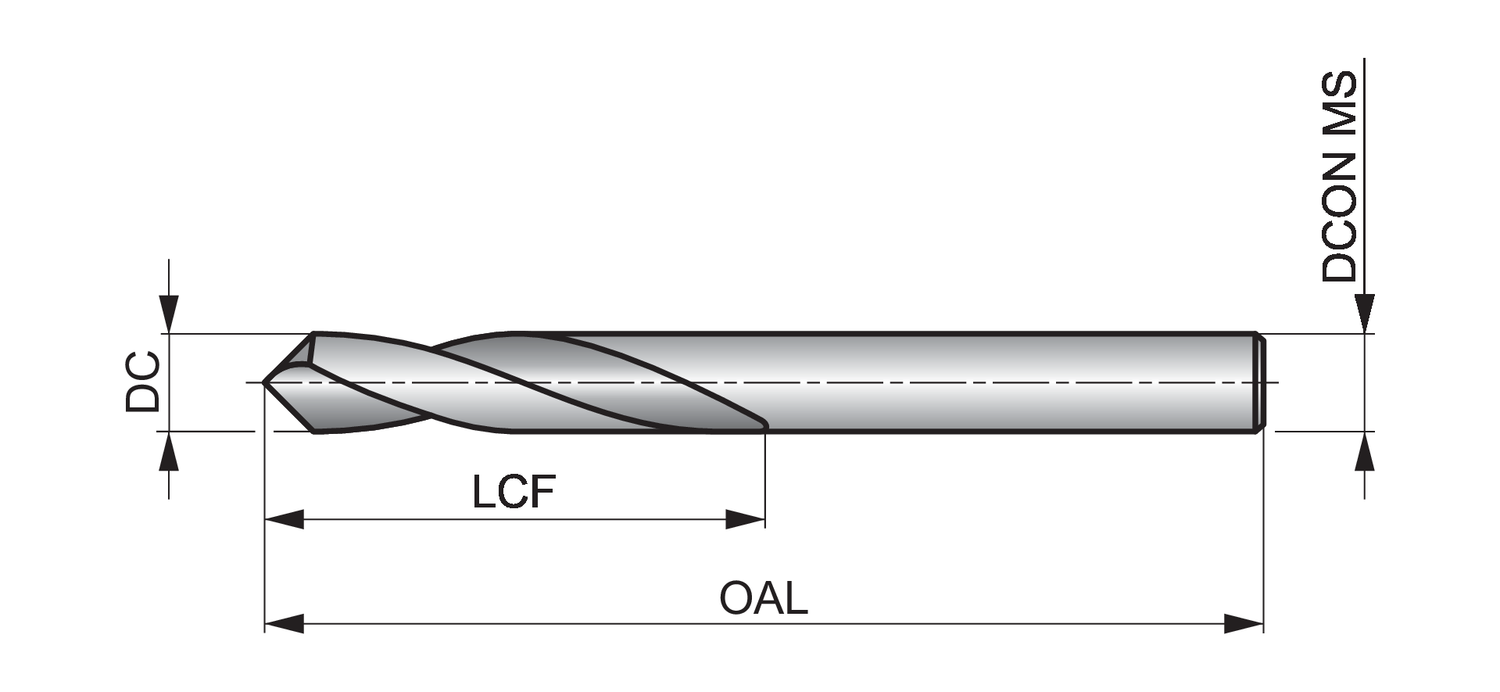

Connection diameter - millimeter (DCON MS)
12
Cutting diameter - millimeter (DC)
12
Cutting Diameter Inch Decimal
0.4724
Cutting diameter tolerance class (TCDC)
h8
EDP number
19184
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.5748
Length chip flute - millimeter (LCF)
40
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5968644
Ordering code ANSI
A12212.0X90
Overall length - inch (OAL)
4.0157
Overall length - millimeter (OAL)
102
Point Angle (SIG)
90
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
The A122 is a metric spotting drill so you would use it to start a hole in the material to be drilled to ensure the start point is accurate.
You may also use it to provide a countersink start to the hole by choosing a larger diameter than the hole you need and just drilling down to the countersink depth with this drill and completing the hole with a smaller diameter drill.
The A122 drill comes with either a 90 degree or 120 degree point angle, giving you two options of countersink.
Manufactured from High Speed steel, the A122 is suitable for drilling in many materials including steel, stainless steels and aluminium.
The drill comes with a steam oxide finish to stop workpiece material from sticking to the cutting edge of the drill, giving you a better hole finish and more accurate diameter
