Dormer A210.8X3.15 5969328 118° Center Drill 0.80 mm x 3.15 mm
MODEL 5969328
$8.64 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Radius Countersink Centre Drill
Basic Standard
DIN 333R
Coating
Bright

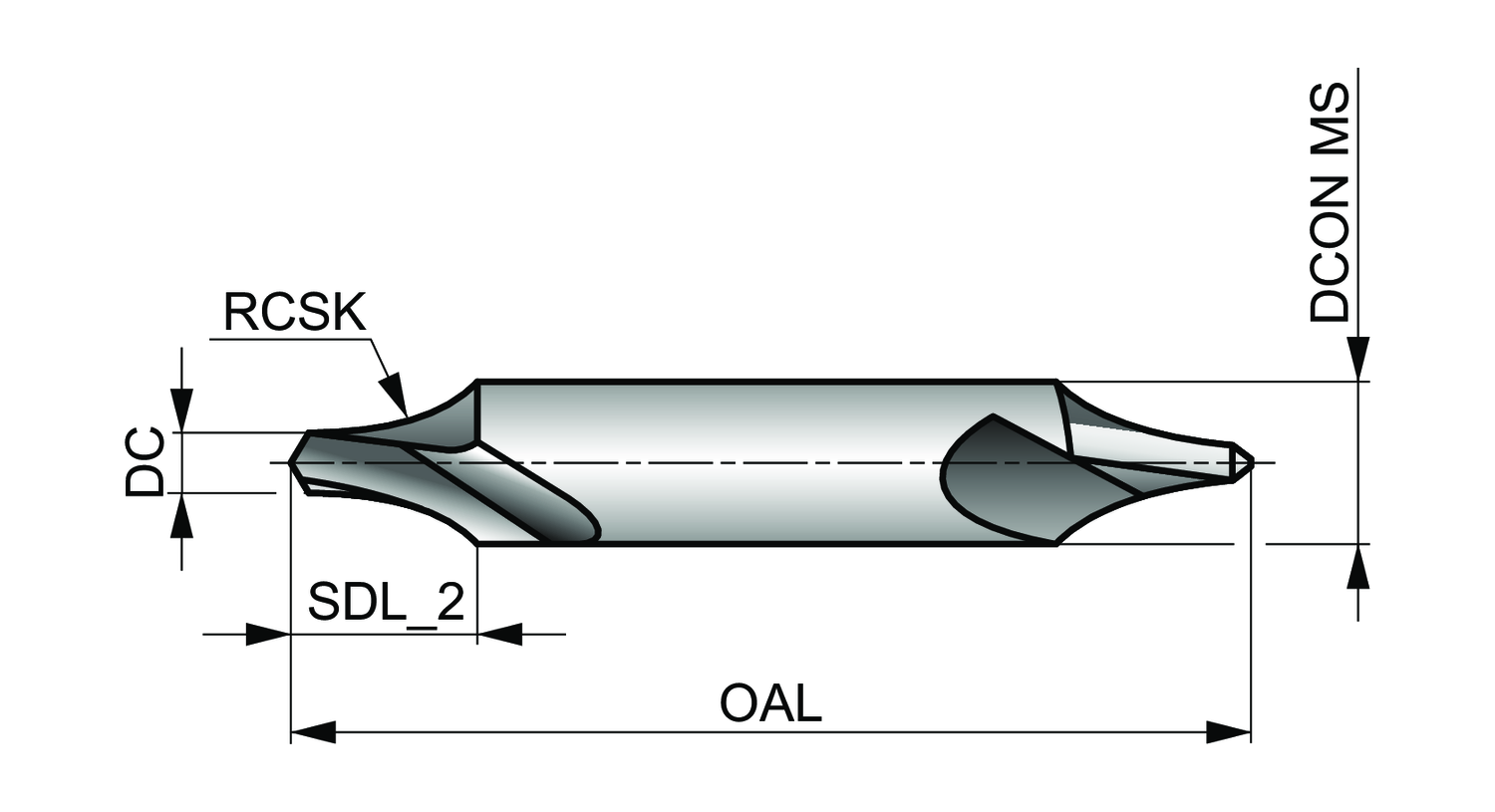

Connection diameter - inch (DCON MS)
0.124
Connection diameter - millimeter (DCON MS)
3.15
Cutting diameter - inch (DC)
0.0315
Cutting diameter - millimeter (DC)
0.8
EDP number
31049
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5969328
Ordering code ANSI
A210.8X3.15
Overall length - inch (OAL)
0.9843
Overall length - millimeter (OAL)
25
Point Angle (SIG)
118
Shank
Cylindrical shank
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° curved conical form, double ended and cylindrical body, 0.80mm drill diameter, a body diameter of 3.15mm and an overall length of 25mm, according to DIN 333R standard to produce standardized centre holes according DIN 332 part 1 form R, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
