Dormer R4673.4 7625105 Force M Carbide Drill TiNAl 3.40 mm
MODEL 7625105
$127.68 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 140°
Basic Standard
DIN 6537 K
Coating
TiAlN

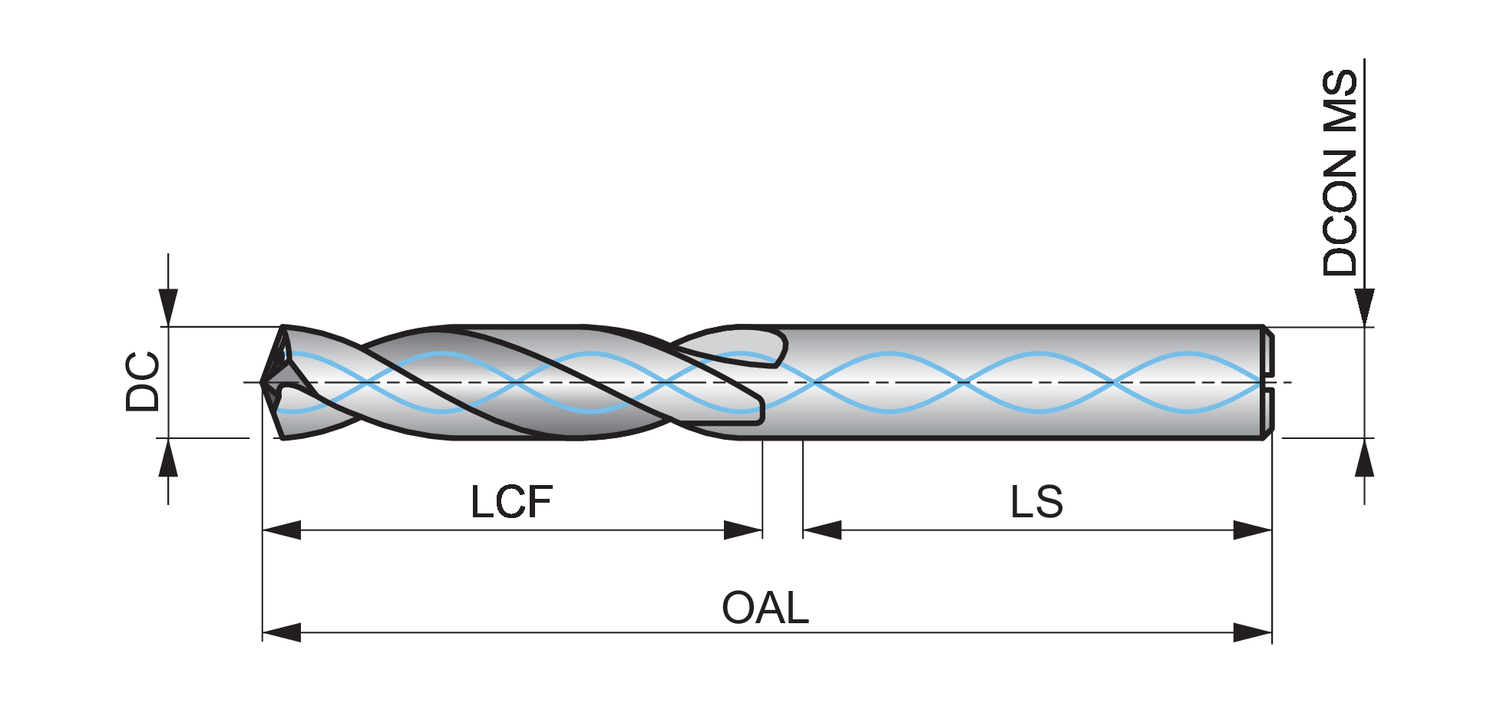

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cooling (CSP)
1
Cutting diameter - inch (DC)
0.1339
Cutting diameter - millimeter (DC)
3.4
Cutting diameter tolerance class (TCDC)
m7
EDP number
7625105
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
0.7874
Length chip flute - millimeter (LCF)
20
Material application
M - Stainless steel, S - High-temperature alloys
Material code (BMC)
HM
MID number
7625105
Ordering code ANSI
R4673.4
Overall length - inch (OAL)
2.4409
Overall length - millimeter (OAL)
62
Point Angle (SIG)
140
Shank
Cylindrical shank DIN 6535 HA
Shank length - millimeter (LS)
36
Spiral form
Continuously Thinned Web
Usable length (ULDR)
3
R467 Force-M solid carbide drills from Dormer have a special CTW flute design (Continuously Thinned Web) giving the drills extra strength.
Together with the coolant feed, this allows the drills to operate at higher cutting speeds and feeds whilst still capable of producing a high quality and accurate hole (H9 hole tolerance). Manufactured from premium carbide, the drills are specifically designed for drilling stainless steels and other heat resistant super alloys, whilst the titanium aluminium nitride coating ensures great performance when drilling harder materials and extends the tool life.
As a final touch, R467 carbide drills have a 140 degree, 4-facet split point which helps with self-centering and reduces the force needed to drill the workpiece.
#
