Dormer R5101/8 5980502 CDX Jobber Drill DIN 338 1/8 inch
MODEL 5980502
$80.30 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 338
Coating
TiN
Coating process
PVD
Coating property (CTP)
1
Connection (shank) description
Cylindrical shank

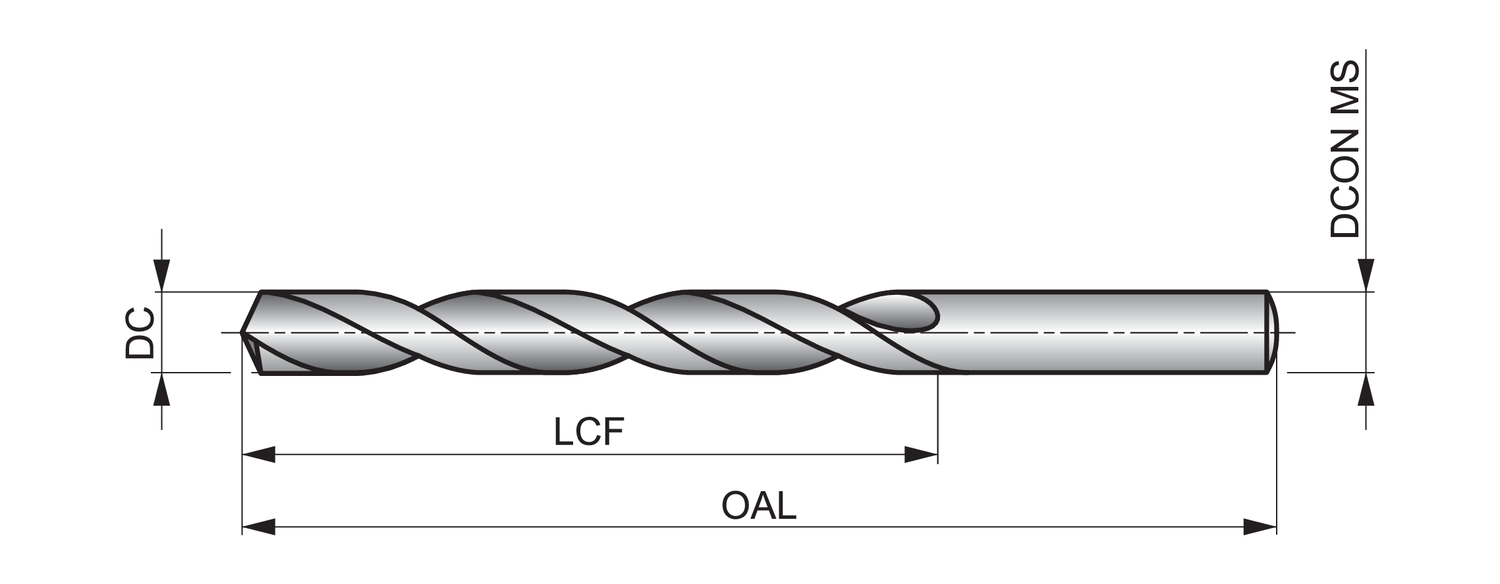

Connection diameter - millimeter (DCON MS)
3.18
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.1252
Cutting diameter - millimeter (DC)
3.18
Cutting diameter tolerance class (TCDC)
h7
Drill Length
Jobber
EDP number
380802
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.4173
Length chip flute - millimeter (LCF)
36
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5980502
Ordering code ANSI
R5101/8
Overall length - inch (OAL)
2.5591
Overall length - millimeter (OAL)
65
Point Angle (SIG)
130
Spiral form
Standard Spiral
Usable length (ULDR)
4
R510 ADX jobber drills from Dormer are manufactured from premium carbide and can be used for drilling a number of materials including steels, cast iron and aluminium.
With a 130 degree point to help with self-centering and reduce the push force, the drills are capable of producing high quality and accurate holes (H8 hole tolerance) even at high speeds and feeds.
With a titanium nitride coating to extend the life of the drill and improve performance when drilling harder materials, R510 carbide drills have a convex cutting edge which helps break chips for easier removal, allowing increased speeds and feeds
