Dormer B18018.0 5986638 NC - Reamer for High Precision Chucks 8FL 18.00 mm
MODEL 5986638
$117.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 212

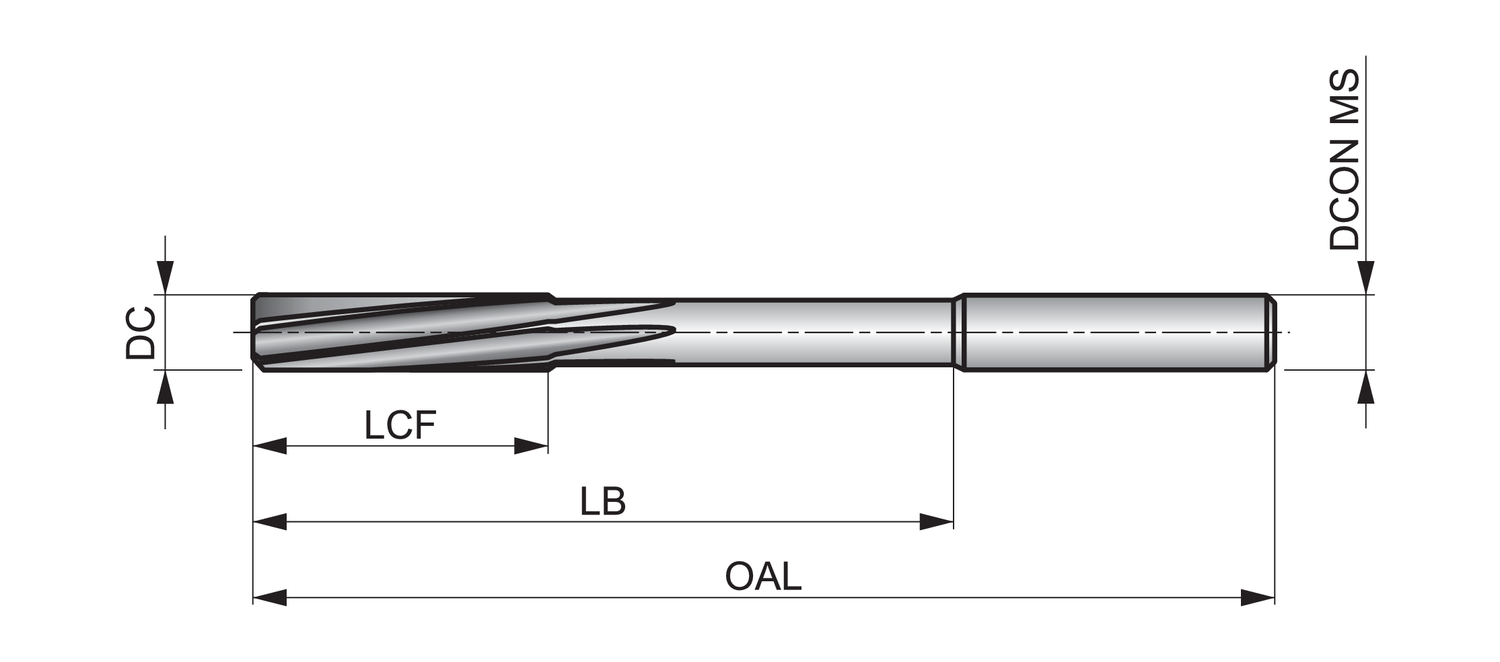

Body length - millimeter (LB)
130
Coating
Bright
Connection diameter - inch (DCON MS)
0.5512
Connection diameter - millimeter (DCON MS)
14
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.7087
Cutting diameter - millimeter (DC)
18
EDP number
420294
Flute count (NOF)
8
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
56
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986638
Ordering code ANSI
B18018.0
Overall length - inch (OAL)
7.1654
Overall length - millimeter (OAL)
182
Shank
Cylindrical shank DIN 6535 HA
Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 18.00mm with an overall length of 182mm, a flute length of 56mm and 130mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
