Dormer G10712.4 7147809 Countersink with hexagonal shank - 90° 3FL 12.40 mm
MODEL 7147809
$47.61 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DORMER
Coating
Bright

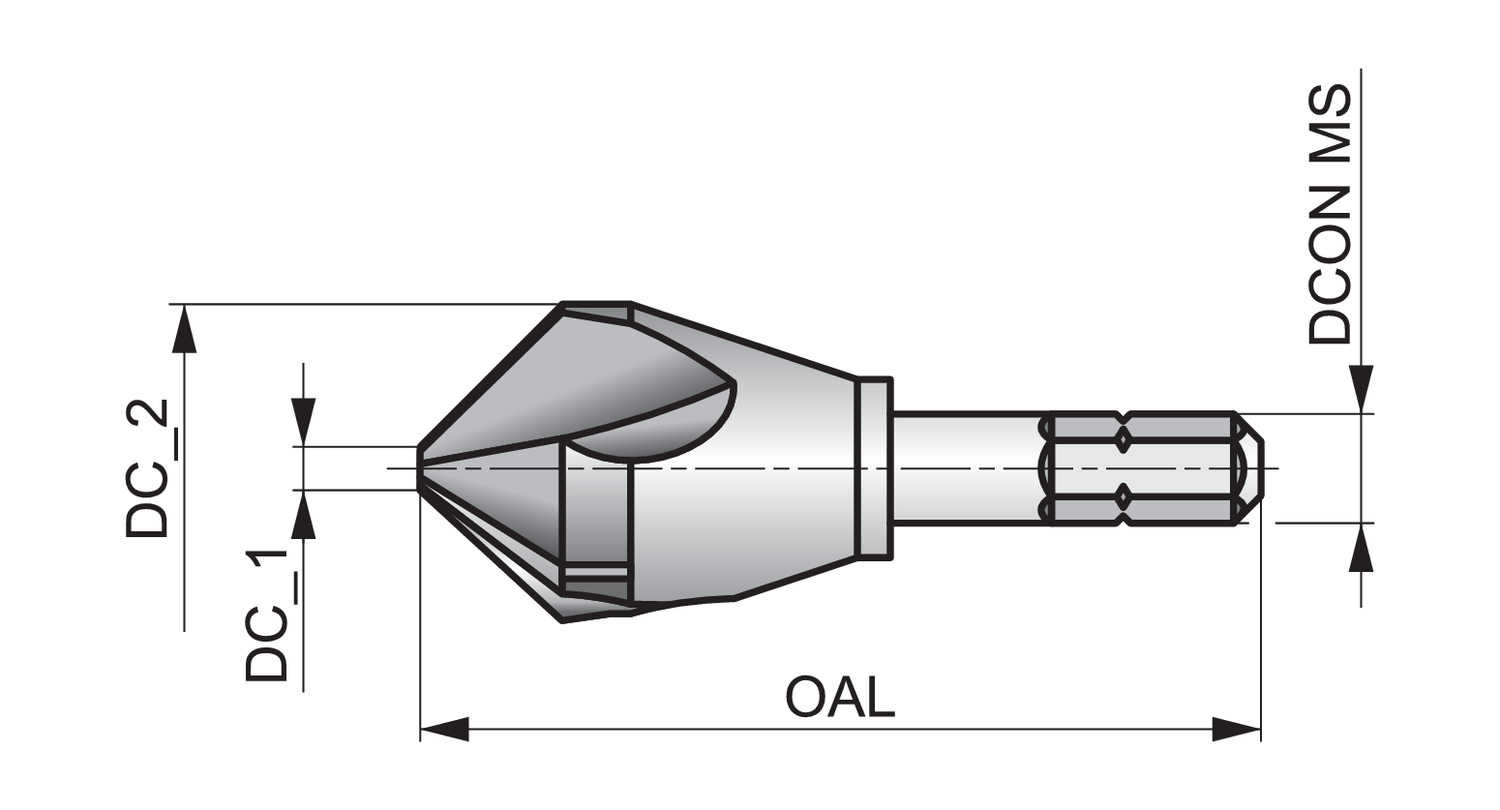

Connection diameter - fractional inch (DCON MS)
1/4''
Connection diameter - inch (DCON MS)
0.25
Connection diameter - millimeter (DCON MS)
6.35
Connection size code machine side (CZC MS)
M6
Cutting diameter step - millimeter
2.8
EDP number
47147809
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
7.4
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
7147809
Ordering code ANSI
G10712.4
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Point Angle (SIG)
90
Shank
Cylindrical shank with Hex
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 50mm and 1/4" hexagon drive, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, cobalt based HSS-E with standard bright finish for machining steel and cast steel, copper or copper alloys.
