Image for Illustration purposes only. Actual product may vary
Dormer G12511.0X5.0 5973134 Counterbore - 180° 3FL 11.00 mm x 5.0 mm
MODEL 5973134
$25.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Counterboring (for fasteners) 180°
Basic Standard
DIN 373
Coating
Bright

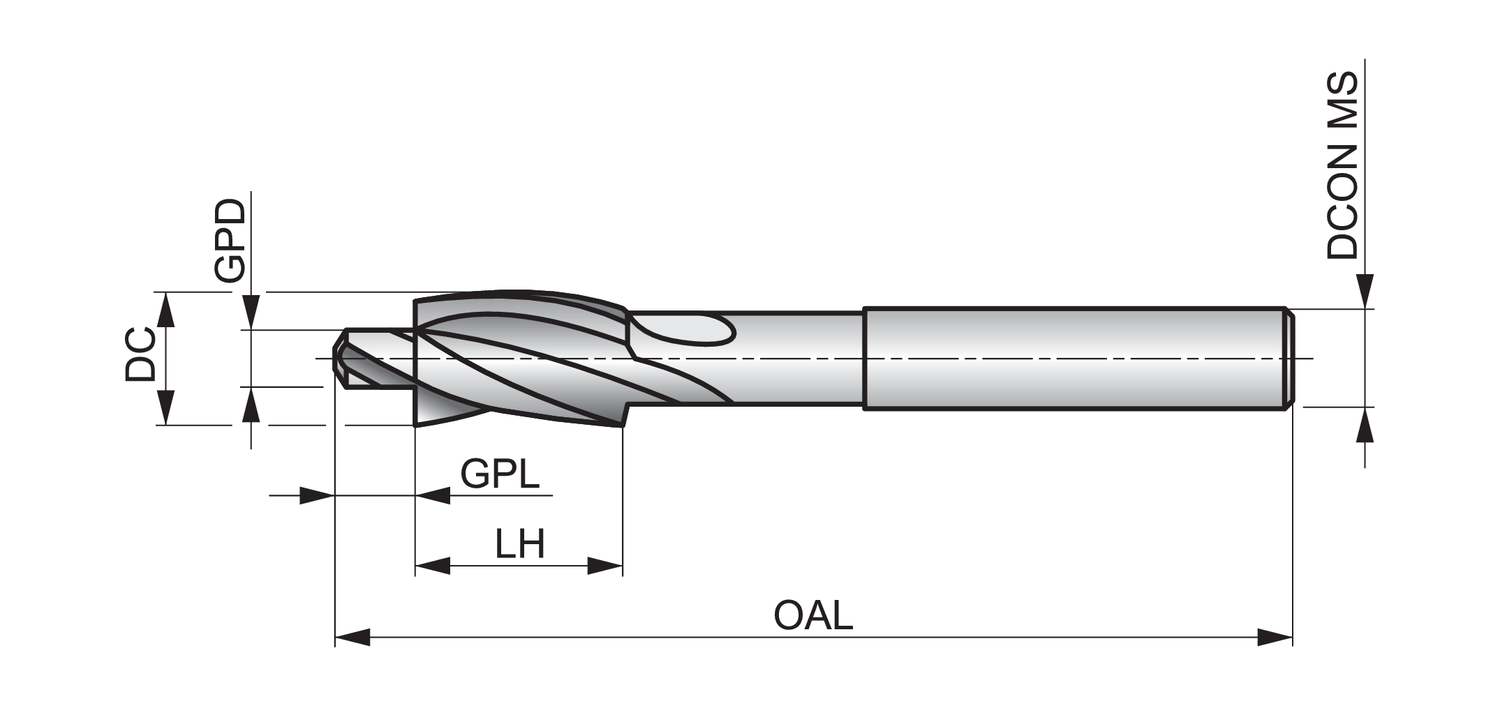

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h9
Connection size code machine side (CZC MS)
M 6 t
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
Cutting diameter tolerance class (TCDC)
z9
EDP number
107638
Flute count (NOF)
3
Guide Pilot Diameter - millimeter (GPD)
5
Guide Pilot Length - millimeter (GPL)
6
Hand (Cutting direction)
Right
Head length - millimeter (LH)
18
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5973134
Ordering code ANSI
G12511.0X5.0
Overall length - inch (OAL)
3.1496
Overall length - millimeter (OAL)
80
Shank
Cylindrical shank
Step included angle (STA)
180
Counterbore with 3-flutes, diameter 11.00mm with an overall length of 80mm and a flute length of 18mm and 8mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 5.00mm for a pre-hole tapping diameter M6, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys.
