Dormer G13216.0 5973335 Countersink - 90° 7FL 16.00 mm
MODEL 5973335
$47.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 A
Coating
Bright

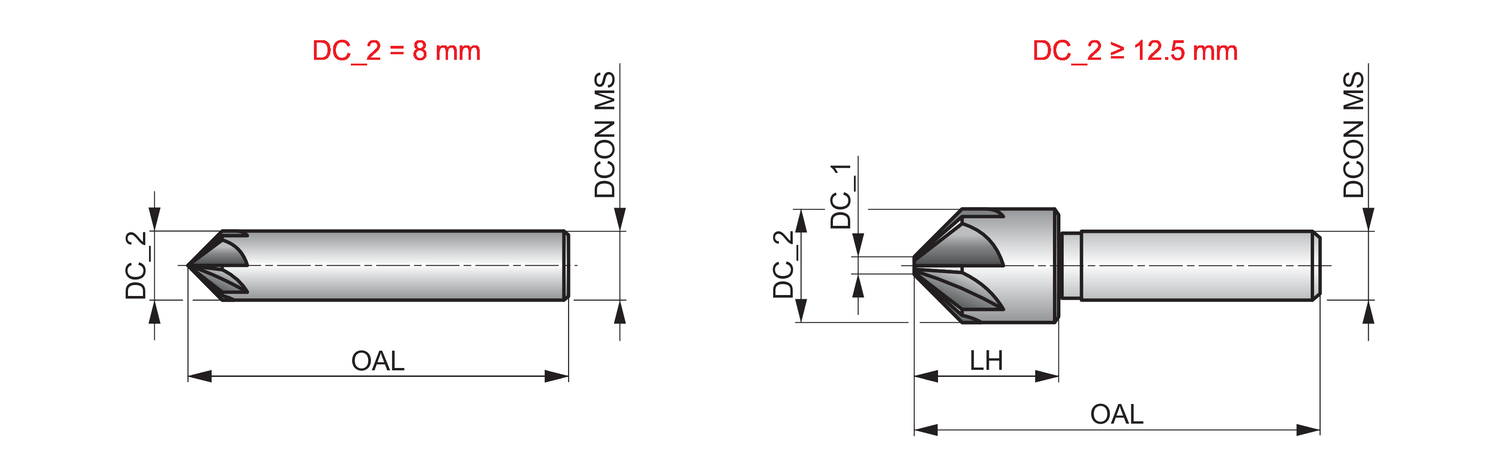

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
3.2
EDP number
108277
Flute count (NOF)
7
Hand (Cutting direction)
Right
Head length - millimeter (LH)
19.5
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5973335
Ordering code ANSI
G13216.0
Overall length - inch (OAL)
2.2047
Overall length - millimeter (OAL)
56
Point Angle (SIG)
90
Shank
Cylindrical shank
Rose pattern countersink with 7-flutes, 90° chamfering angle, maximum diameter 16.00mm with an overall length of 56mm and a head length of 19.5mm and 10mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium.
