Dormer G13516.0 5973346 Countersink - 60° 3FL 16.00 mm
MODEL 5973346
$52.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 60°
Basic Standard
DIN 334 C
Coating
Bright

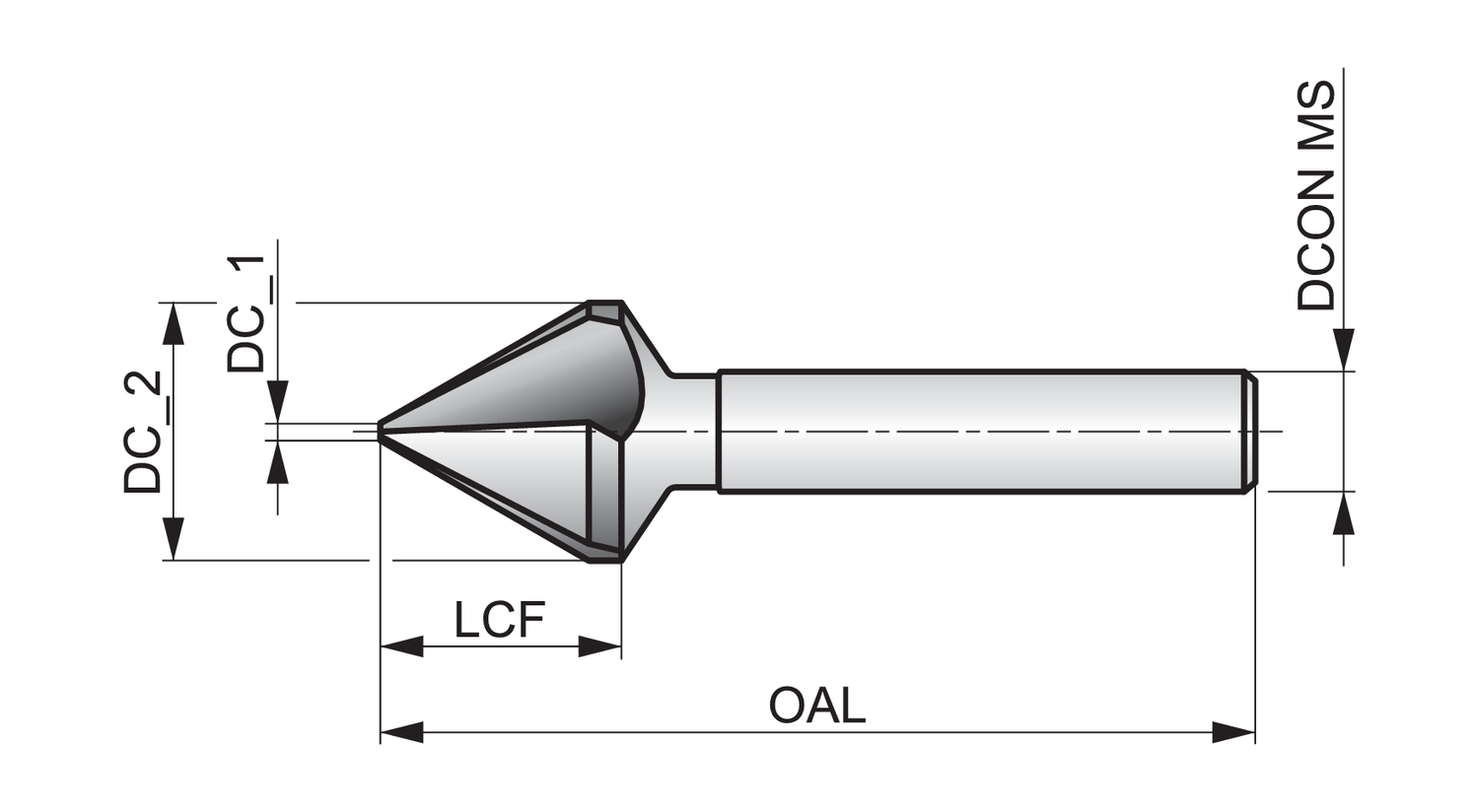

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
4
EDP number
108451
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
14.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973346
Ordering code ANSI
G13516.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Shank
Cylindrical shank
Countersink with 3-flutes, 60° chamfering angle, maximum diameter 16.00mm with an overall length of 63mm and a head length of 14.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 4.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys.
