Dormer G13616.5 5973371 Countersink - 90° 3FL 16.50 mm
MODEL 5973371
$52.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright

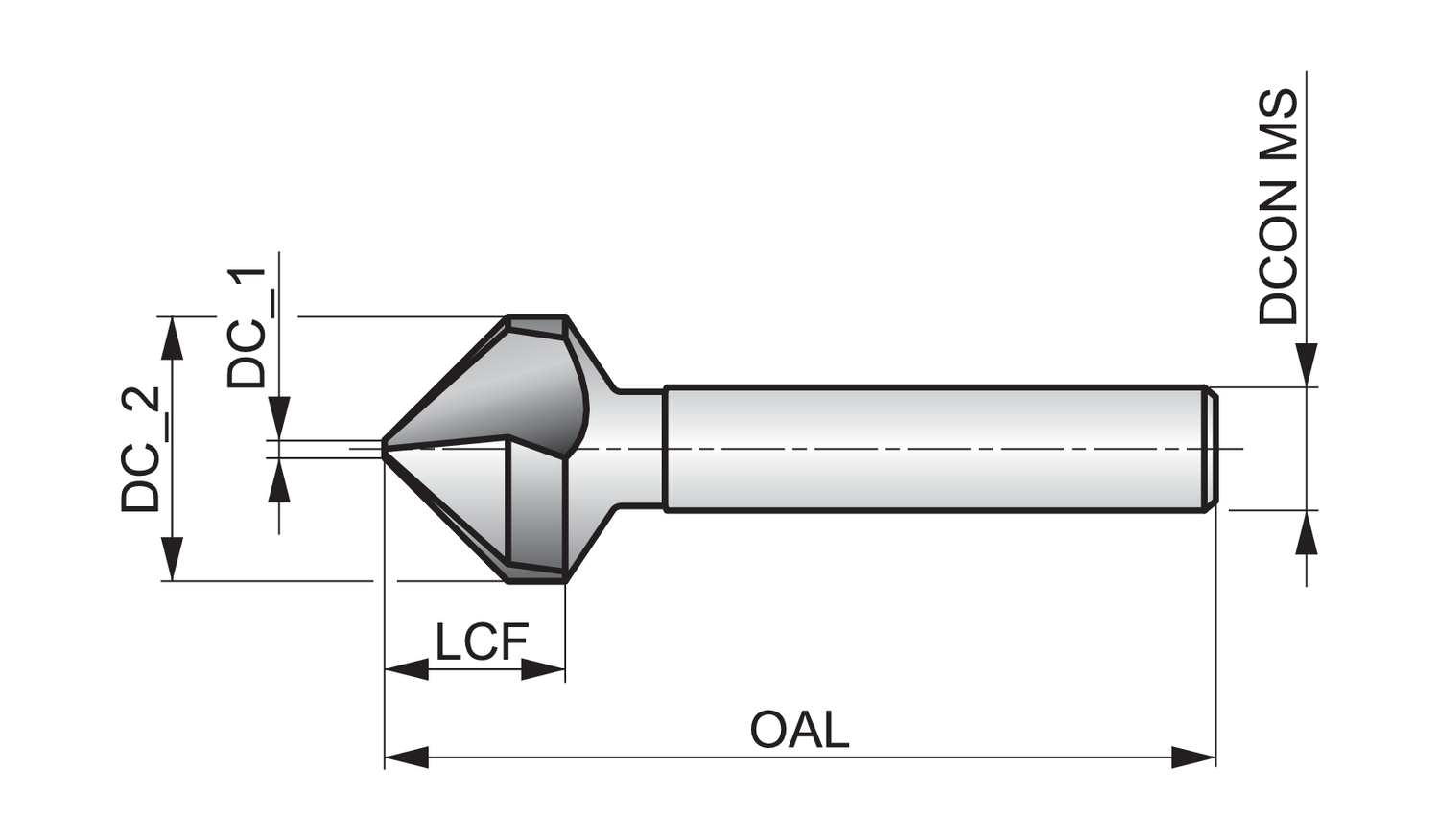

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
3.2
EDP number
108567
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
10.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973371
Ordering code ANSI
G13616.5
Overall length - inch (OAL)
2.3622
Overall length - millimeter (OAL)
60
Point Angle (SIG)
90
Shank
Cylindrical shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 10.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys.
