Dormer G1367.3 5973402 Countersink - 90° 3FL 7.30 mm
MODEL 5973402
$21.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright

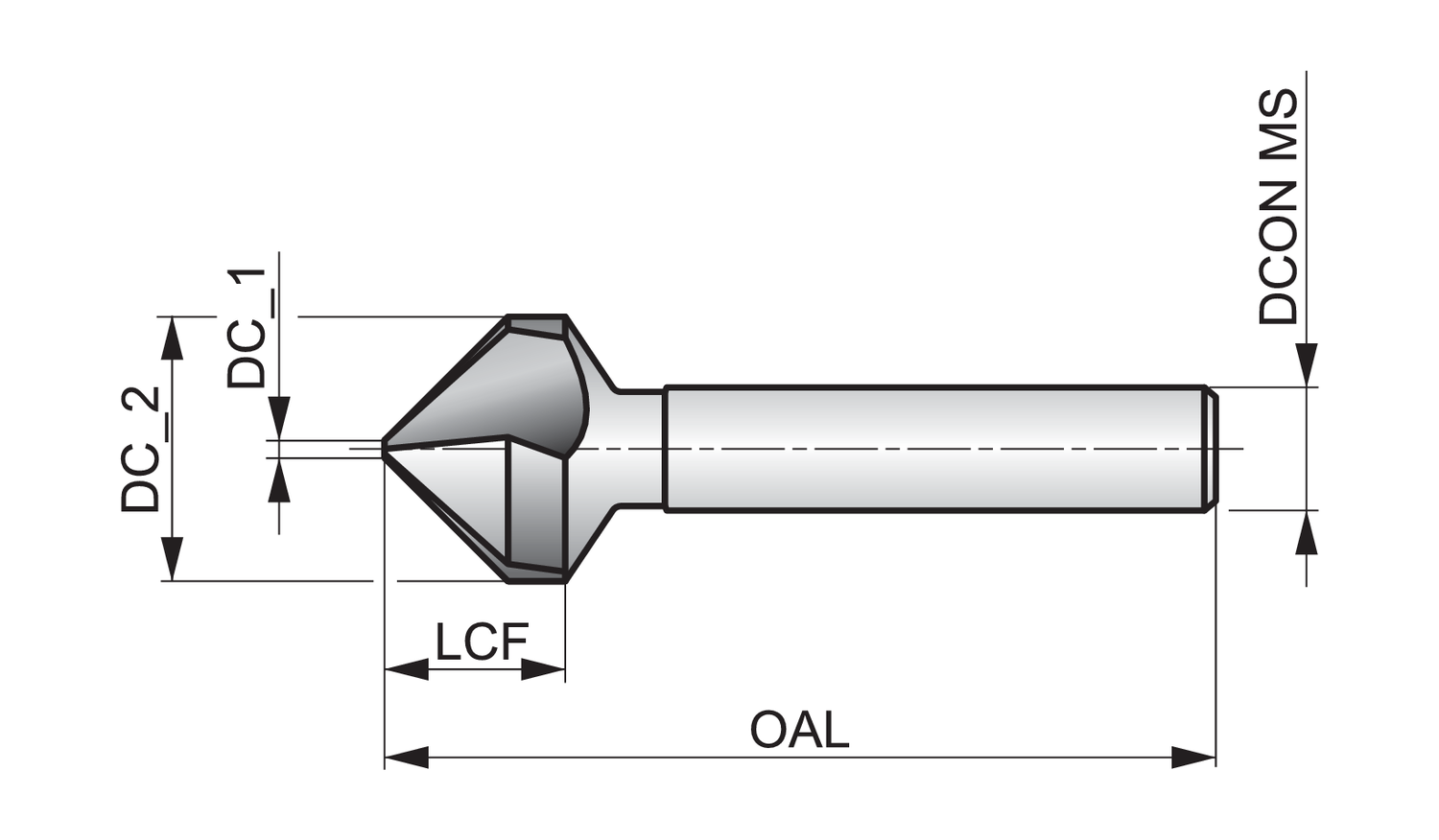

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
1.8
EDP number
108727
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
6.1
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973402
Ordering code ANSI
G1367.3
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Point Angle (SIG)
90
Shank
Cylindrical shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 7.30mm with an overall length of 50mm and a head length of 6.1mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys.
