Dormer G1548.3 5972621 Countersink - 82° 3FL 8.30 mm
MODEL 5972621
$23.63 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 82°
Basic Standard
DIN 335 C
Coating
Bright

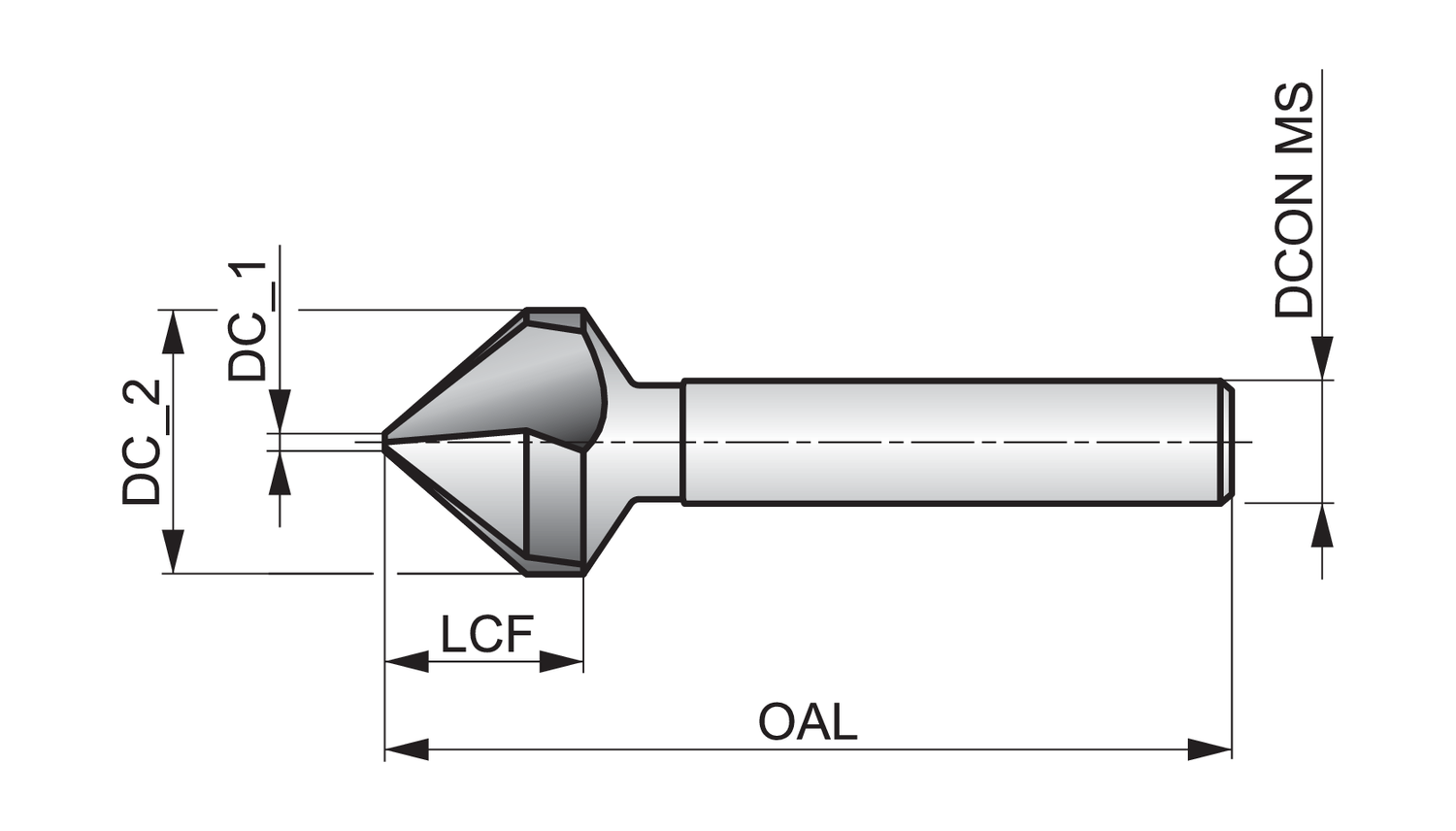

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2
EDP number
149355
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
6.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5972621
Ordering code ANSI
G1548.3
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Point Angle (SIG)
82
Shank
Cylindrical shank
Countersink with 3-flutes, 82° chamfering angle, maximum diameter 8.30mm with an overall length of 50mm and a head length of 6.5mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for US standard countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys.
