Dormer C1101.5 5983771 Slot Drill 1.50 mm
MODEL 5983771
$32.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 327 D
Coating
Bright

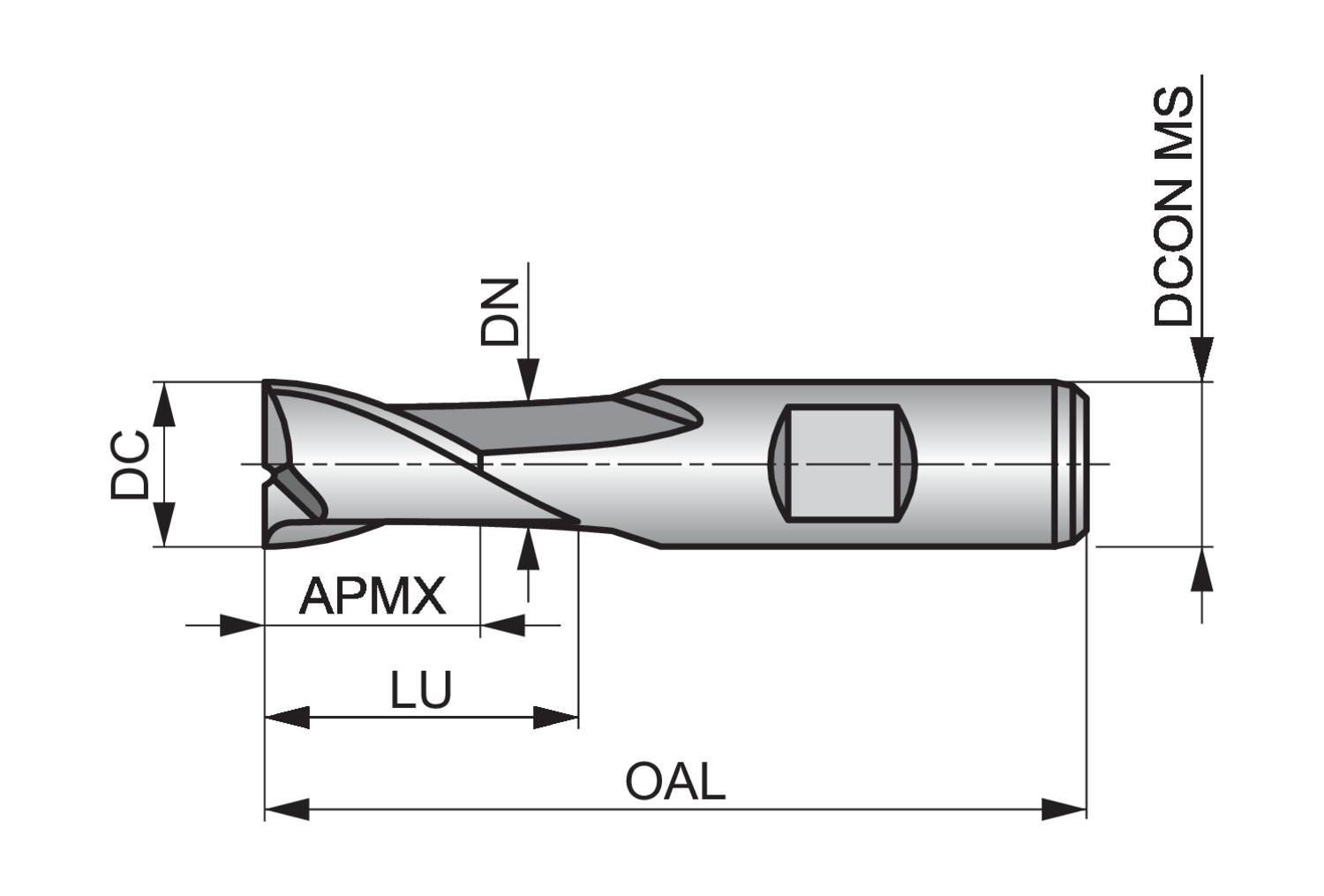

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Extra short
Cutting diameter - inch (DC)
0.0591
Cutting diameter - millimeter (DC)
1.5
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
0.1181
Depth of cut maximum - millimeter (APMX)
3
EDP number
353172
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983771
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C1101.5
Overall length - inch (OAL)
1.8504
Overall length - millimeter (OAL)
47
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
C110 2 flute milling cutters from Dormer can be used as slot drills.
They are manufactured from powder metal High Speed cobalt which gives superior performance and extended tool life.
The bright finish prevents workpiece material from building up on the cutting edges so you get a cleaner, more accurate finish, whilst the short length flute design makes the tool very rigid and suitable for milling shallow slots.
The accurate diameter means the tools are designed for milling standard keyway slots to a P9 tolerance.
C110 milling cutters are very versatile and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron
