Dormer C13922.0 5983972 Slot Drill 22.00 mm
MODEL 5983972
$144.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
TiCN
Coating property (CTP)
1

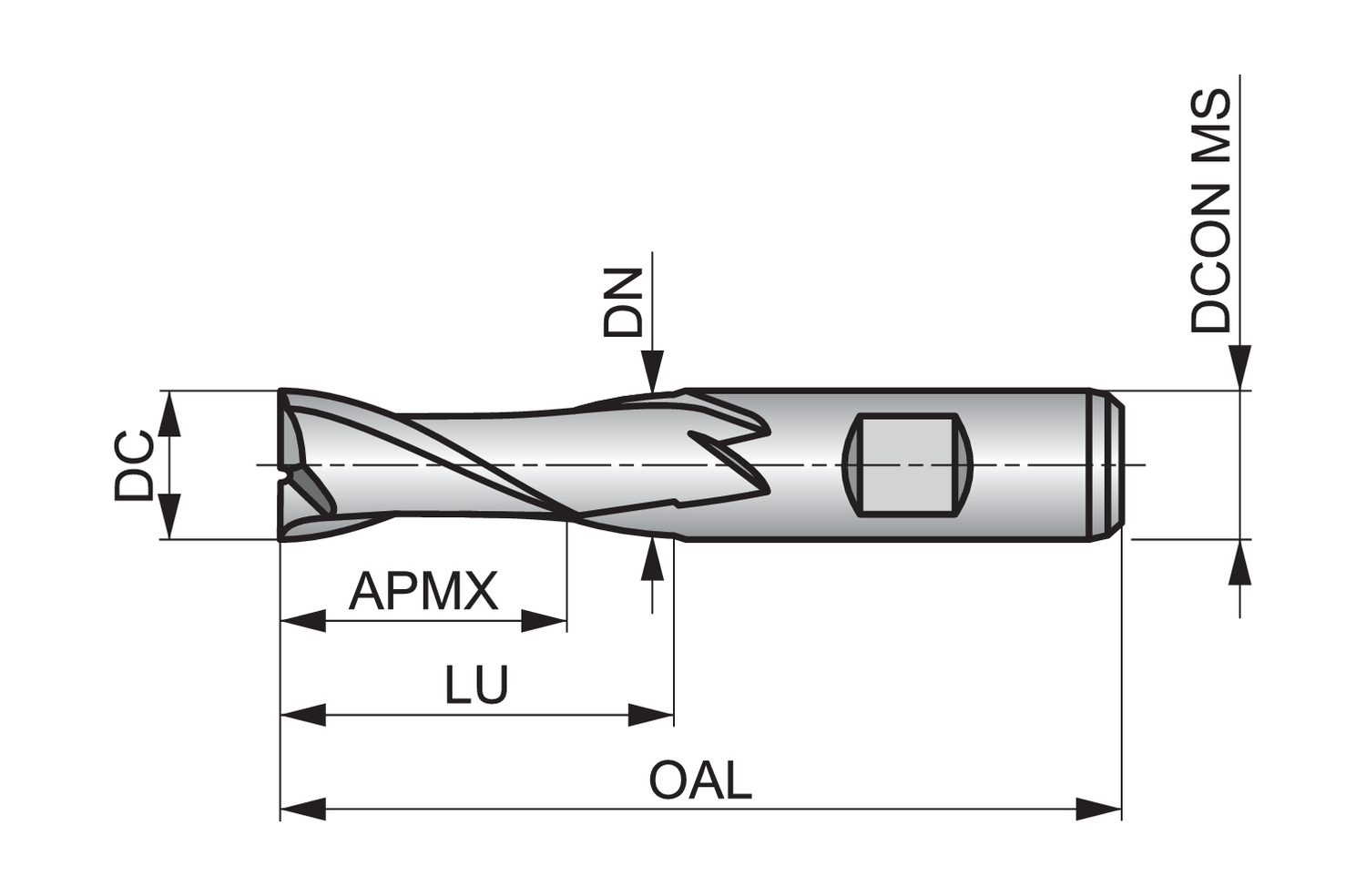

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.8661
Cutting diameter - millimeter (DC)
22
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
354339
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983972
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C13922.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
53.5
Dormer’s C139 milling cutters have a medium flute length for high rigidity when milling standard slots and an accurate diameter which means standard keyway slots can be milled to a P9 tolerance.
They are manufactured from powder metal High Speed cobalt which means longer tool life and better performance.
Couple this with the titanium carbo nitride coating which further improves tool life and gives great performance when threading hard and abrasive materials and you have a very versatile tool, capable of ramping, plunging and profile milling in steels, stainless steels and cast iron
