Dormer C24620.0 5984166 End Mill 20.00 mm
MODEL 5984166
$133.40 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
TiCN
Coating property (CTP)
1

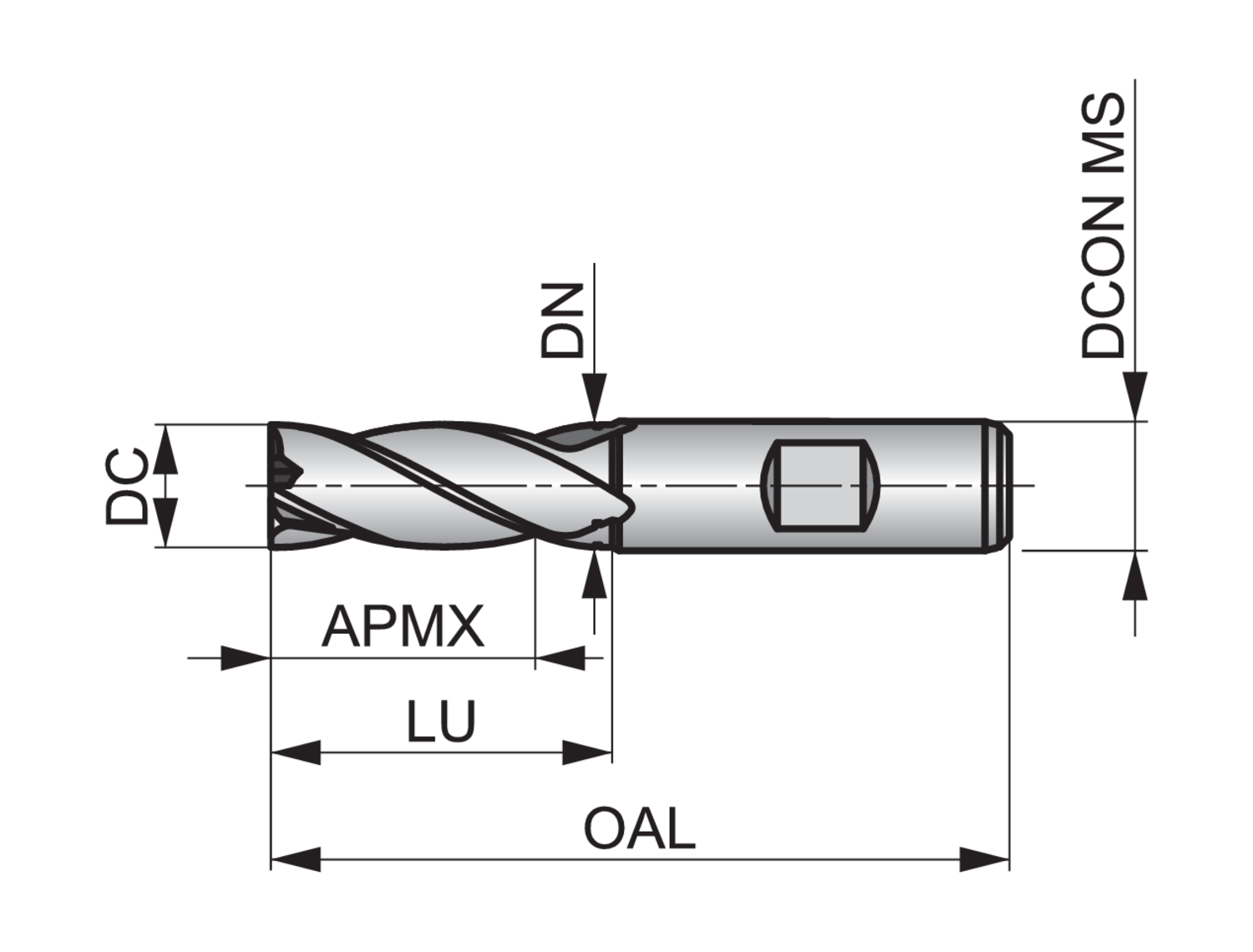

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
354513
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984166
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C24620.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
53.5
C246 4-flute milling cutters from Dormer can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
They are manufactured from powder metal High Speed cobalt which means you will get great performance coupled with a longer tool life, and have a robust design which means they are equally suitable for both slotting and profile milling.
The titanium carbo nitride coating further increases the life of the cutter and improves performance when milling hard and abrasive materials.
The high rigidity as a result of the medium length flute design is ideal for general profile milling applications
