Dormer C29532.0 5983854 End Mill N 844 L 32.00 mm
MODEL 5983854
$377.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 L
Coating
TiCN
Coating property (CTP)
1

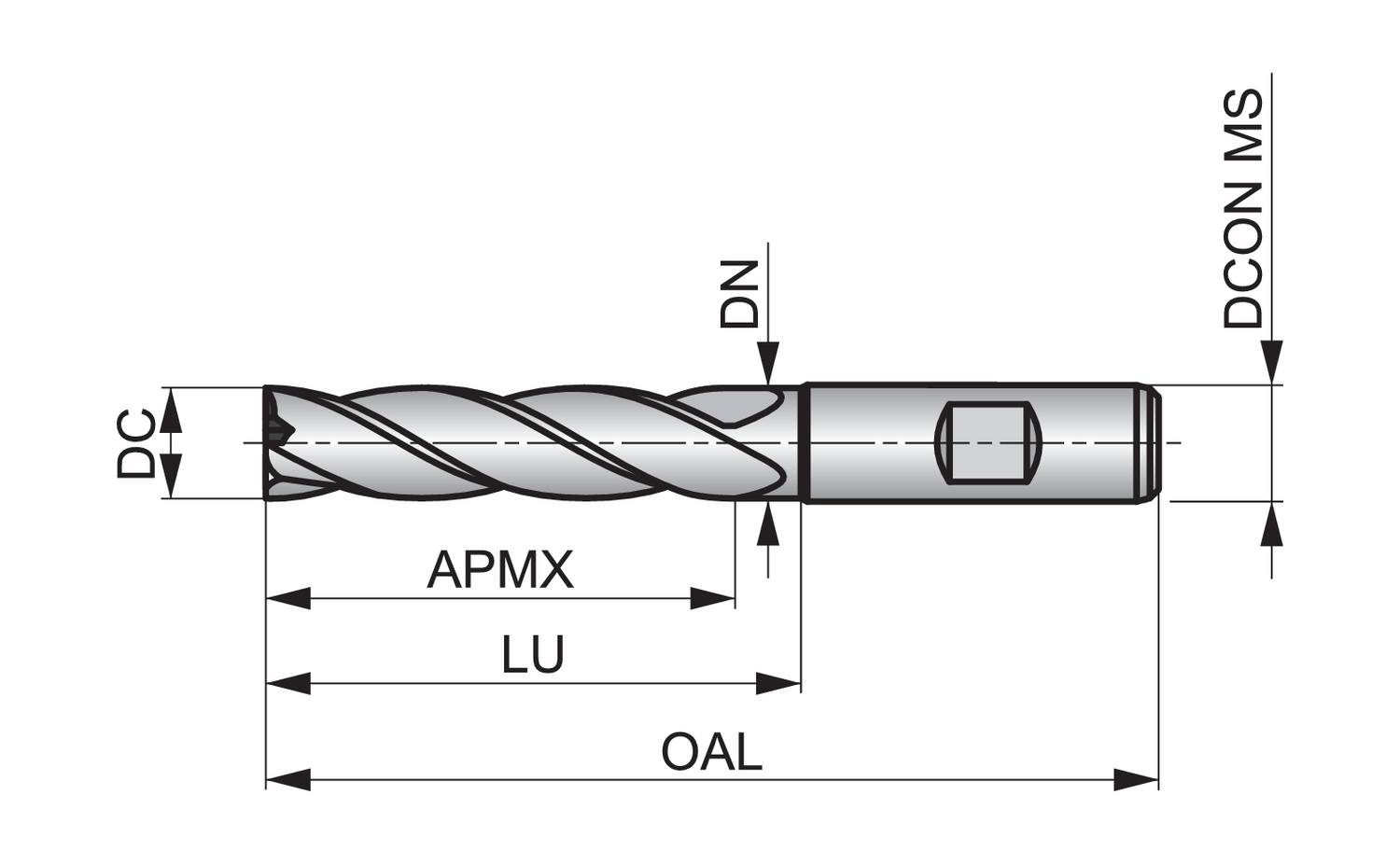

Connection diameter - inch (DCON MS)
1.2598
Connection diameter - millimeter (DCON MS)
32
Cut length
Long
Cutting diameter - inch (DC)
1.2598
Cutting diameter - millimeter (DC)
32
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
4.1732
Depth of cut maximum - millimeter (APMX)
106
EDP number
356319
Flute count (NOF)
6
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983854
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
1.2402
Neck diameter - millimeter (DN)
31.5
Ordering code ANSI
C29532.0
Overall length - inch (OAL)
7.3228
Overall length - millimeter (OAL)
186
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
125.5
C295 4-flute milling cutters have a titanium carbo nitride coating which extends the service life of the tool and improved performance when milling hard and abrasive materials.
The powder metal High Speed cobalt used in manufacture provides superior performance and extended tool life.C295 milling cutters have a strong design so they can be used for profile milling on CNC machines and are very versatile, as they are suitable for plunging, ramping and profile milling in stainless steels, cast iron and steels, whilst the long series flute design provides high rigidity for finishing deep profiles
