Dormer C50516.0 5985473 Ball-Nosed End Mill 16.00 mm
MODEL 5985473
$114.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

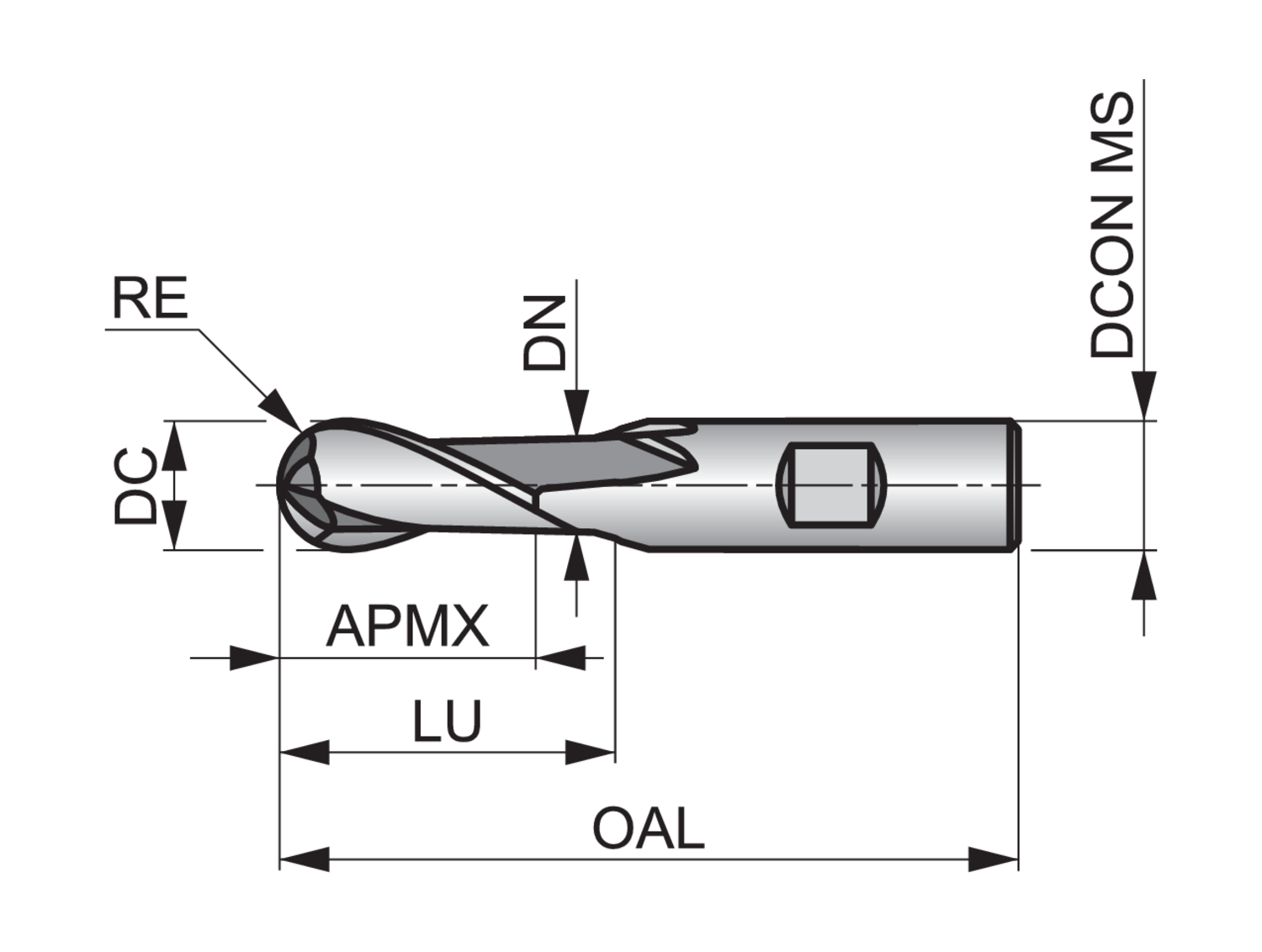

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Corner radius - inch (RE)
0.315
Corner radius - millimeter (RE)
8
Cut length
Short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
73551
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5985473
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.6102
Neck diameter - millimeter (DN)
15.5
Ordering code ANSI
C50516.0
Overall length - inch (OAL)
3.622
Overall length - millimeter (OAL)
92
Peripheral effective cutting edge count (ZEFP)
2
Profile radius - millimeter (PRFRAD)
0
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
43.5
The ball nosed geometry of C505 milling cutters is designed for contour milling complex surfaces on a CNC machine, whilst the medium 2 flute design gives high rigidity, increasing strength and reducing vibration.
The bright finish ensures workpiece material does not stick to the cutting edges of the tool so you get a cleaner, more accurate result.
C505 ball nosed milling cutters are manufactured from High Speed cobalt which means you get great performance and longer tool life.
They can be used for contour milling in cast iron, steels and stainless steels, making them a very versatile choice
