Dormer C6021/4 7647866 Keyway End Mill 2FL 1/4 inch
MODEL 7647866
$24.60 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ANSI
Coating
Bright

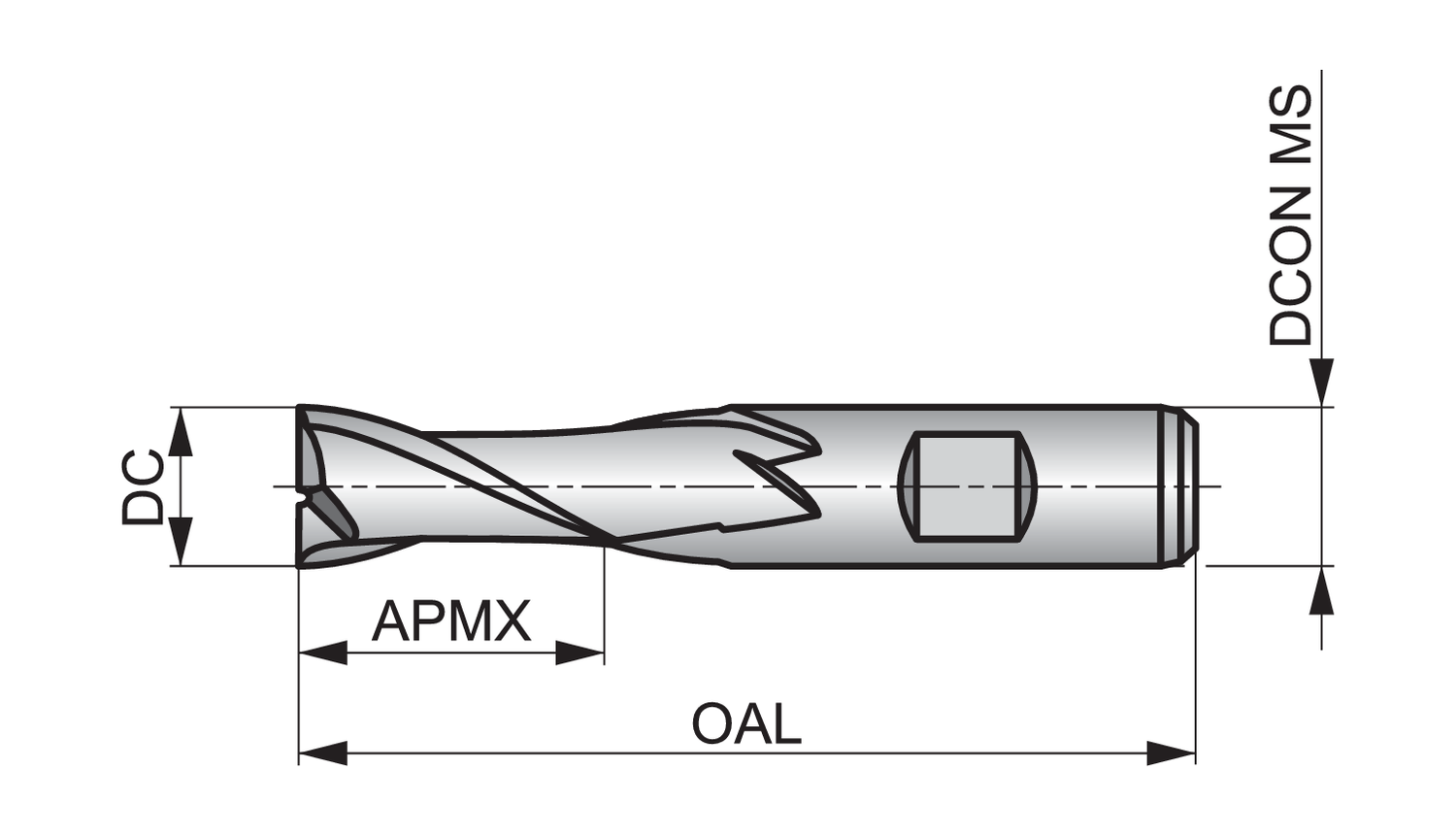

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - inch (DC)
0.25
Cutting diameter - millimeter (DC)
6.35
Cutting diameter tolerance class (TCDC)
ANSI +.0001/-.0015
Depth of cut maximum - fractional inch (APMX)
1/2
EDP number
7647866
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS
Material application
P - Steel and cast steel
MID number
7647866
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C6021/4
Overall length - fractional inch (OAL)
2.7/16
Overall length - inch (OAL)
2.4375
Overall length - millimeter (OAL)
61.91
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
C602 2-flute milling cutters have an accurate diameter for milling standard keyway slots to close tolerance.
Good rigidity for milling slots comes from a regular length flute design, whilst the premium High Speed Steel used in manufacture provides excellent tool strength and great performance.
The bright finish ensures a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.
C602 2-flute slot drills are very versatile and are suitable for plunging, ramping and profile milling in a range of materials including cast iron, steels and stainless steels
