Image for Illustration purposes only. Actual product may vary
Dormer C70012.5 5985392 Corner Rounding Cutter 35.00 mm x 12.5 mm
MODEL 5985392
$263.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

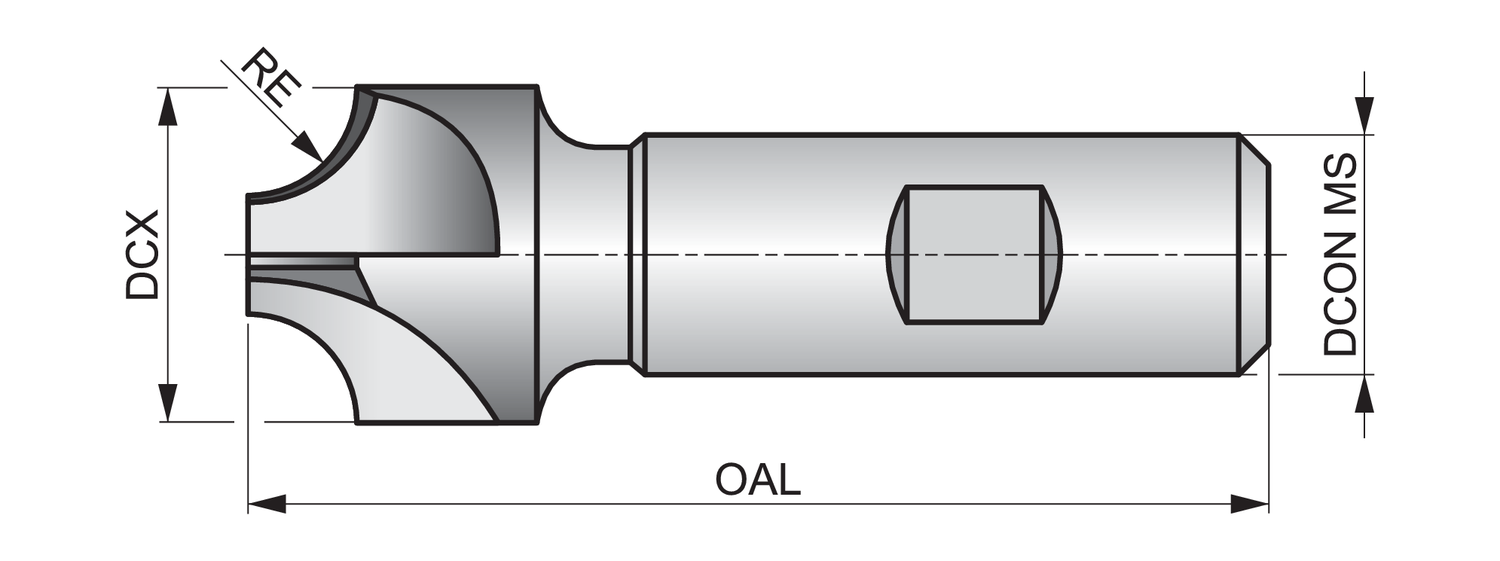

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner radius - inch (RE)
0.4921
Corner radius - millimeter (RE)
12.5
Cut length
Extra short
Cutting diameter maximum - inch (DCX)
1.378
Cutting diameter maximum - millimeter (DCX)
35
EDP number
74329
Flute count (NOF)
4
Flute helix angle (FHA)
0
Material
HSS-E
MID number
5985392
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C70012.5
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
0
Shank
Weldon shank DIN 1835B
C700 milling cutters are radius corner rounding cutters, with an accurate ground radius capable of profile milling metric corner radii around the perimeter of components.
The High Speed cobalt used in manufacture provides excellent tool strength, performance and wear resistance whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool for a clean and accurate result.
For stable holding to improve radius surface finish there is a Weldon Shank, manufactured to conform to the German Institute for Standardization.
C700 milling cutters can be used for corner radius milling in steels, stainless steels, aluminium and cast iron
