Dormer C36711.0 5983978 Slot Drill 11.00 mm
MODEL 5983978
$66.42 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 327 D
Coating
ALCRONA
Coating property (CTP)
1

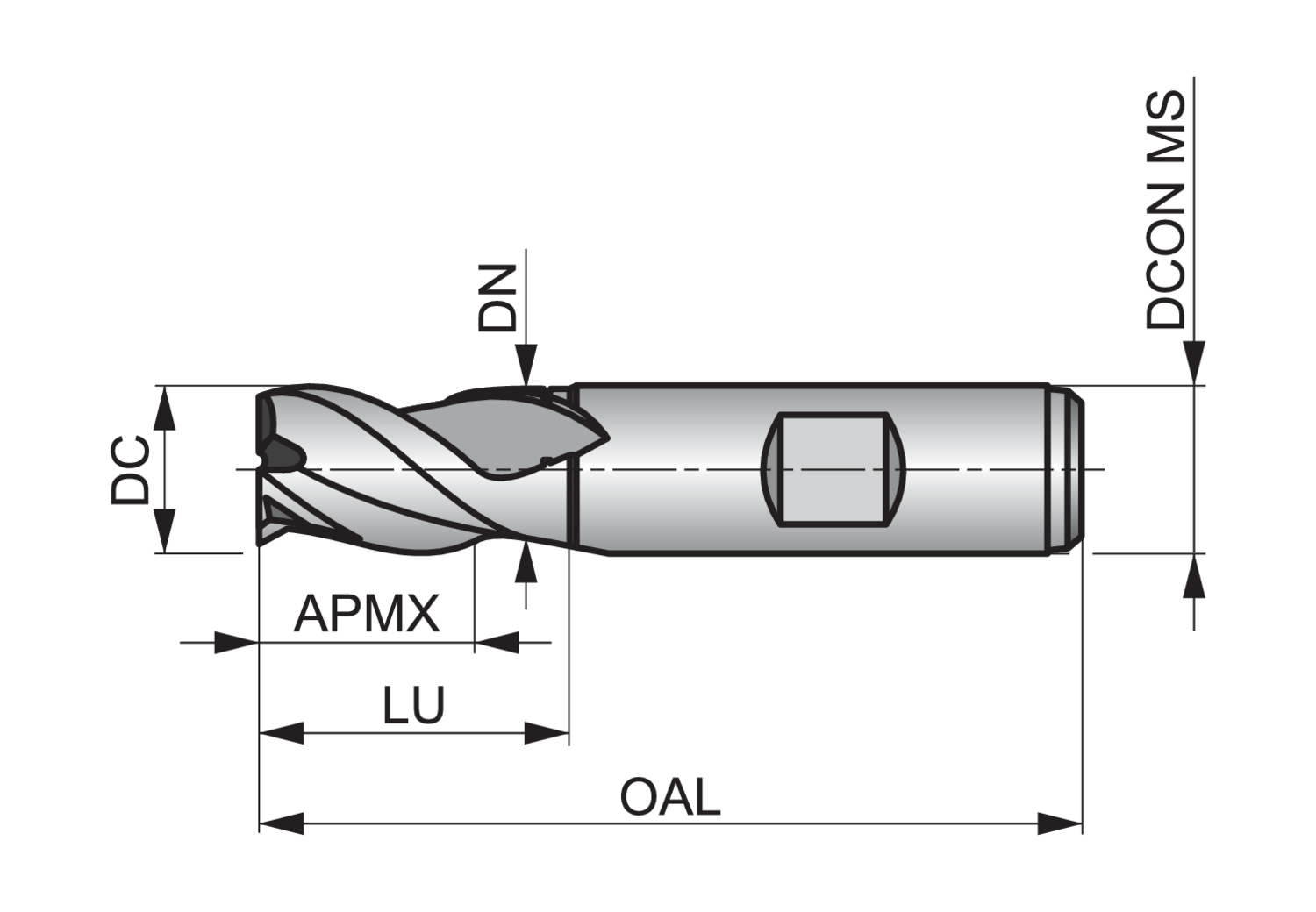

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Extra short
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
0.5118
Depth of cut maximum - millimeter (APMX)
13
EDP number
355275
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material
HSS-E-PM
Material application
M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983978
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C36711.0
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
15
Shank
Weldon shank DIN 1835B
C367 3-flute milling cutters can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels, making them very versatile.
With a 40 degree helix, they are designed for high performance when machining heat resistant materials on CNC machines and have an accurate diameter, making it possible to mill standard keyway slots to a P9 tolerance.
C367 milling cutters are manufactured from powder metal High Speed cobalt for greatly improved performance with longer tool life, whilst the Alcrona coating further increases the life of the tool and improves performance when milling materials which are difficult to machine
