Dormer S1061/4 7648490 End Mill 1/4 inch
MODEL 7648490
$24.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
Bright

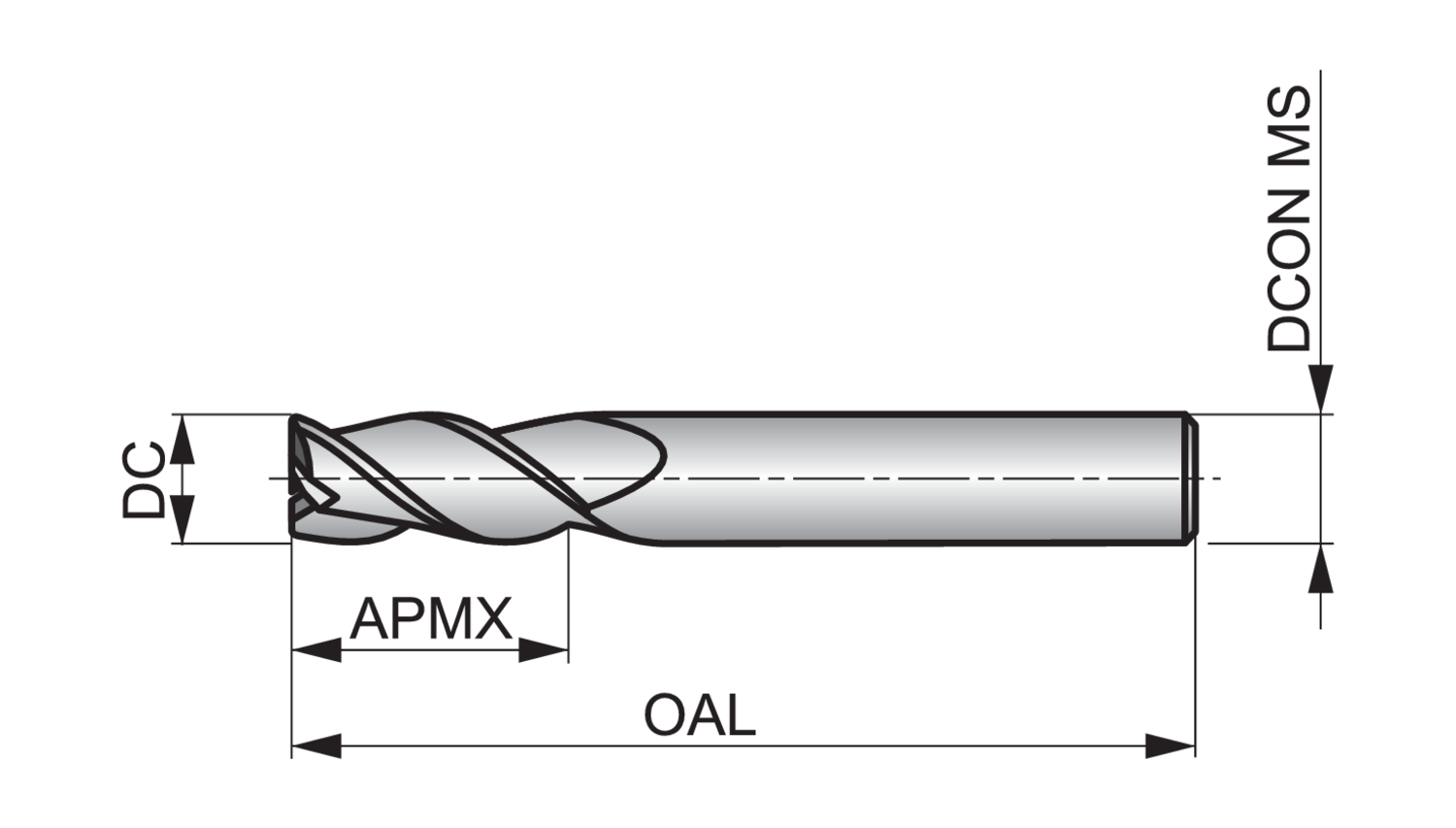

Connection diameter - fractional inch (DCON MS)
1/4
Connection diameter - inch (DCON MS)
0.25
Connection diameter - millimeter (DCON MS)
6.35
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - inch (DC)
0.25
Cutting diameter - millimeter (DC)
6.35
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1
EDP number
7648490
Flute count (NOF)
2
Flute helix angle (FHA)
45
Material
HM
Material application
N - Non-ferrous metals
MID number
7648490
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S1061/4
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
S106 2-flute slot drills from Dormer are manufactured from premium carbide to give superior strength and longer tool life.
The bright finish ensures you get a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tool.
With a medium length flute design providing high rigidity for milling standard slots and profiles, the 45 degree helix and high hook geometry make the tools ideal for high performance machining in soft materials.
S106 2-flute carbide milling cutters are designed specifically for milling in non-ferrous materials such as aluminium
