Dormer S1115/16 7648583 End Mill 2FL 5/16 inch
MODEL 7648583
$45.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

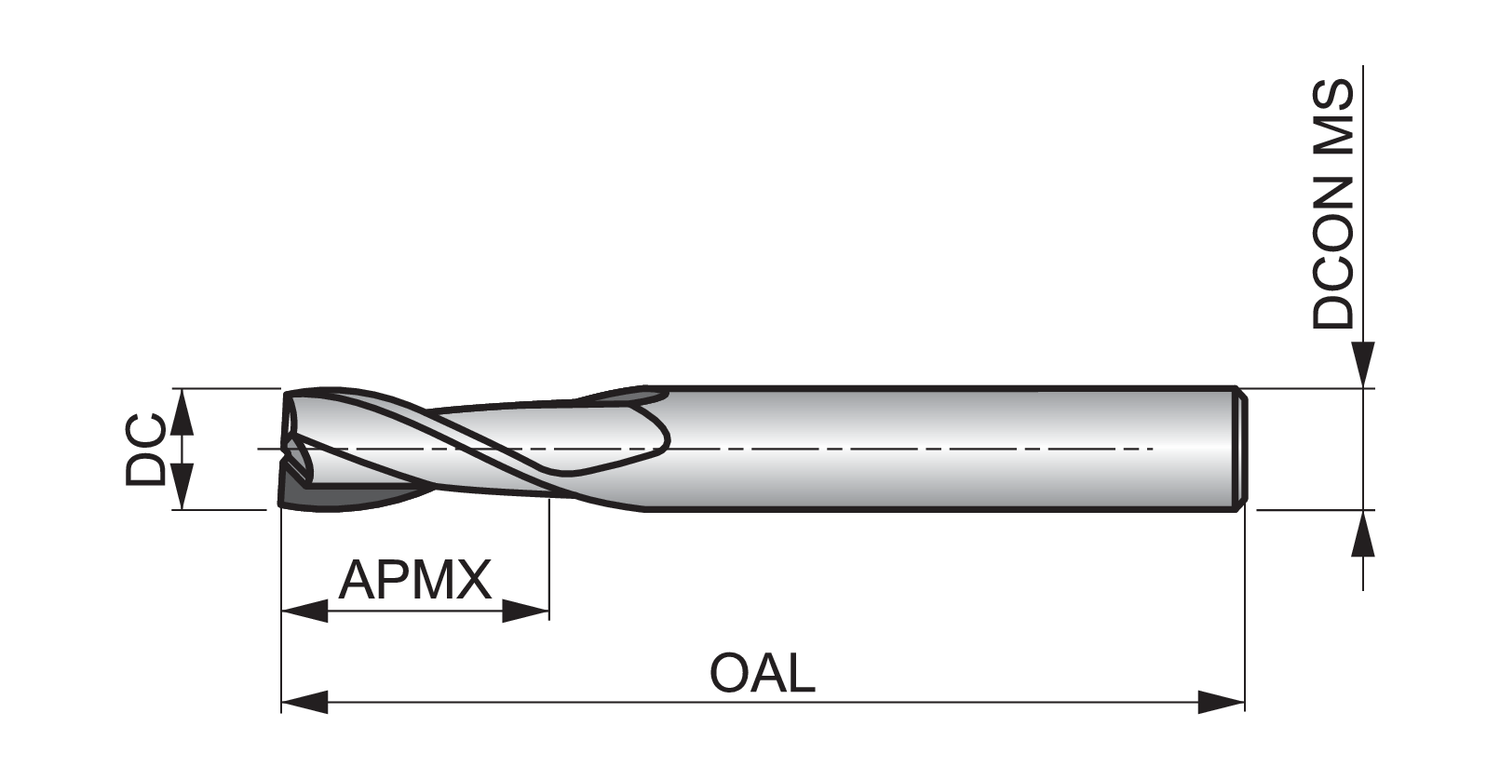

Connection diameter - fractional inch (DCON MS)
5/16
Connection diameter - inch (DCON MS)
0.3125
Connection diameter - millimeter (DCON MS)
7.94
Cut length
Extra long
Cutting diameter - fractional inch (DC)
5/16
Cutting diameter - inch (DC)
0.3125
Cutting diameter - millimeter (DC)
7.94
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.5/8
EDP number
7648583
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648583
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1115/16
Overall length - fractional inch (OAL)
4"
Overall length - inch (OAL)
4
Overall length - millimeter (OAL)
101.6
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S111 2-flute slot drills have an extra long shank which gives high rigidity for milling standard slots and a bright finish to ensure a clean and accurate result by stopping workpiece material from sticking to the cutting edges of the tool.
The tools can be used for plunging, ramping and profile milling in cast iron, steels and stainless steels, and are manufactured from premium carbide for excellent performance and extended tool life.
S111 2-flute carbide milling cutters are great range for general milling of slots on most types of machine, making them a smart choice for your milling needs
