Dormer S1123/32 7648592 Ball-Nosed End Mill 2FL 3/32 inch
MODEL 7648592
$15.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

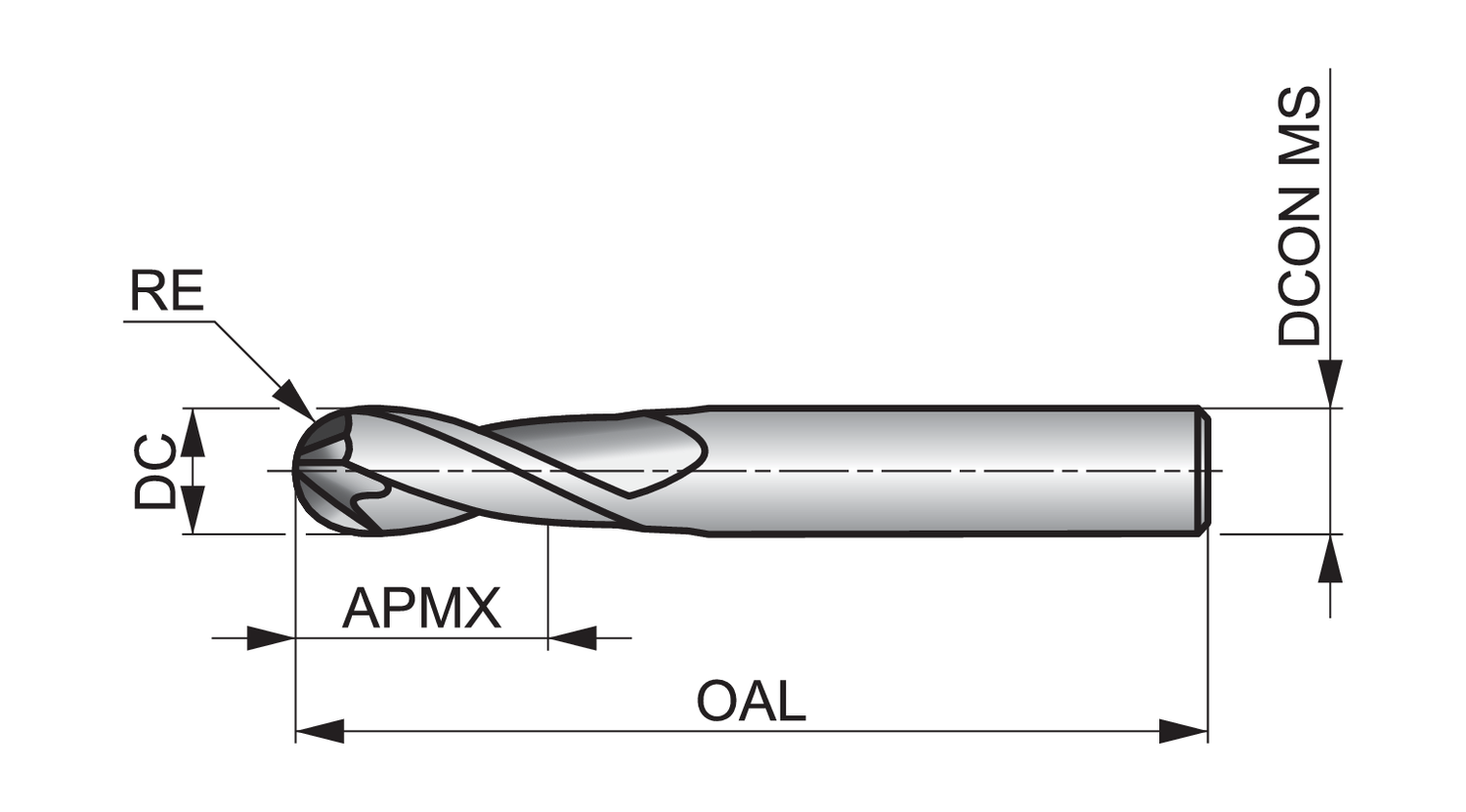

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Corner radius - fractional inch (RE)
3/64
Corner radius - inch (RE)
0.047
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/32
Cutting diameter - inch (DC)
0.0938
Cutting diameter - millimeter (DC)
2.38
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3/8
EDP number
7648592
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648592
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1123/32
Overall length - fractional inch (OAL)
1.1/2
Overall length - inch (OAL)
1.5
Overall length - millimeter (OAL)
38.1
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
Part of the carbide milling cutter range from Dormer, S112 2-flute slot drills come with a ball nose geometry, designed for high performance contouring of complex surface.
They are manufactured from premium carbide for longer tool life and superior performance and have a short length flute which gives high rigidity for increased strength and reduced vibration.
The bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish.
S112 2-flute carbide milling cutters are very versatile, being suitable for plunging, ramping and profile milling in steels, cast iron and stainless steels
