Dormer S1143/16 7648632 Ball-Nosed End Mill 2FL 3/16 inch
MODEL 7648632
$32.61 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

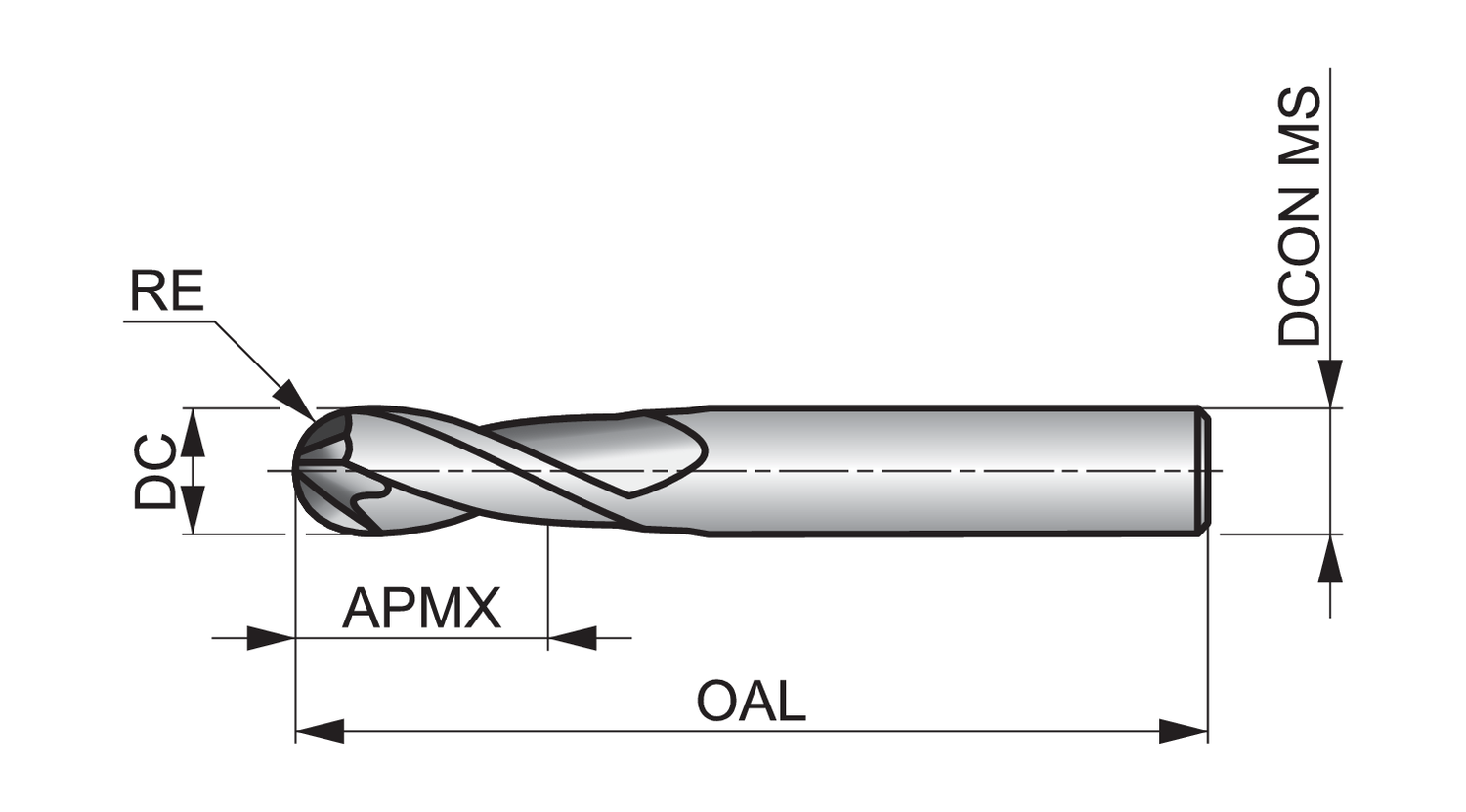

Connection diameter - fractional inch (DCON MS)
3/16
Connection diameter - millimeter (DCON MS)
4.76
Corner radius - fractional inch (RE)
3/32
Corner radius - inch (RE)
0.094
Cut length
Long
Cutting diameter - fractional inch (DC)
3/16
Cutting diameter - inch (DC)
0.1875
Cutting diameter - millimeter (DC)
4.76
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3/4
EDP number
7648632
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648632
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1143/16
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S114 2-flute slot drills have a long length shank, providing high rigidity for increased strength and reduced vibration, and ball nose geometry for high performance contouring of complex surfaces.
They have a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, ensuring a clean and accurate result, and are manufactured from premium carbide for superior performance and longer tool life.
S114 2-flute ball nose carbide milling cutters are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron
