Dormer S2111/2 7648590 End Mill 2FL 1/2 inch
MODEL 7648590
$126.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
TiAlN
Coating property (CTP)
1

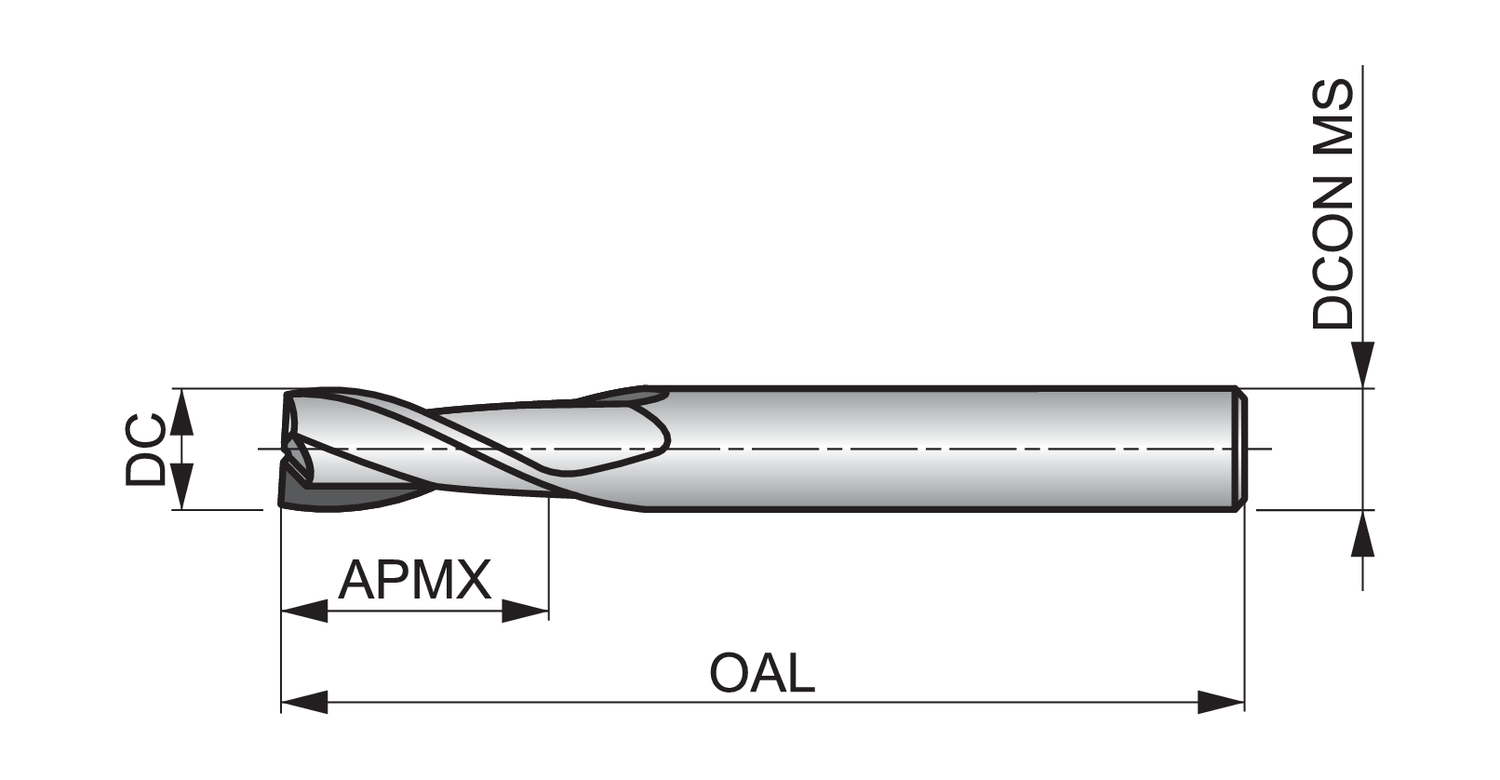

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cut length
Extra long
Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3
EDP number
7648590
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648590
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2111/2
Overall length - fractional inch (OAL)
6"
Overall length - inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S211 carbide slot drills can be used for plunging, ramping and profile milling in cast irons, stainless steels and steel and are a very economical range for general milling of slots on most machines.
They have an aluminium titanium nitride coating to prevent workpiece material from sticking to the cutting surfaces of the tool for a clean and accurate finish, and are made from premium carbide for superior performance and extended tool life.
The extra long shank on S211 carbide milling cutters means you get high rigidity for milling standard slots in areas which are difficult to reach
