Dormer S2121/16 7648601 Ball-Nosed End Mill 2FL 1/16 inch
MODEL 7648601
$18.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

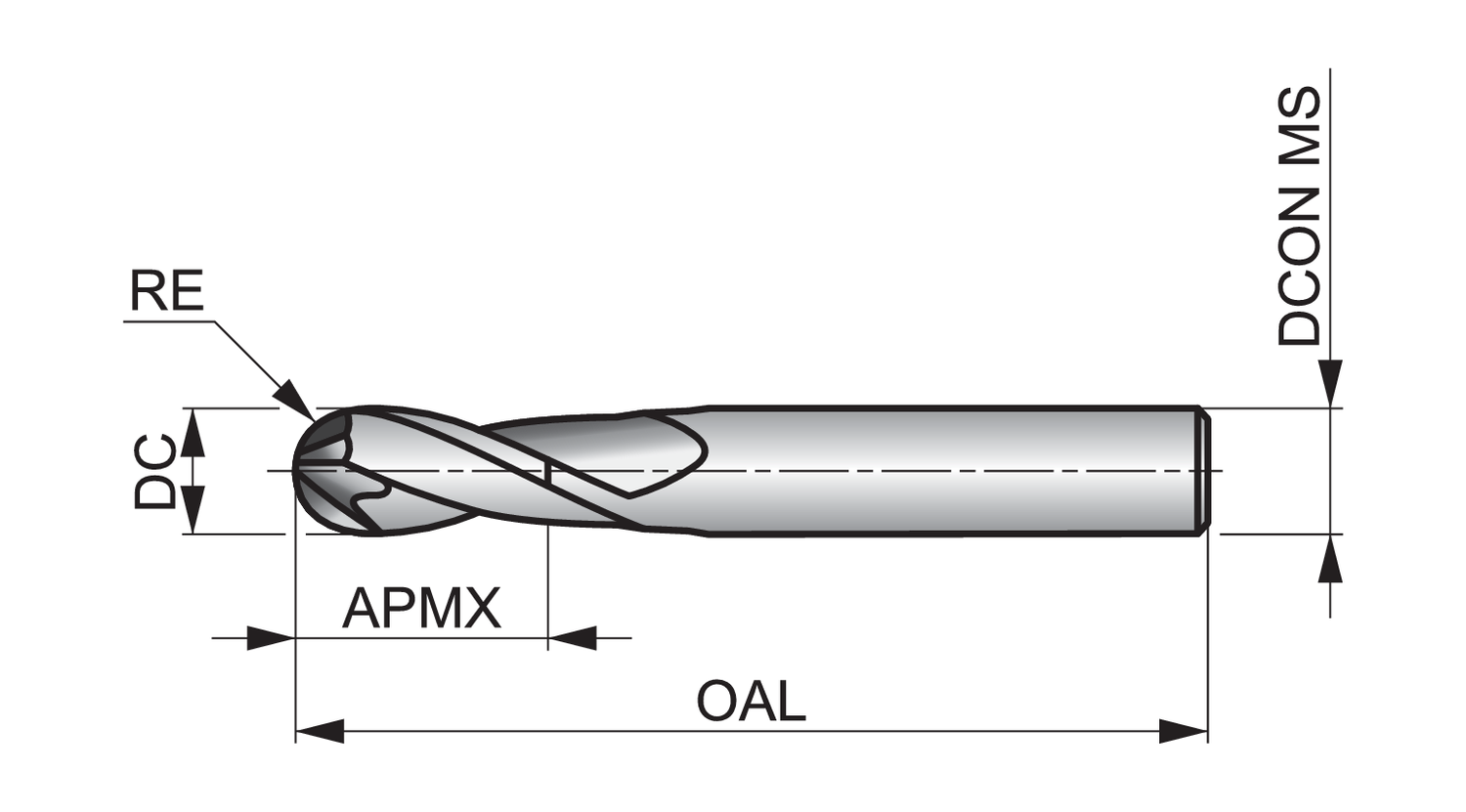

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Corner radius - fractional inch (RE)
1/32
Corner radius - inch (RE)
0.031
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/16
Cutting diameter - inch (DC)
0.0625
Cutting diameter - millimeter (DC)
1.59
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1/4
EDP number
7648601
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648601
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2121/16
Overall length - fractional inch (OAL)
1.1/2
Overall length - inch (OAL)
1.5
Overall length - millimeter (OAL)
38.1
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S212 2-flute carbide cutters have a ball nose geometry for high performance contouring of complex surfaces and a short flute length to provide high rigidity for increased strength and reduced vibration.
They are manufactured from premium carbide which provides superior performance with extended tool life and have an aluminium titanium nitride coating to prevent workpiece material from sticking to the cutting edges of the tool, ensuring a clean and accurate finish.
S212 2-flute ball nose milling cutters are very versatile and can be used for plunging, ramping and profile milling in stainless steels, cast irons and steels
