Dormer S2213/8 7648673 End Mill 3FL 3/8 inch

Name: Dormer S2213/8 7648673 End Mill 3FL 3/8 inch
Brand: Dormer Pramet
Price: 43.39 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7648673

BRAND

Dormer Pramet

SKU

6078132

WEIGHT

0.128 lb

UOM

each

$43.39 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

TiAlN

Coating property (CTP)

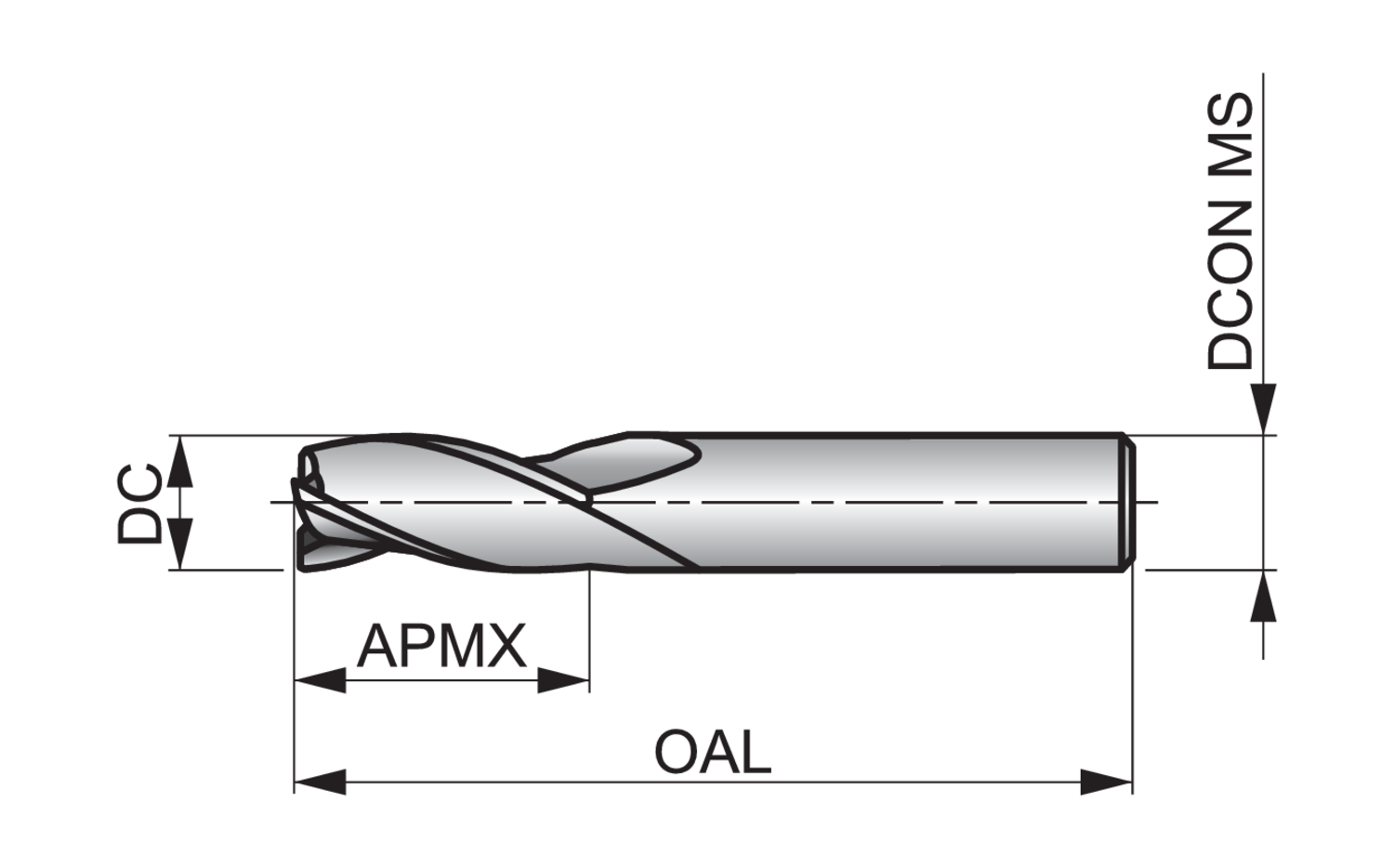

Connection diameter - fractional inch (DCON MS)

3/8

Connection diameter - inch (DCON MS)

0.375

Connection diameter - millimeter (DCON MS)

9.53

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/8

Cutting diameter - inch (DC)

0.375

Cutting diameter - millimeter (DC)

9.53

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

7/8

EDP number

7648673

Flute count (NOF)

Flute helix angle (FHA)

Material

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

7648673

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2213/8

Overall length - fractional inch (OAL)

2.1/2

Overall length - inch (OAL)

2.5

Overall length - millimeter (OAL)

63.5

Radial rake angle (GAMF)

Shank

Cylindrical shank

Part of Dormer’s extensive range of carbide milling cutters, S221 3-flute slot drills are manufactured from premium carbide for great performance and longer tool life.

They have a medium length flute to provide high rigidity for profiling and milling standards slots and are a good, economical range for general milling of slots on most types of machines.

S221 3-flute milling cutters are suitable for plunging, ramping and profile milling in cast iron, steels and stainless steels
