Image for Illustration purposes only. Actual product may vary
Dormer S22516.0 6706806 Finishing End Mill 16.00 mm
MODEL 6706806
$268.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

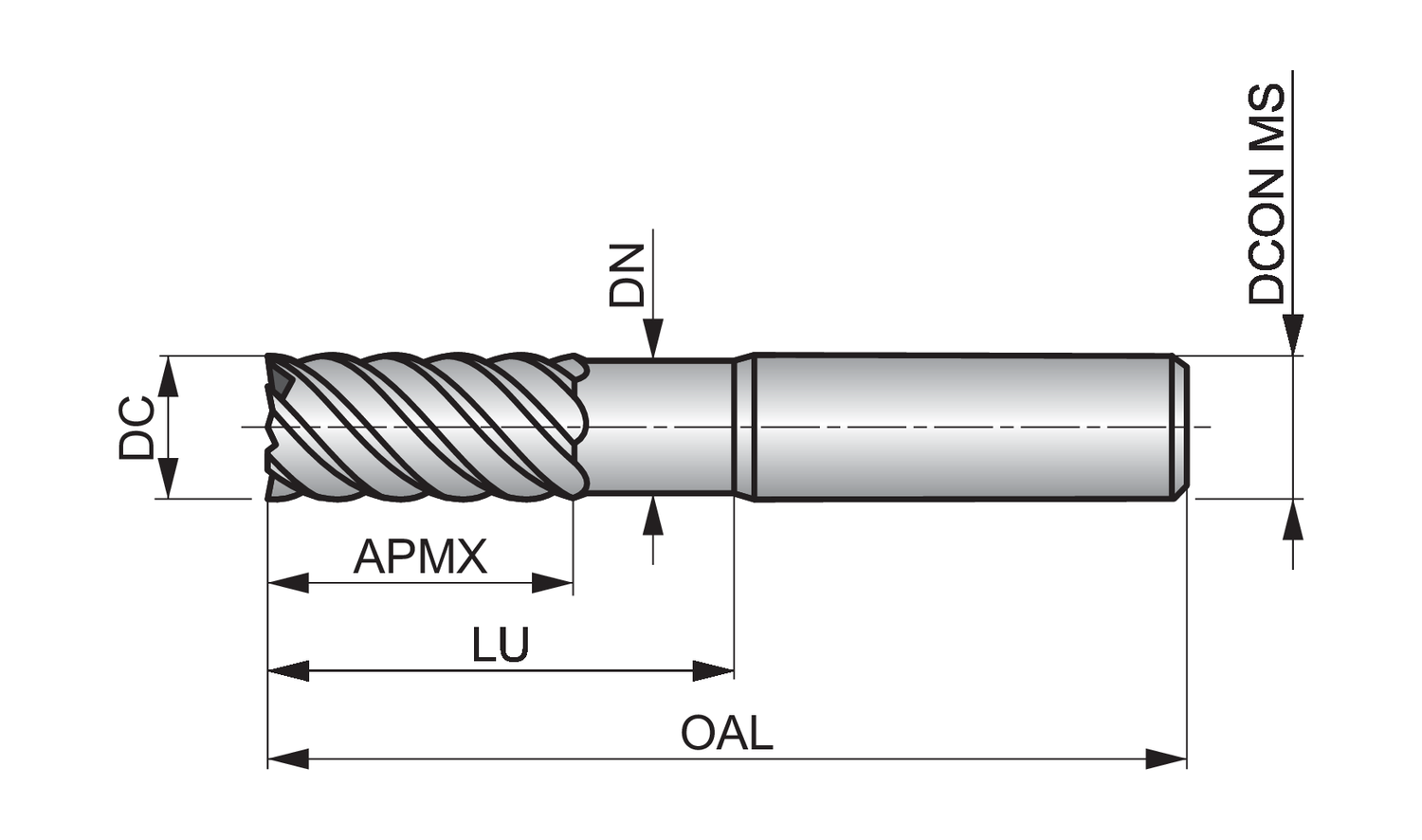

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cut length
Short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.1811
Depth of cut maximum - millimeter (APMX)
30
EDP number
46706806
Flute count (NOF)
8
Flute helix angle (FHA)
50
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706806
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.5906
Neck diameter - millimeter (DN)
15
Ordering code ANSI
S22516.0
Overall length - inch (OAL)
3.5433
Overall length - millimeter (OAL)
90
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
46
S225 multi-flute milling cutters with extra rigidity for finishing profiles are manufactured from premium carbide for great performance and longer tool life.
They have an aluminium titanium nitride coating which improves performance when milling difficult to machine materials and further increases the life of the tool.
S225 multi-flute milling cutters are specifically designed for finishing in difficult to machine materials such as heat resistant alloys, and have a 50 degree helix, for high performance profiling on CNC machines
