Dormer S22620.0 6706789 Finishing End Mill 20.00 mm
MODEL 6706789
$457.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

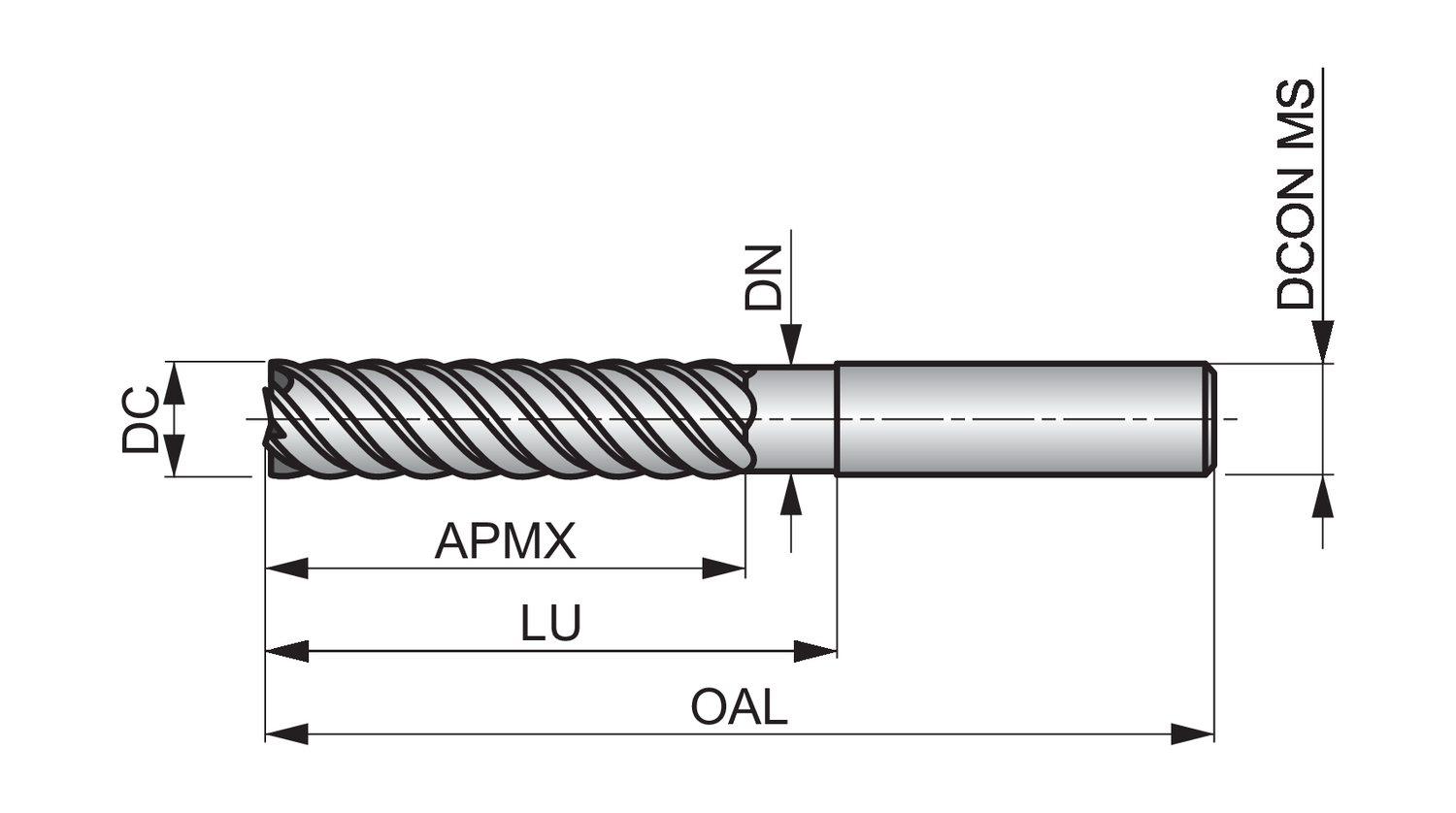

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Long
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
2.2441
Depth of cut maximum - millimeter (APMX)
57
EDP number
46706789
Flute count (NOF)
8
Flute helix angle (FHA)
50
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706789
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.748
Neck diameter - millimeter (DN)
19
Ordering code ANSI
S22620.0
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
8
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
85
S226 milling cutters are part of Dormer extensive cutter range and are manufactured from premium carbide for superior performance and extended tool life.
They are designed specifically for finishing in difficult to machine materials such as heat resistant alloys and, to improve performance under these conditions, are coated with an aluminium titanium nitride coating, which also further extends the tool life.
The long series multi-flute design of S226 cutters provides high rigidity for finishing of deep profiles, and the 50 degree helix ensures high performance profiling on CNC machines
