Dormer S22912.0 6706527 Ball-Nosed End Mill 12.00 mm
MODEL 6706527
$163.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

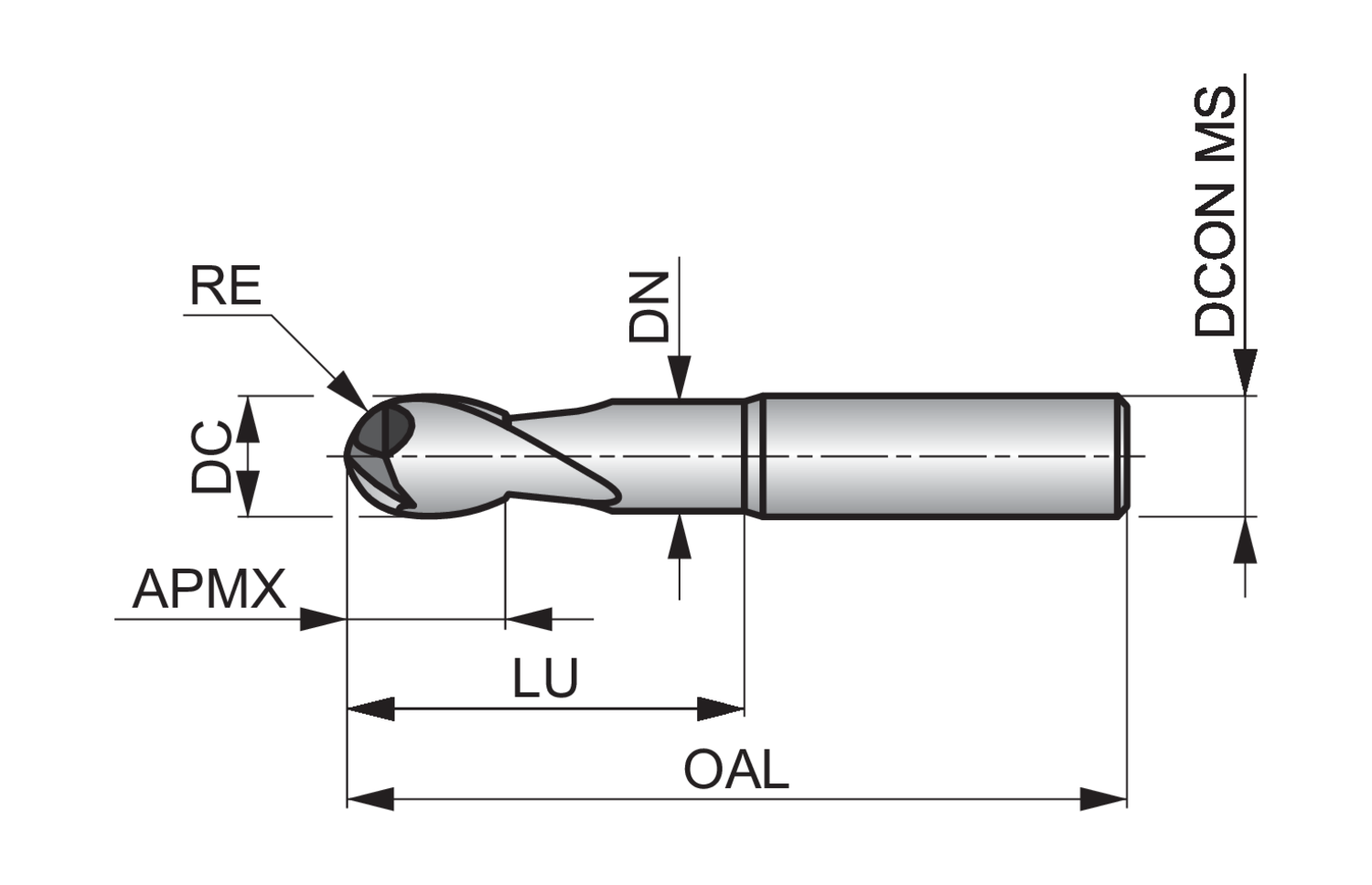

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Corner radius - inch (RE)
0.2362
Corner radius - millimeter (RE)
6
Cut length
Extra short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
46706527
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706527
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4331
Neck diameter - millimeter (DN)
11
Ordering code ANSI
S22912.0
Overall length - inch (OAL)
2.9528
Overall length - millimeter (OAL)
75
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
38
S229 2-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces and are designed particularly for high speed machining in difficult to machine materials such as heat resistant alloys, whilst the short 2-flute design gives greater rigidity for increased strength and reduced vibration.
With an aluminium titanium nitride coating which prolongs tool life and improves performance when milling difficult to machine materials, S229 2-flute milling cutters are manufactured from premium carbide material to further improve performance and extend tool life, and are designed for high speed machining of heat resistant alloys and other hard to machine materials
