Dormer S2338.0 6706561 Ball-Nosed End Mill 8.00 mm
MODEL 6706561
$122.21 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

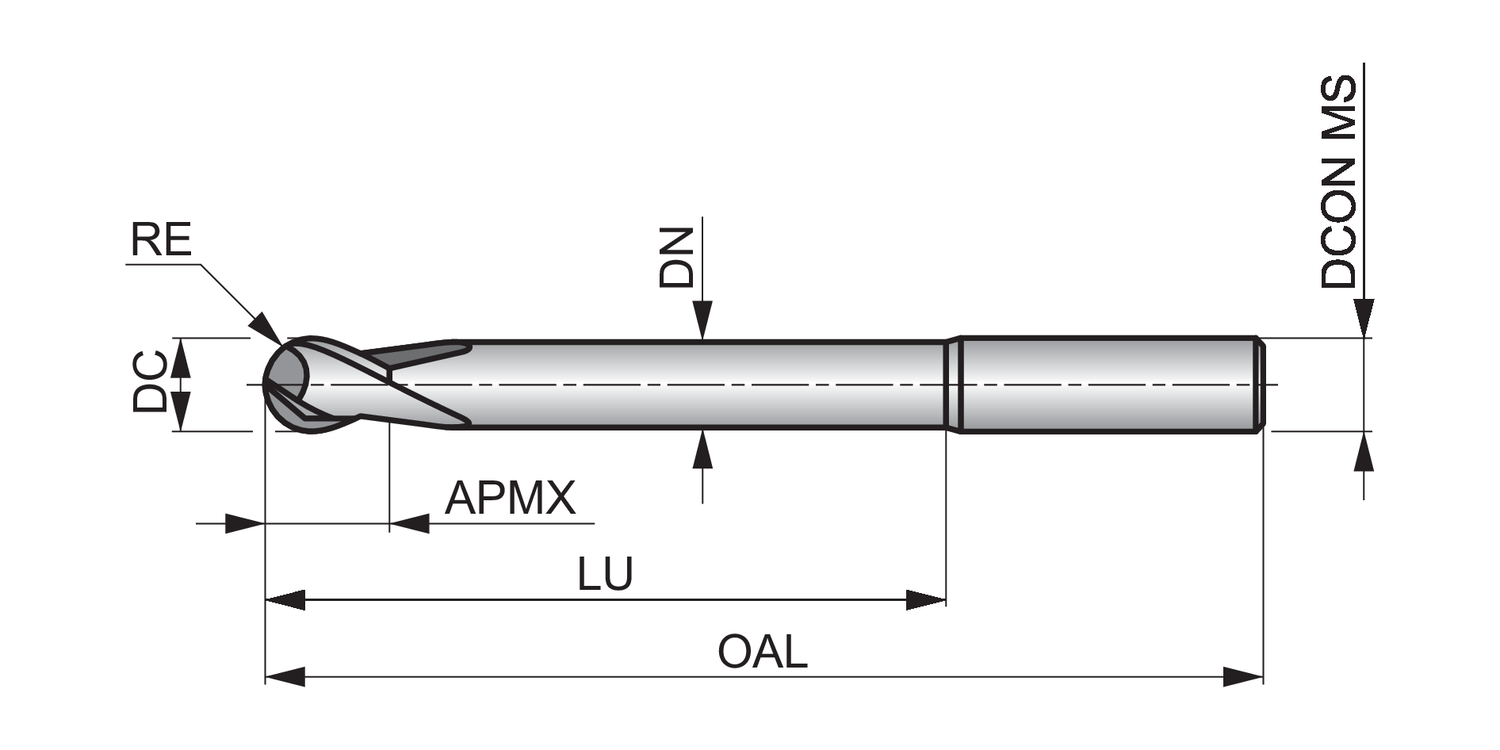

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Corner radius - inch (RE)
0.1575
Corner radius - millimeter (RE)
4
Cut length
Extra short
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.4724
Depth of cut maximum - millimeter (APMX)
12
EDP number
46706561
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706561
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.2913
Neck diameter - millimeter (DN)
7.4
Ordering code ANSI
S2338.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
60
S233 2-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces and a titanium silicon nitride coating which improves performance when milling difficult to machine materials and also increase the life of the tool.
Manufactured from premium carbide for superior performance and further enhancement to tool life, S233 cutters are specifically for high speed machining in difficult to machine materials such as heat resistant alloys, and have an extra long reach 2-flute design which provides good rigidity for increased strength and reduced vibration in difficult to reach areas
