Dormer S2343/32 7648750 End Mill 4FL 3/32 inch
MODEL 7648750
$14.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

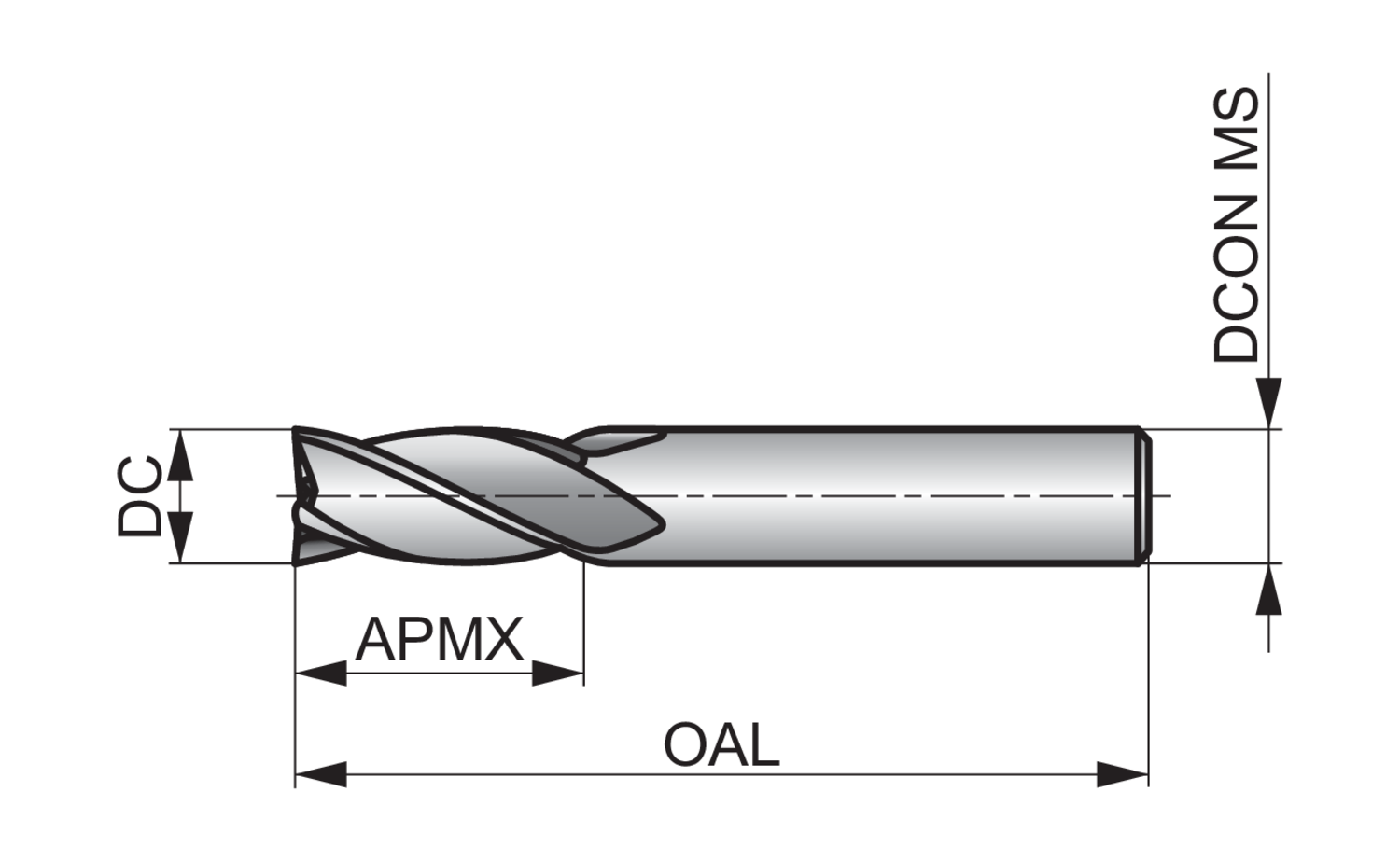

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - inch (DCON MS)
0.125
Connection diameter - millimeter (DCON MS)
3.18
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/32
Cutting diameter - inch (DC)
0.0938
Cutting diameter - millimeter (DC)
2.38
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3/8
EDP number
7648750
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648750
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2343/32
Overall length - fractional inch (OAL)
1.1/2
Overall length - inch (OAL)
1.5
Overall length - millimeter (OAL)
38.1
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S234 4-flute end mills have an aluminium titanium nitride coating which prevents workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate result, and are manufactured from premium carbide, providing superior performance and longer tool life.
High rigidity for standard profile milling is provided by the medium flute length and the tools are a very economical range for general slot milling on most types of machines.
S234 4-flute milling cutters are suitable for plunging, ramping and profile milling in steel, stainless steels and cast irons
