Dormer S2363/4 7648824 End Mill 4FL 3/4 inch
MODEL 7648824
$211.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

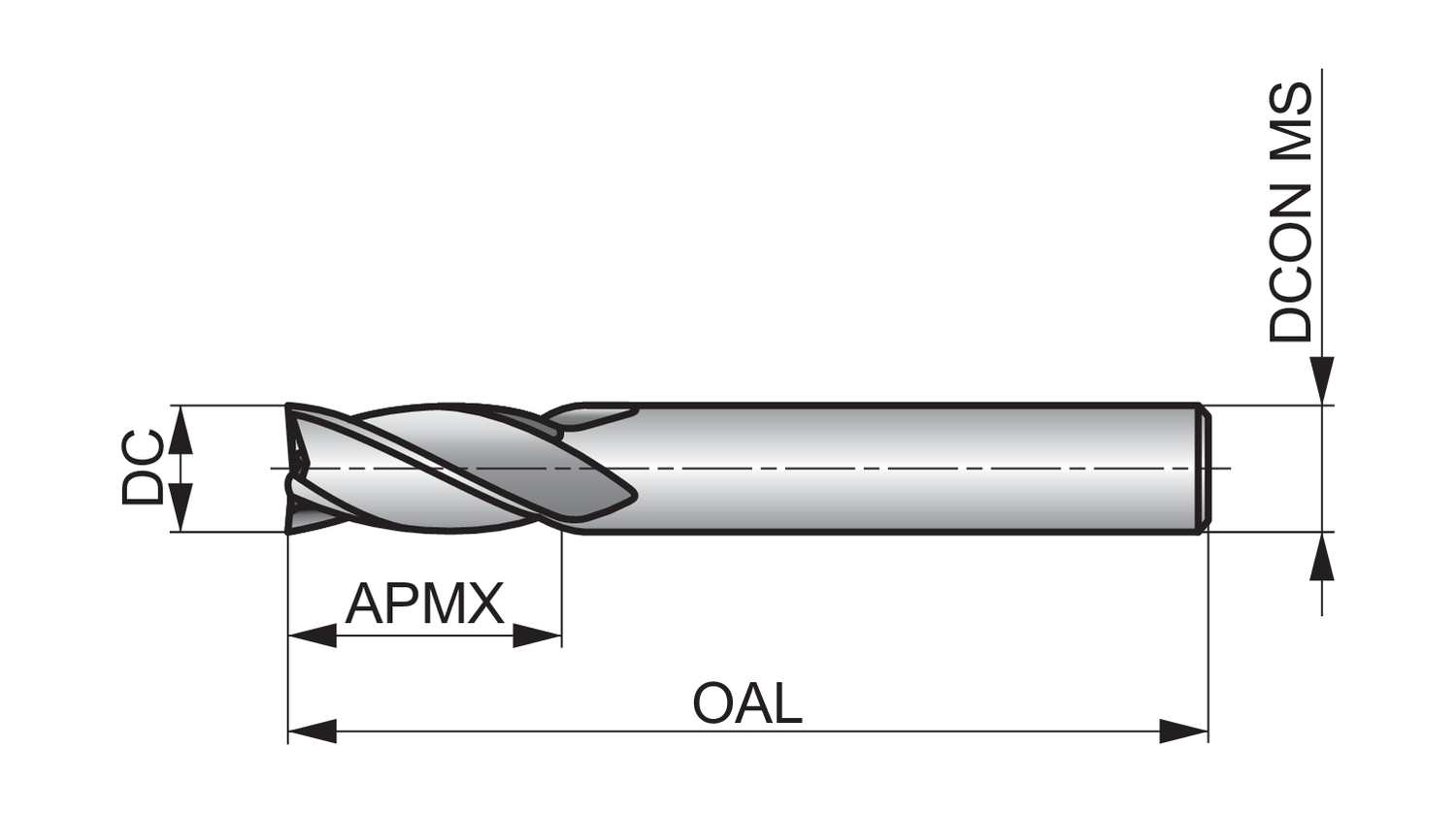

Connection diameter - fractional inch (DCON MS)
3/4
Connection diameter - inch (DCON MS)
0.75
Connection diameter - millimeter (DCON MS)
19.05
Cut length
Long
Cutting diameter - fractional inch (DC)
3/4
Cutting diameter - inch (DC)
0.75
Cutting diameter - millimeter (DC)
19.05
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
2.1/4
EDP number
7648824
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
7648824
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2363/4
Overall length - fractional inch (OAL)
5"
Overall length - inch (OAL)
5
Overall length - millimeter (OAL)
127
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
Part of Dormer’s extensive range of carbide cutters, S236 4-flute end mills are manufactured from premium carbide for superior performance and longer tool life, and have an extra long shank for good reach and high rigidity for standard profile milling.
An economical range for general milling of slots on most types of machine, S236 4-flute milling cutters can be used for ramping, plunging and milling profiles in stainless steels, cast iron and steels, and have an aluminium titanium nitride coating to prevent workpiece material from sticking to the cutting surfaces of the tool for a clean and accurate finish
