Image for Illustration purposes only. Actual product may vary
Dormer S2385/8 7648867 Ball-Nosed End Mill 4FL 5/8 inch
MODEL 7648867
$130.56 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

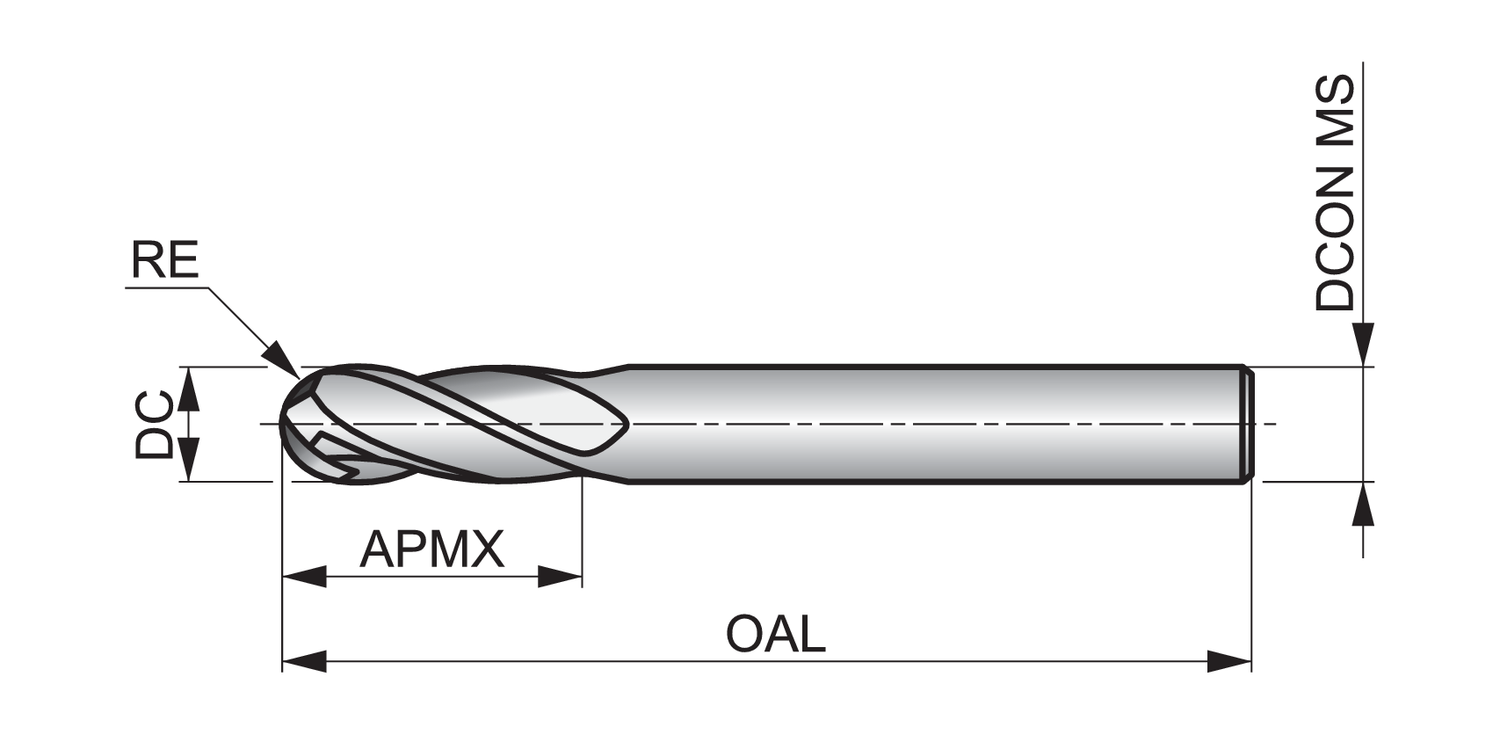

Connection diameter - fractional inch (DCON MS)
5/8
Connection diameter - inch (DCON MS)
0.625
Connection diameter - millimeter (DCON MS)
15.88
Corner radius - fractional inch (RE)
5/16
Corner radius - inch (RE)
0.313
Cut length
Medium
Cutting diameter - fractional inch (DC)
5/8
Cutting diameter - inch (DC)
0.625
Cutting diameter - millimeter (DC)
15.88
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.1/4
EDP number
7648867
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
7648867
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2385/8
Overall length - fractional inch (OAL)
3.1/2
Overall length - inch (OAL)
3.5
Overall length - millimeter (OAL)
88.9
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
Part of Dormer’s extensive range of carbide cutters, S238 4-flute end mills have a ball nose, designed for high performance contouring of complex surfaces, and can be used for ramping, plunging and profile milling in stainless steels, steels and cast irons.
For superior performance and extended tool live they are manufactured from premium carbide, and have an aluminium titanium nitride coating which prevents workpiece material from sticking to the cutting edges of the tool so you get clean, accurate results.
S238 4-flute ball nose milling cutters come with an extra long shank for good reach and high rigidity for profile milling
