Dormer S53112.0 6706483 Ball-Nosed End Mill 12.00 mm
MODEL 6706483
$189.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

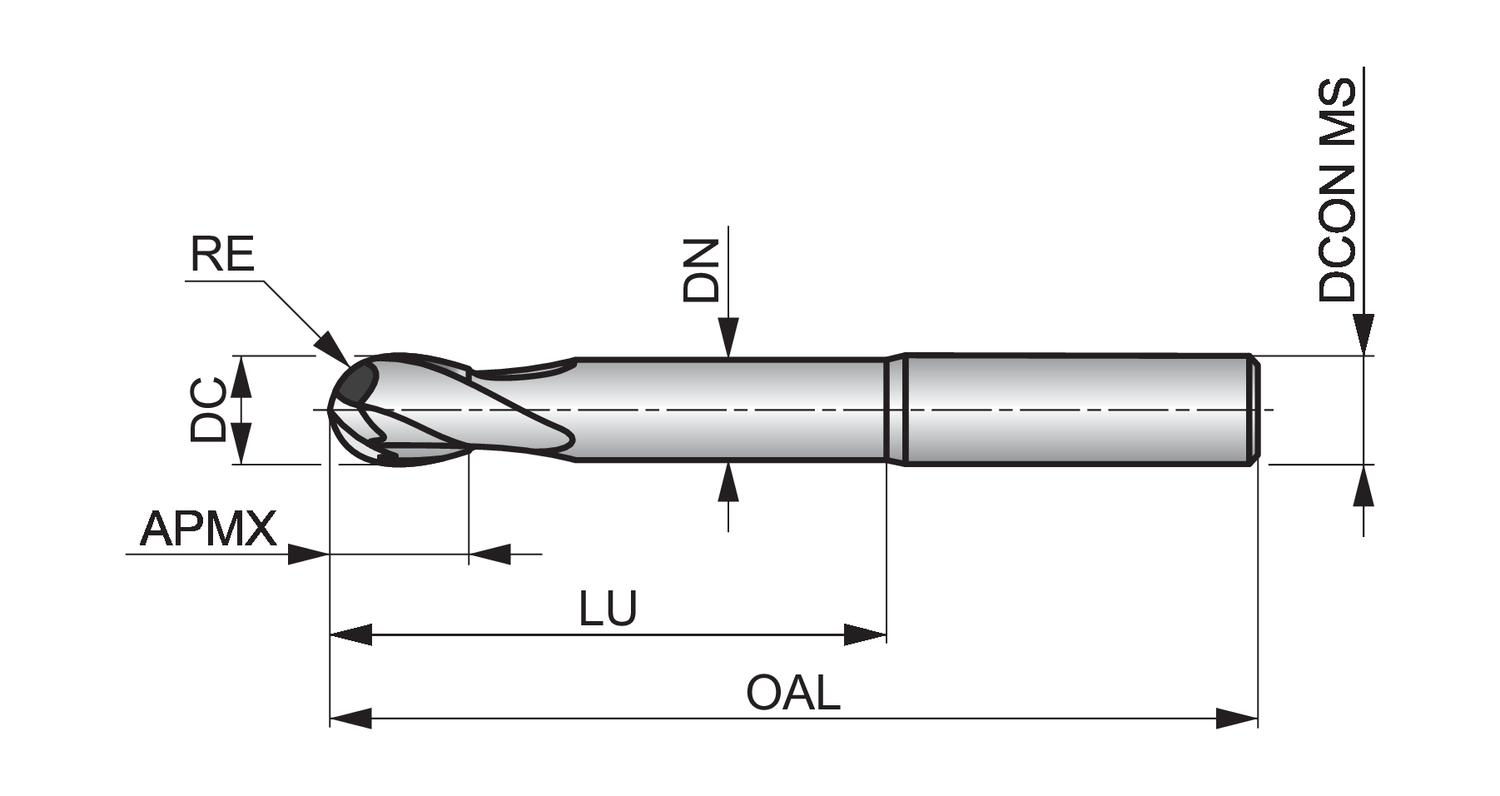

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Corner radius - inch (RE)
0.2362
Corner radius - millimeter (RE)
6
Cut length
Extra short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
46706483
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
H - Hardened materials
MID number
6706483
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4331
Neck diameter - millimeter (DN)
11
Ordering code ANSI
S53112.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
60
S531 2-flute milling cutters from Dormer come with ball nose geometry for high performance contouring of complex surfaces, and a long reach 2-flute design, providing high rigidity for increased strength and reduced vibration in areas which are difficult to reach.
They have a titanium silicon nitride coating which increases the life of the tools and improves performance milling difficult to machine materials.
S531 ball nose milling cutters are specifically made for high speed machining in hardened tool steels up to 63HRC and are manufactured from premium carbide for great performance
