Dormer S5313.0XD3 6706474 Ball-Nosed End Mill 3.00 mm x 3.0 mm
MODEL 6706474
$66.98 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

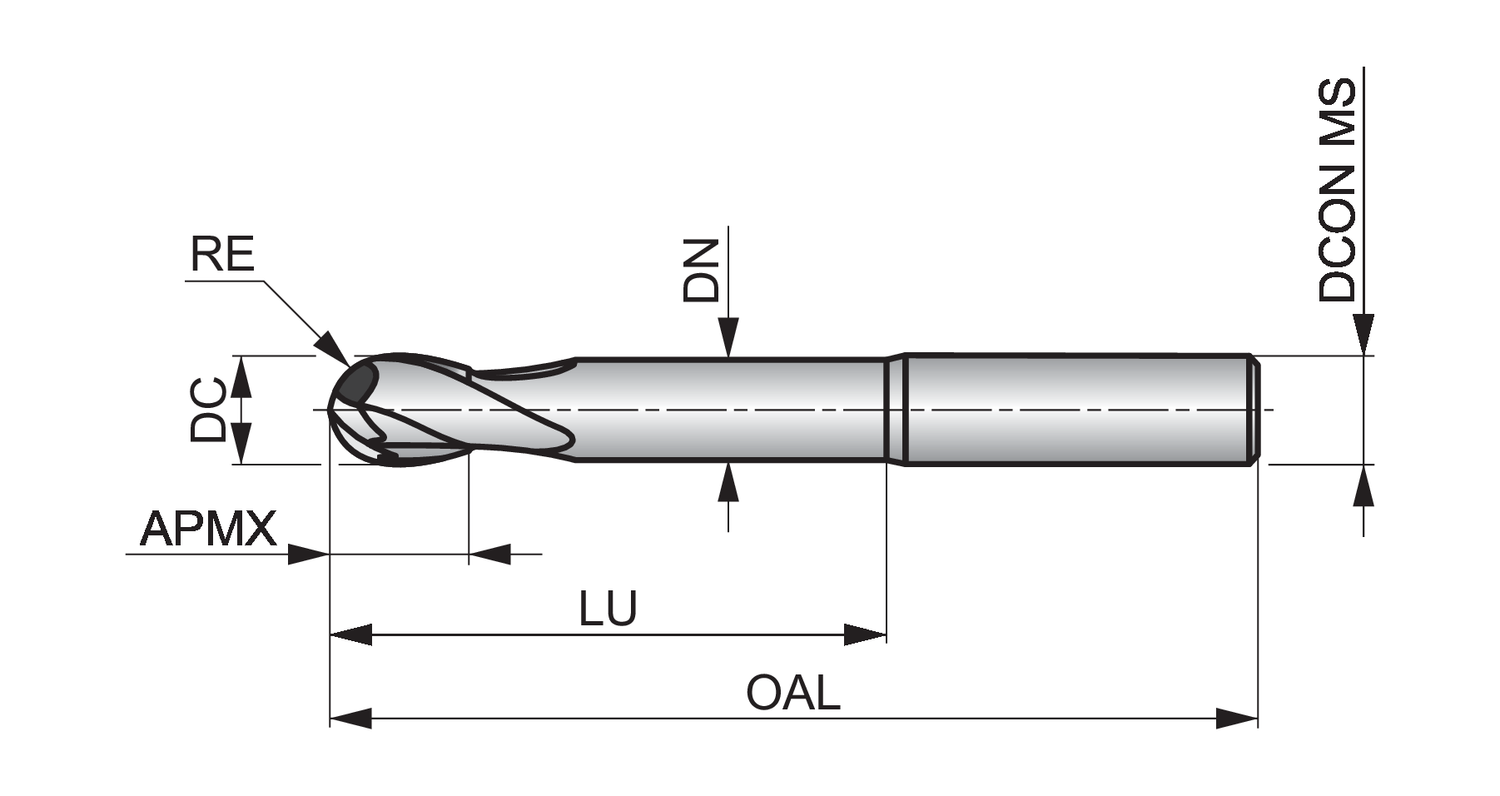

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Corner radius - inch (RE)
0.0591
Corner radius - millimeter (RE)
1.5
Cut length
Extra short
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.1969
Depth of cut maximum - millimeter (APMX)
5
EDP number
46706474
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
H - Hardened materials
MID number
6706474
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.1102
Neck diameter - millimeter (DN)
2.8
Ordering code ANSI
S5313.0XD3
Overall length - inch (OAL)
2.3622
Overall length - millimeter (OAL)
60
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
21
S531 2-flute milling cutters from Dormer come with ball nose geometry for high performance contouring of complex surfaces, and a long reach 2-flute design, providing high rigidity for increased strength and reduced vibration in areas which are difficult to reach.
They have a titanium silicon nitride coating which increases the life of the tools and improves performance milling difficult to machine materials.
S531 ball nose milling cutters are specifically made for high speed machining in hardened tool steels up to 63HRC and are manufactured from premium carbide for great performance
