Dormer S53410.0 6706580 Ball-Nosed End Mill 10.00 mm
MODEL 6706580
$140.43 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

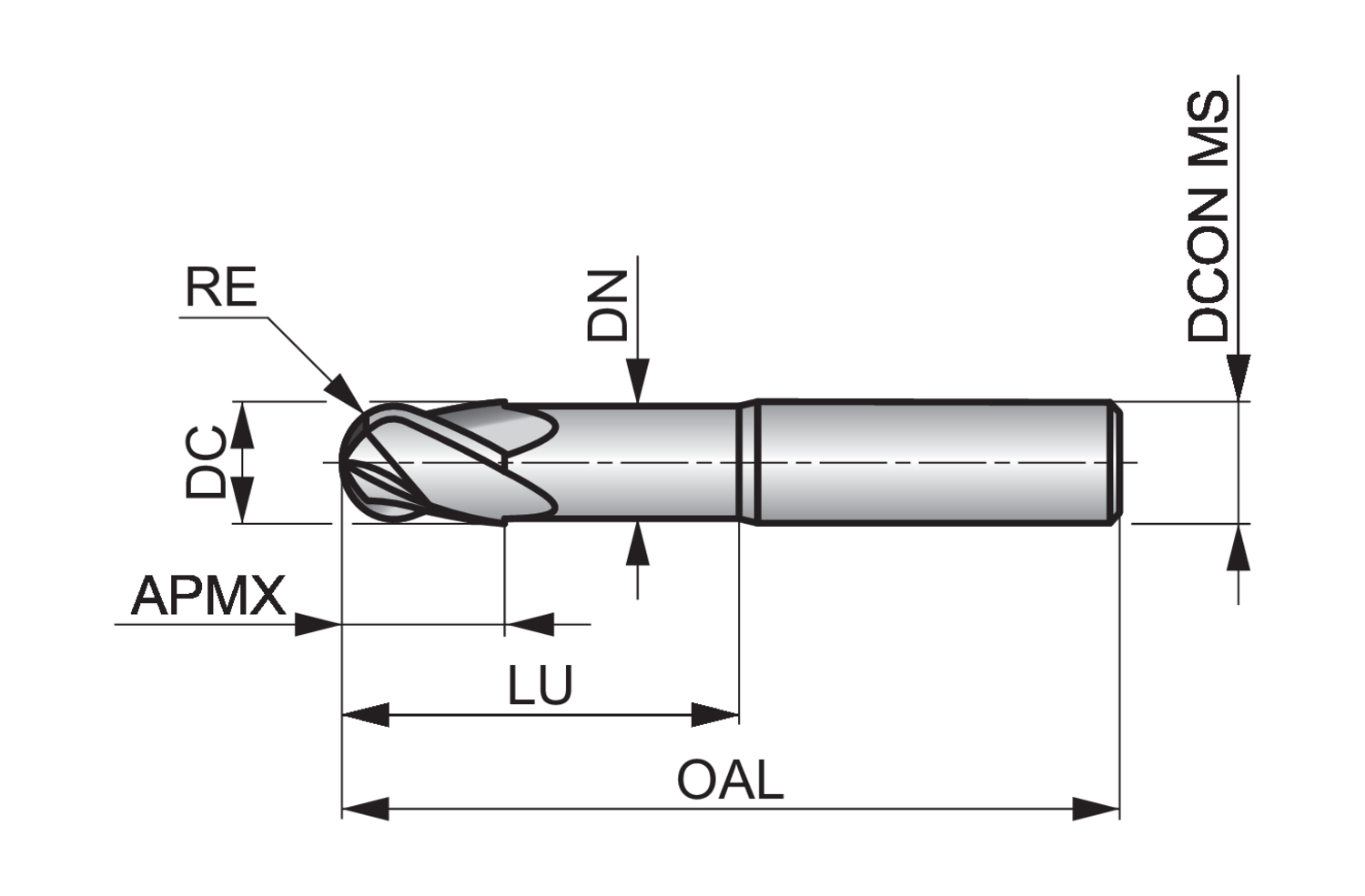

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner radius - inch (RE)
0.1969
Corner radius - millimeter (RE)
5
Cut length
Extra short
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.5512
Depth of cut maximum - millimeter (APMX)
14
EDP number
46706580
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
H - Hardened materials
MID number
6706580
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.3622
Neck diameter - millimeter (DN)
9.2
Ordering code ANSI
S53410.0
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
32
Part of Dormer’s range of carbide milling cutters, S534 slot drills have ball nose geometry designed for high performance contouring of complex surfaces and are specifically for high speed machining in hardened tool steels up to 63HRC.
The short, 4-flute design with high rigidity, gives increased strength and reduces vibration.
Manufactured from premium carbide, S534 ball nose slot drills will give you superior performance and longer tool life and the titanium silicon nitride coating will further extend tool life and improve performance when milling difficult to machine materials
