Image for Illustration purposes only. Actual product may vary
Dormer S53516.0 6706574 Ball-Nosed End Mill 16.00 mm
MODEL 6706574
$352.53 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

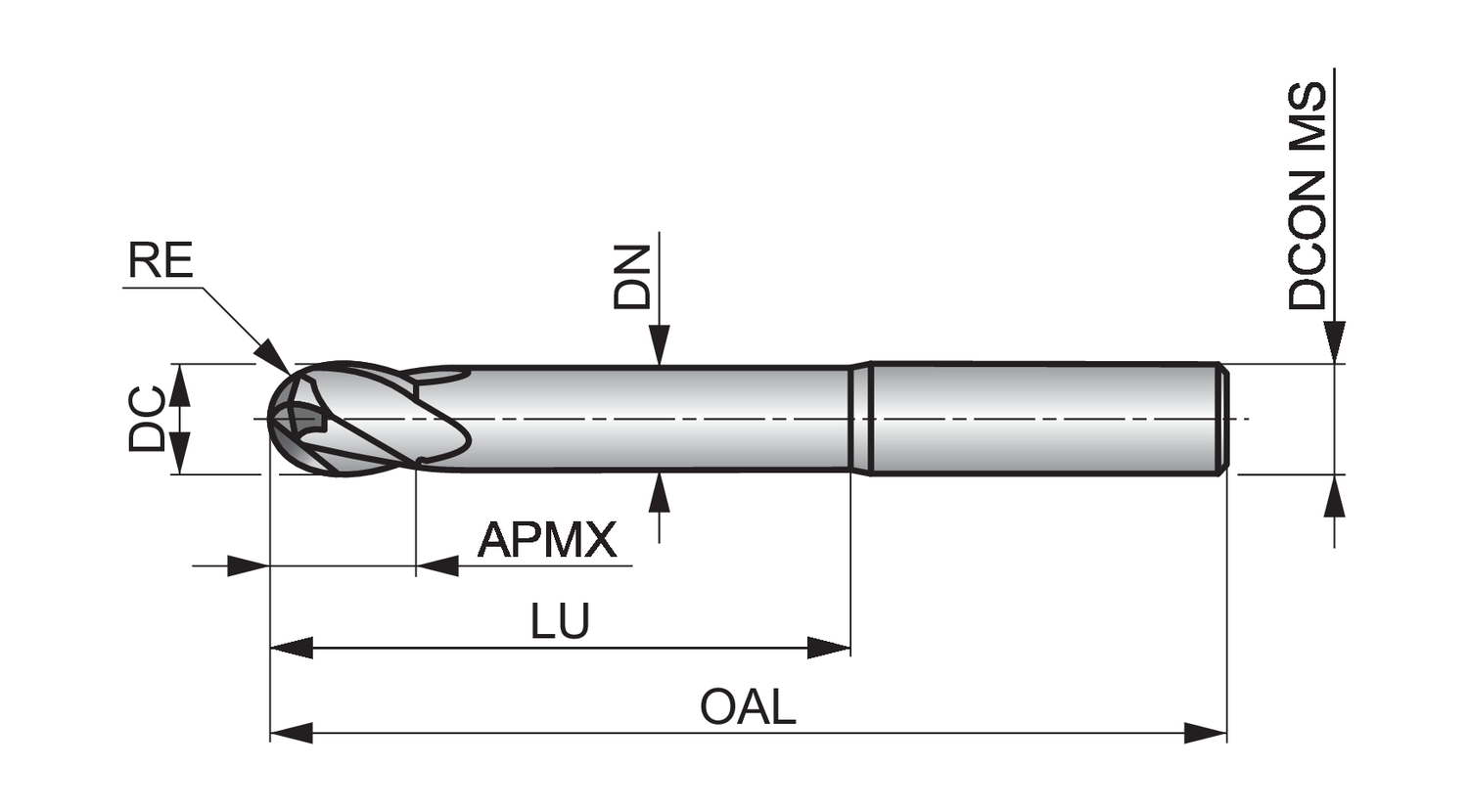

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner radius - inch (RE)
0.315
Corner radius - millimeter (RE)
8
Cut length
Extra short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.2598
Depth of cut maximum - millimeter (APMX)
32
EDP number
46706574
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
H - Hardened materials
MID number
6706574
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.5906
Neck diameter - millimeter (DN)
15
Ordering code ANSI
S53516.0
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
80
S535 4-flute milling cutters are intended specifically for high speed machining in hardened tool steels up to 63HRC.
The ball nose geometry means they are great for high performance contouring of complex surfaces and the long reach 4-flute design provides good rigidity for increased strength and reduced vibration in difficult to reach areas.
S535 ball nose slot drills have a titanium silicon nitride coating which increases service life and improves performance when milling difficult to machine materials whilst the premium carbide used in manufacture further extends tool life and means the tools will provide superior performance
