Dormer S6291.5 8030277 Ball-Nosed End Mill
MODEL 8030277
$41.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

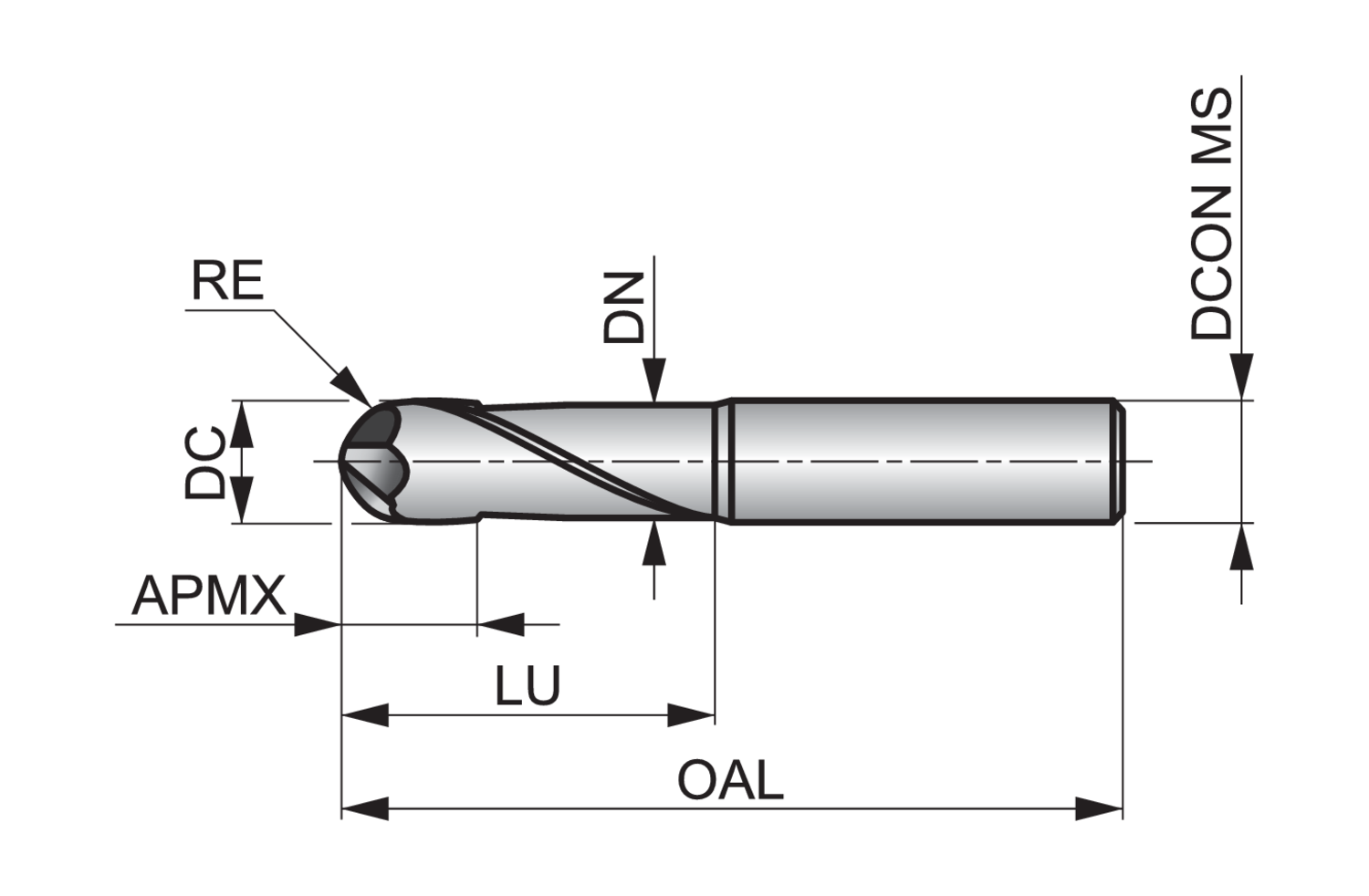

Connection diameter - inch (DCON MS)
0.1575
Connection diameter - millimeter (DCON MS)
4
Coolant supply property (CSP)
0
Corner radius - inch (RE)
0.0295
Corner radius - millimeter (RE)
0.75
Cut length
Extra short
Cutting diameter - inch (DC)
0.0591
Cutting diameter - millimeter (DC)
1.5
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
0
Depth of cut maximum - inch (APMX)
0.0472
Depth of cut maximum - millimeter (APMX)
1.2
EDP number
8030277
Flute count (NOF)
2
Flute helix angle (FHA)
30
Flute helix unequal
0
Material
HM
Material application
N - Non-ferrous metals
MID number
8030277
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Neck diameter - inch (DN)
0.0551
Neck diameter - millimeter (DN)
1.4
Ordering code ANSI
S6291.5
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Radial rake angle (GAMF)
11
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
12
Extra short series Ball-nose end mill with 2 flutes, diameter 1.5mm with 1.2mm length of cut, 50mm overall length, 12mm reach with neck relief and 0.75mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 30° helix and 11° rake angle for copy milling in non-ferrous metals
