Dormer S6378.0 6706877 End Mill 8.00 mm
MODEL 6706877
$67.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Polished

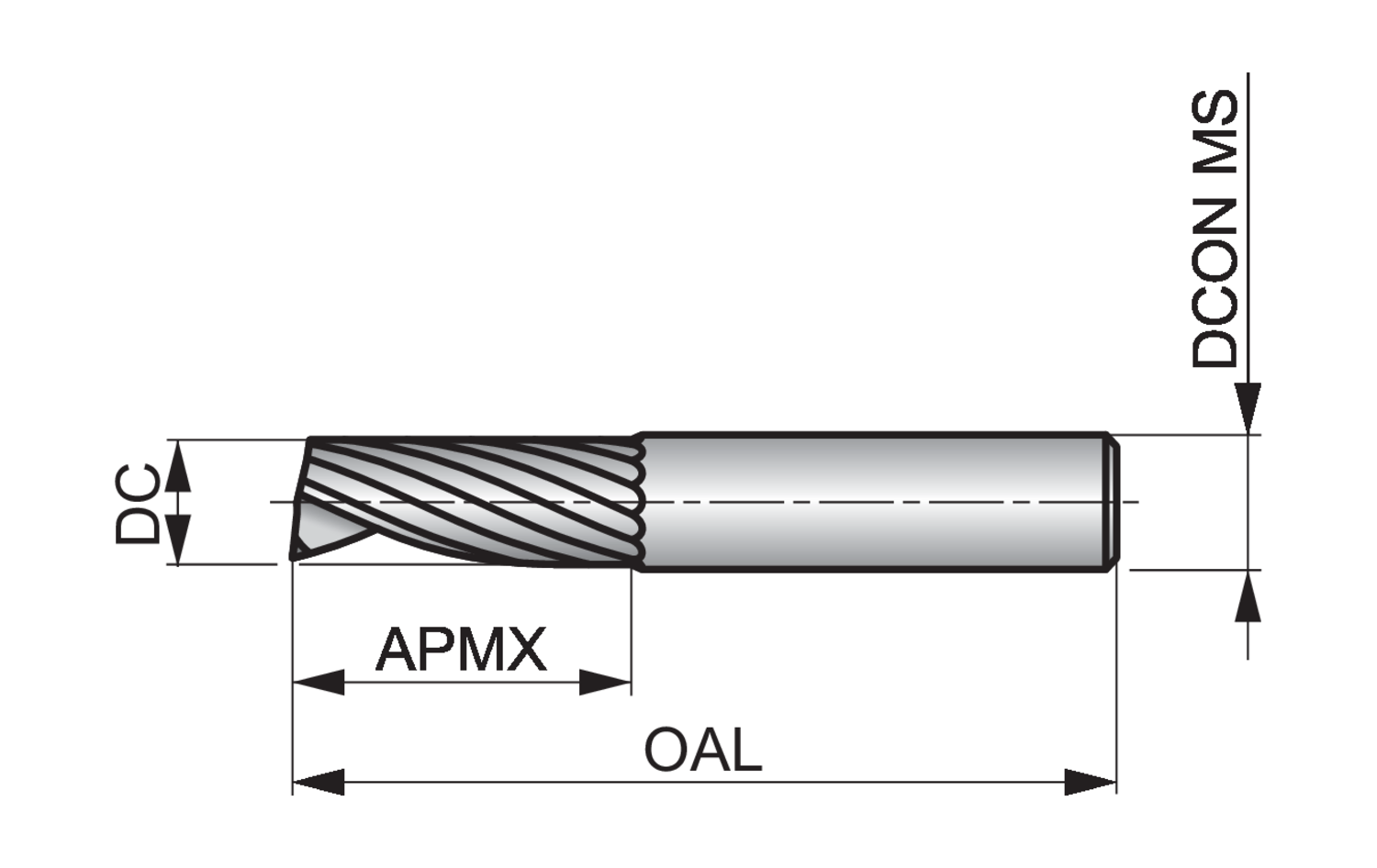

Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Cut length
Short
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
46706877
Flute count (NOF)
1
Flute helix angle (FHA)
25
Material
HM
Material application
N - Non-ferrous metals
MID number
6706877
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S6378.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
1
Radial rake angle (GAMF)
20
Shank
Cylindrical shank DIN 6535 HA
Dormer’s S637 single flute slot drill is designed specifically for high speed routing in thin wall, non-ferrous materials such as aluminium, with the single flute design giving you high performance when slotting and routing and the high hook geometry ensuring high performance machining in soft materials.
S639 milling cutters are manufactured from premium carbide for longer tool life and better performance, and come with a bright polished finish, which prevents workpiece material from sticking to the cutting edges of the tool for a cleaner, more accurate result
