Image for Illustration purposes only. Actual product may vary
Dormer S71320.0 7002461 End Mill 20.00 mm
MODEL 7002461
$297.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

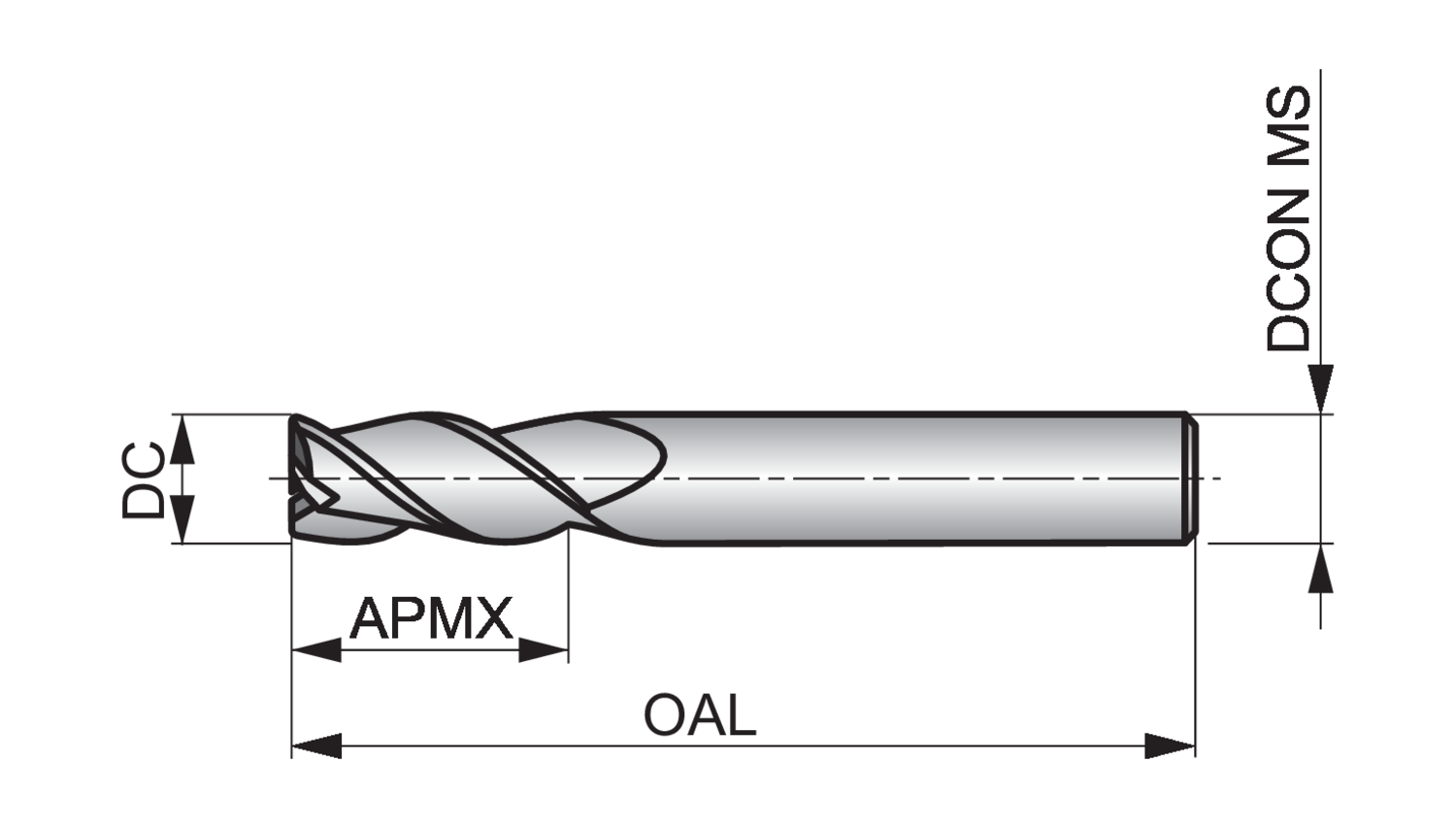

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
47002461
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7002461
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S71320.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S713 3-flute milling cutters from Dormer are manufactured from premium carbide to give great performance and longer tool life and have an aluminium chrome nitride coating for improved performance when milling difficult to machine materials and further improving tool life.
They come with a 40 degree helix which is great for high performance slotting and profiling on CNC machines, and the medium flute length gives you the extra rigidity needed when milling standard slots.
S713 3-flute cutters are highly versatile and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron
