Image for Illustration purposes only. Actual product may vary
Dormer S71414.0 6706623 End Mill 14.00 mm
MODEL 6706623
$161.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

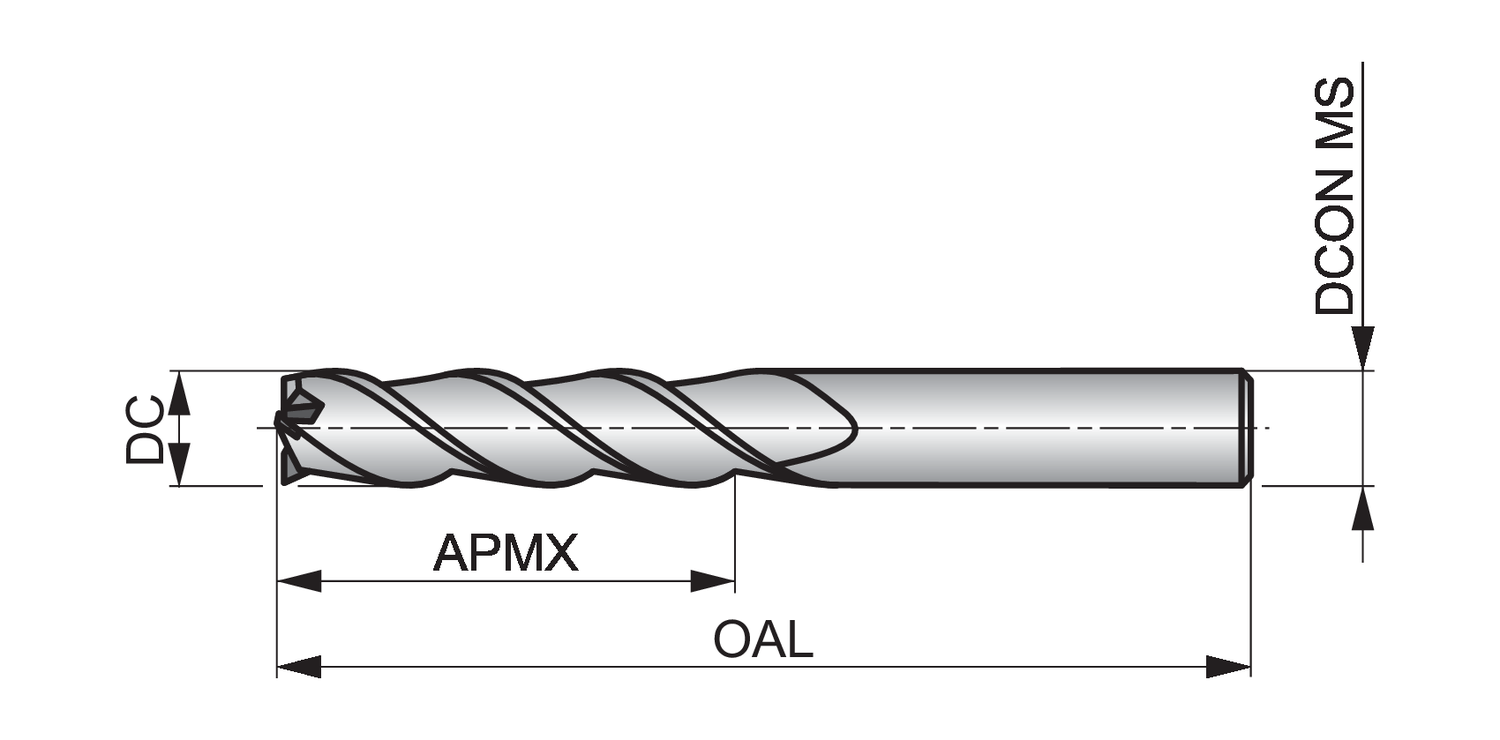

Connection diameter - inch (DCON MS)
0.5512
Connection diameter - millimeter (DCON MS)
14
Cut length
Long
Cutting diameter - inch (DC)
0.5512
Cutting diameter - millimeter (DC)
14
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
2.2441
Depth of cut maximum - millimeter (APMX)
57
EDP number
46706623
Flute count (NOF)
3
Flute helix angle (FHA)
40
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706623
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S71414.0
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S714 3-flute slot drills have a 40 degree helix for high performance slotting and profiling on CNC machines.
They are manufactured from premium carbide so you can expect superior performance and extended tool life, and have an aluminium chrome nitride coating which further increases the life of the cutter and improves performance when milling materials which are difficult to machine.
The long series flute design provides high rigidity for profile milling deep walls, and the tools are suitable for plunging, ramping and profile milling in steels, stainless steels and cast irons
