Dormer S7403.0 6706895 Chamfering End Mill - 90° 3.00 mm
MODEL 6706895
$44.71 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

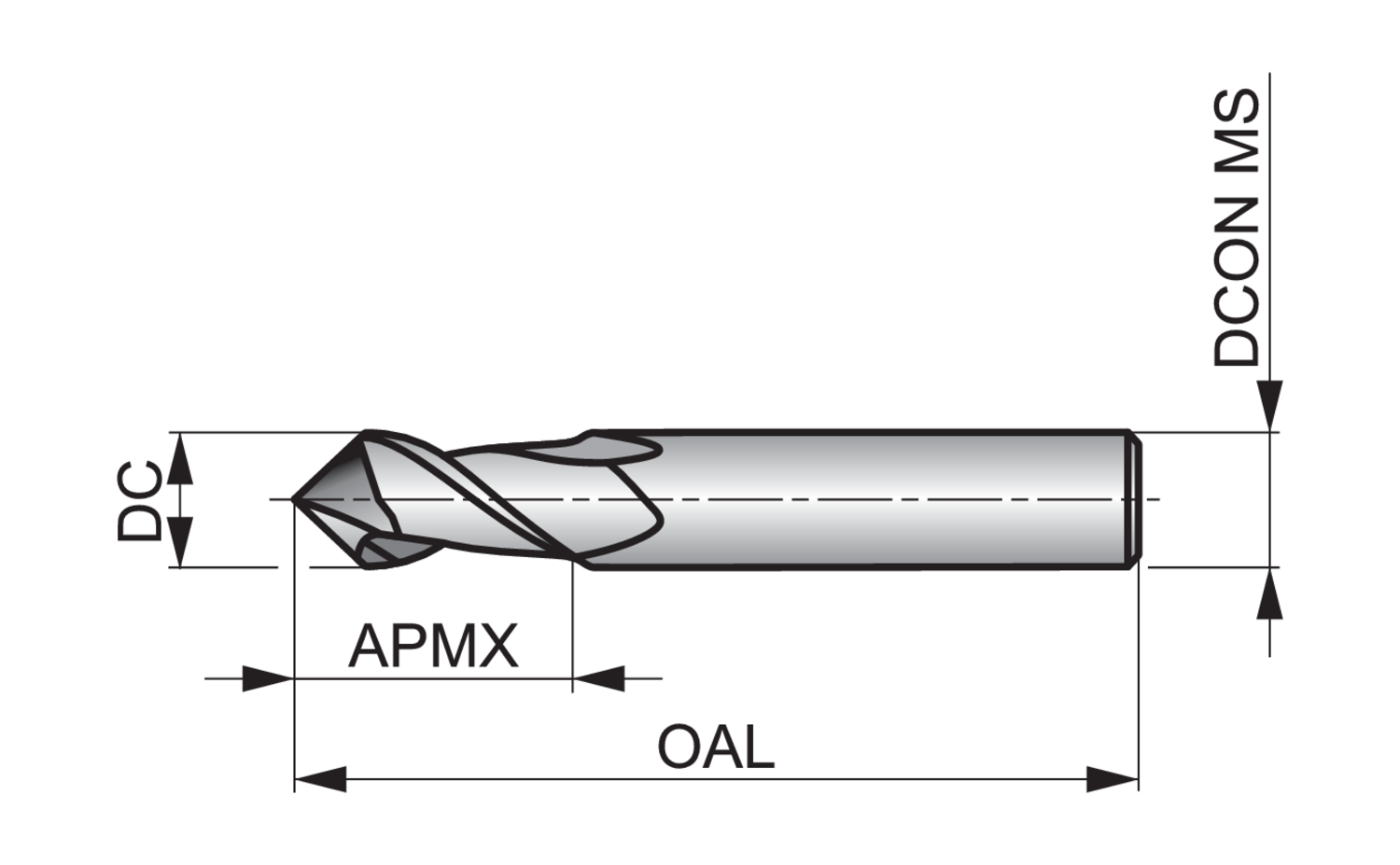

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.3543
Depth of cut maximum - millimeter (APMX)
9
EDP number
46706895
Flute count (NOF)
2
Flute helix angle (FHA)
40
Material
HM
MID number
6706895
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S7403.0
Overall length - inch (OAL)
1.5748
Overall length - millimeter (OAL)
40
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
Tool cutting edge angle (KAPR)
90
Dormer’s range of carbide milling cutters is further extended by the addition of S740 2-flute cutters.
These are manufactured from premium carbide which will give great performance and extended tool life.
The aluminium titanium nitride coating further extends tool life and enhances performance when milling difficult to machine materials.
The short, 2-flute design means the tools have good rigidity which increases strength and reduces vibration.
With a 90 degree point designed for high performance chamfer milling on CNC machines, S740 cutters are very versatile and are suitable for contour milling in steels, cats iron and stainless steels
