Dormer S76620.0 6707014 End Mill 20.00 mm
MODEL 6707014
$415.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20

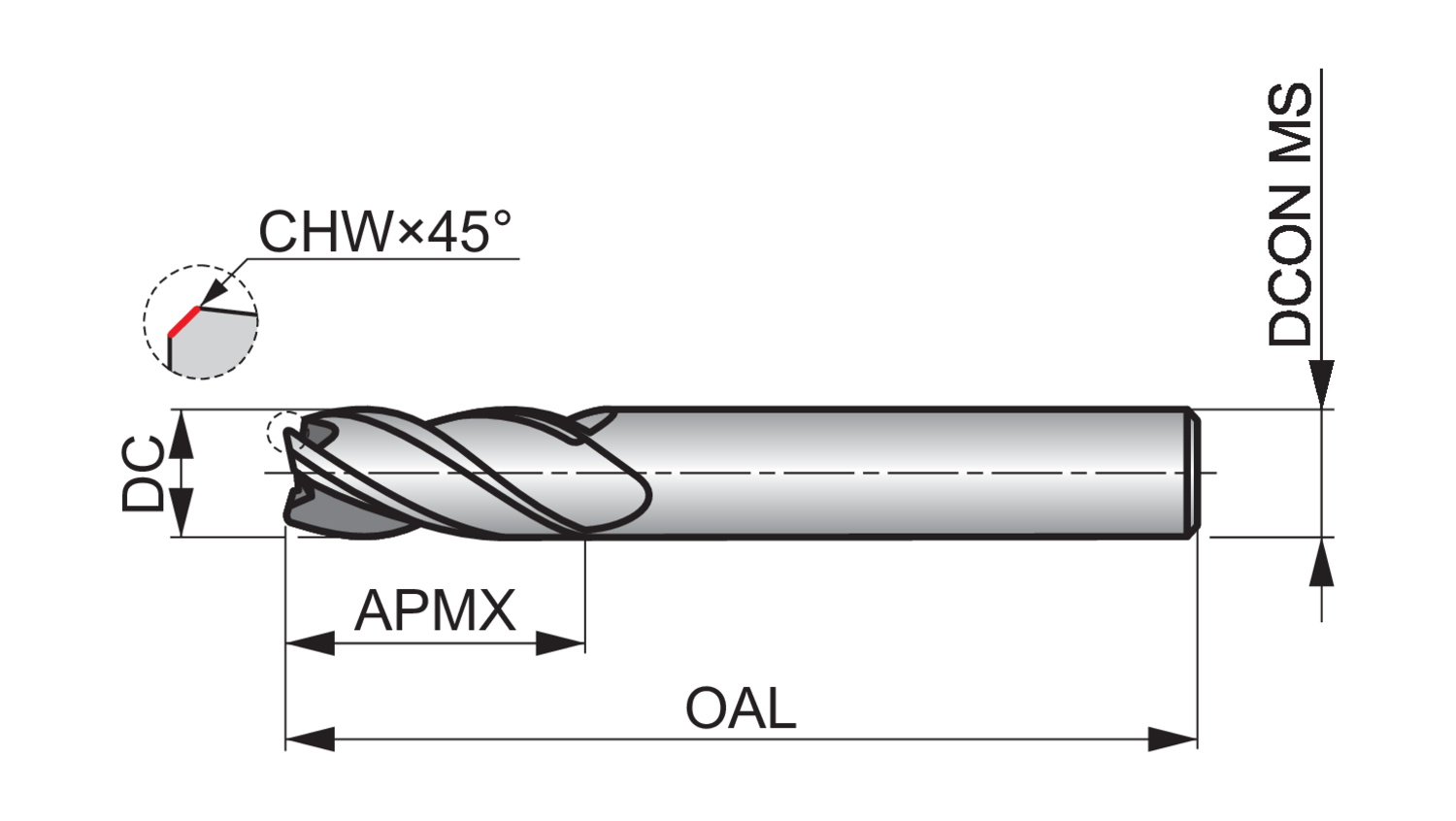

Corner chamfer width - millimeter (CHW)
0.4
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
46707014
Flute count (NOF)
4
Flute helix unequal
1
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6707014
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S76620.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 6535 HA
S766 4-flute milling cutters are manufactured from premium carbide and have a titanium silicon nitride coating for superior performance, extended tool life and great results when milling difficult to machine materials.
They are suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron.
High rigidity for standard profile milling is provided by the medium length flute, whilst the unequal helix and unequal flute divide on S766 cutters is designed to reduce vibration and improve surface finish when the tools are used in CNC machines
