Dormer S803HA4.5 5983410 Slot Drill N 6527 K 4.50 mm
MODEL 5983410
$49.47 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 6527 K
Coating
AlCrN
Coating property (CTP)
1

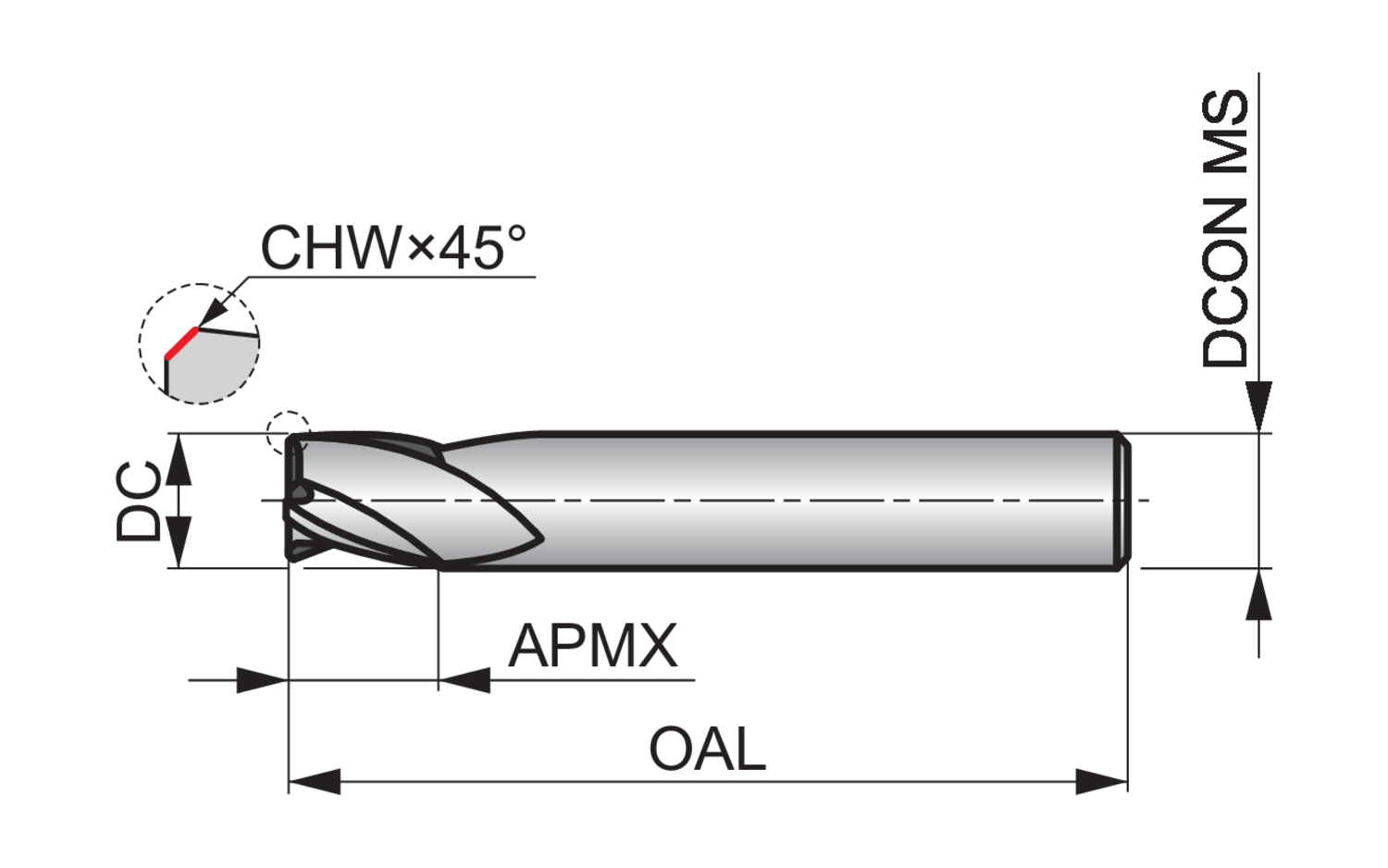

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.13
Cut length
Extra short
Cutting diameter - inch (DC)
0.1772
Cutting diameter - millimeter (DC)
4.5
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.1969
Depth of cut maximum - millimeter (APMX)
5
EDP number
641088
Flute count (NOF)
3
Flute helix angle (FHA)
28
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5983410
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S803HA4.5
Overall length - inch (OAL)
2.126
Overall length - millimeter (OAL)
54
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S803HA 3-flute milling cutters are suitable for machining stainless steels, cast iron, steels and non-ferrous materials and can be used for plunging, ramping and profile milling, making them a very versatile choice.
They are manufactured from premium carbide for longer tool life and superior performance, and have an Alcrona coating which further increases tool life and gives improved performance when milling difficult to machine materials.
Capable of milling standard keyway slots to P9 tolerance, S803HA cutters have a short flute for extra rigidity when milling shallow slots
