Dormer S82220.0 7106968 Slot Drill N Standard 20.00 mm
MODEL 7106968
$307.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

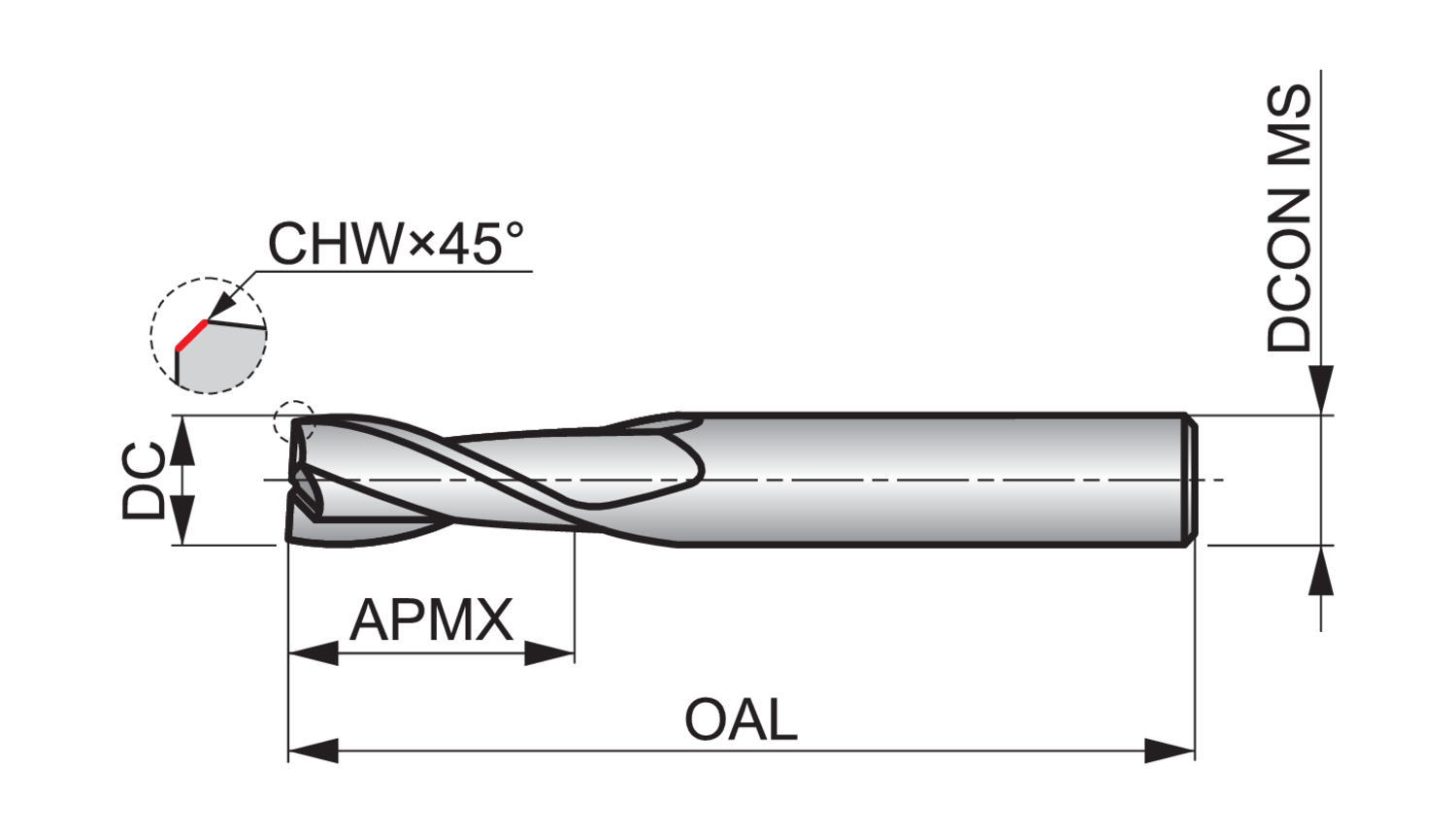

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Corner chamfer width - millimeter (CHW)
0.3
Cut length
Medium
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
47106968
Flute count (NOF)
2
Flute helix angle (FHA)
28
Material
HM
MID number
7106968
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S82220.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
9
Shank
Cylindrical shank DIN 6535 HA
S822 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating.
These two features greatly improve tool life and provide superior performance, particularly when milling difficult to machine materials.
With an accurate diameter and longer length flute, the tools are very rigid and can be used to mill standard keyway slots to a P9 tolerance.
S822 2-flute end mills are very versatile and suitable for milling steels, stainless steels, cast iron and non-ferrous materials and can be used for plunging, ramping and profile milling
