Dormer S9034.0 5983099 square end mill, 4.00mm cutting diameter, 3-flute, solid carbide (HM), 30° helix angle, 12° radial rake, 14mm max depth of cut, 4mm shank diameter. For cast iron, non-ferrous metals, steel, cast steel, and high-temperature alloys. DORMER standard.
MODEL 5983099
$30.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

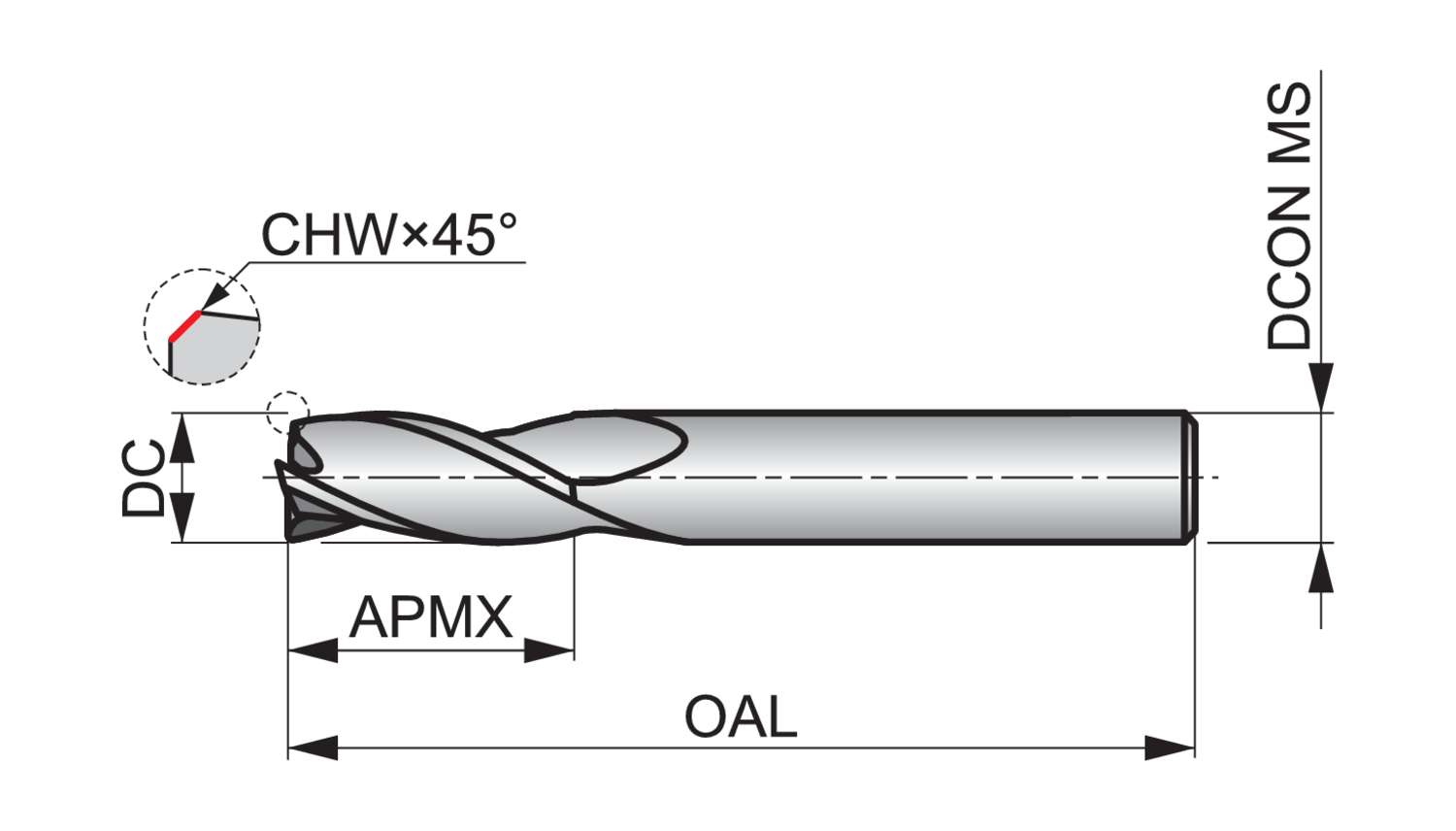

Connection diameter - inch (DCON MS)
0.1575
Connection diameter - millimeter (DCON MS)
4
Corner chamfer width - millimeter (CHW)
0.08
Cut length
Medium
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
h10
Depth of cut maximum - inch (APMX)
0.5512
Depth of cut maximum - millimeter (APMX)
14
EDP number
133026
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5983099
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S9034.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 6535 HA
S903 3-flute slot drills are manufactured from premium carbide material for superior performance and extended tool life.
They have a medium length flute design which makes the tool more rigid and suitable for profiling and milling standard slots.
The bright finish ensures a cleaner, more accurate result by stopping workpiece material from sticking to the cutting edges of the tool.
Suitable for milling steels, cast iron and stainless steels, the tools can be used for plunging, ramping and profile milling.
S903 3-flute slot drills are an economical range of cutters and a smart choice for general milling of slots on most types of machine
